Full specifications (PDF)
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Response Time:
8 ms
Mount Type:
Desk Mountable

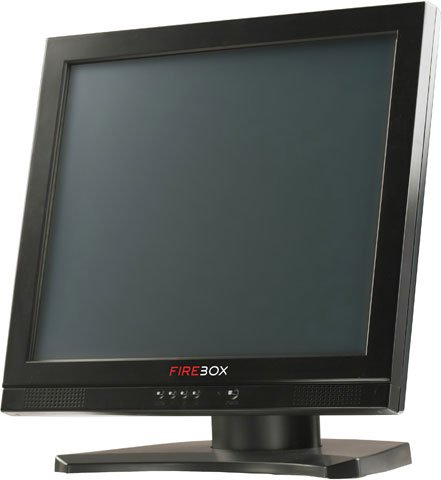

Firebox S7510 Touchscreen Model Overview
An industry leader, the S7500 Series delivers an attractive, slim, space saving design with the addition of stereo speakers to interface with all multi-media applications. The S7500 Series incorporates a bright, high contrast ratio 17" TFT LCD with wide viewing angels to improve image quality at various viewing angles. Available in either resistive or capacitive touch sensors which interface to serial, USB or dual touch controllers. The ability to easily integrate an MSR or Biometric scanner coupled with stability of our mounting base makes this touch monitor a winner no matter the application.
Technical Information
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
220 V AC
Physical Characteristics
Color:
Black
Height:
12.2"
Width:
15.8"
Depth:
7.3"
Weight (Approximate):
19.90 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
TCO '99
Item Numbers
UNSPSC:
43211903
