Full specifications (PDF)
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
12 ms
Mount Type:
Desk Mountable

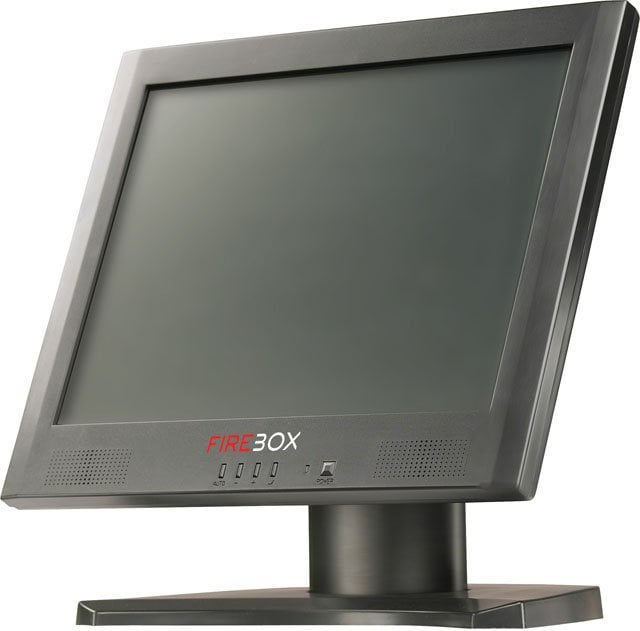

Firebox S5510 Touchscreen Model Overview
Our premium model, the S5510 Series delivers an attractive, slim, space saving design with the addition of stereo speakers to interface with all multi-media applications. A feature rich model, the S5510 Series incorporates a bright, high contrast ratio 15 TFT LCD with wide vewing angels to improve image quality at various viewing angles. Available in either resistive or capacitive touch sensors which interface to serial, USB or dual touch controllers. The ability to easily integrate an MSR or Biometric scanner coupled with stability of our mounting base makes this touch monitor a winner no matter the application.
Technical Information
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.7 Million Colors
Contrast Ratio:
450:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
220 V AC
Physical Characteristics
Color:
Black
Height:
14.3"
Width:
13.5"
Depth:
7.3"
Weight (Approximate):
15.80 lb
Miscellaneous
Additional Information:
Plug and Play
Environmentally Friendly:
Yes
Environmental Certification:
TCO '99
Item Numbers
UNSPSC:
43211903
Questions? Get help from
a POS Expert!
a POS Expert!
The Firebox U09-T150DR-SB Touchscreen is also known as
U09-T150DR-SB
