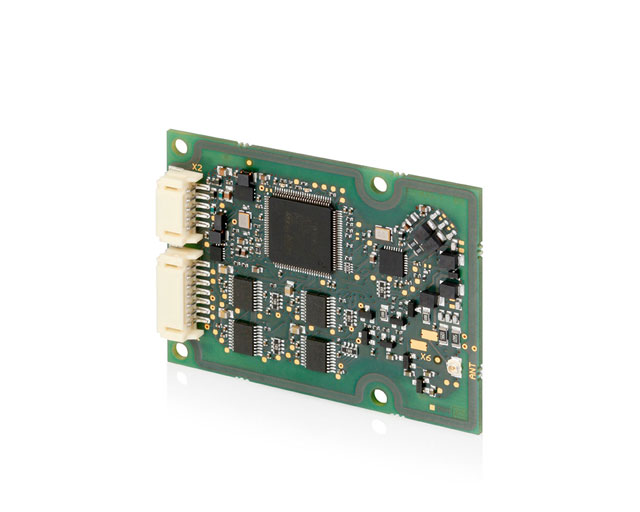

FEIG 4606.000.01 RFID Reader

The ID CPR74 RFID Reader Module offers high-end performance with versatile applications in various environments. Its compact design accommodates four SAM sockets and supports a wide range of transponder protocols, including ISO 14443, ISO 15693, and NFC. This versatile reader operates seamlessly with both internal and external antennas, making it perfect for integration in devices like vending machines and onboard computers. Enhanced security features, such as SoftCrypto and SAMCrypto, simplify access to encrypted data, ensuring safe and efficient operations in any setting.

Key Features

• Four SAM sockets: EMVCo Contact Level 1 tested.
• Compact design: Easy integration with RS232-TTL and USB interfaces.
• Integrated antenna multiplexer: Supports operation with internal and external antennas.
• Variable Multitag Read/Write: Supports multiple transponder types and NFC applications.
• High reliability: 500,000 hours MTBF.

Specifications

• Dimensions: 50 mm x 68 mm x 8 mm (without SAM sockets)
  50 mm x 68 mm x 10 mm (with 4 SAM sockets)
• Weight: approx. 20 g
• Temperature range: -25 °C to +70 °C operating, -40°C to +85°C storage
• Supply voltage: 5 V DC ±5%
• Power consumption: <500 mA (without SAMs)
• Interfaces:
  RS232-TTL (up to 230,400 Baud), USB Full-Speed (12 MBit/s)
• Supported transponders:
  mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, Jewel TM, FeliCa, NTAG, mifare/NTAG Ev2 Crypto
