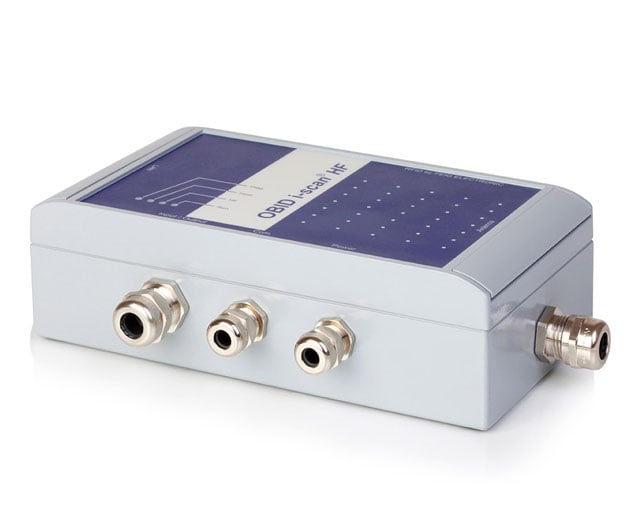

FEIG 4128.001.00 RFID Reader

The HF Long Range Reader ID ISC.LR(M)1002-E is a powerful and versatile solution for various applications in retail, industry, and logistics. With an optimal cost-performance ratio, it efficiently identifies transponders using ISO 15693 and HF Gen 2 at an operating frequency of 13.56 MHz. Perfectly suited for environments with a small to medium number of tags, this reliable device excels in settings such as conveyor belts, sorting systems, and production lines. Its adjustable output power, along with multiple interfaces, ensures a seamless integration into existing systems, making it a valuable addition to your operations.

Key features:

• Powerful reader for diverse applications
• Adjustable output power for enhanced performance
• International certifications ensure compliance and reliability
• Multiple interfaces including Ethernet, USB, and RS232
• 4 different reader modes for tailored operation
• Compact design suitable for various settings

Specifications:

• Dimensions (wxhxd): 160 mm x 120 mm x 35 mm (ID ISC.LRM1002-E), 255 mm x 135 mm x 65 mm (ID ISC.LR1002-E)
• Weight: approx. 350 g (ID ISC.LRM1002-E), approx. 1,100 g (ID ISC.LR1002-E)
• Housing: Aluminium, grey
• Protection class: IP54
• Power supply: 24 V DC +15%
• Power consumption: max. 16 VA
• Operating frequency: 13.56 MHz
• Transmitting power: 1 W to 5 W (adjustable)
• Antenna connector: 1x SMA connector (50 Ohm)
• Output: 1 Relay (24 V, 1 A), 1 Optocoupler (24 V DC)
• Interfaces: Ethernet (TCP/IP), RS232
• Supported transponders: ISO 18000-3 MODE 1 & 3
• Operating temperature range: -25°C to +55°C
• Storage temperature range: -25°C to +85°C
• Relative humidity: 5% to 80% (non-condensing)
• Standard conformity: EN 300 330, FCC 47 CFR Part 15, IC RSS-GEN, RSS-210
