FEIG 3779.000.00 RFID Reader

The ID MRMU102-A UHF Mid Range Reader Module provides exceptional performance for various industrial applications, including Industry 4.0, production control, and process optimization. This compact module features a read range of up to 4 meters, making it ideal for environments requiring reliable communication with both near-field and far-field transponders. With a flexible integration capability through USB and RS232 interfaces, it easily adapts to existing systems, ensuring seamless operations across different settings.

• Read Range: Up to 4 m*

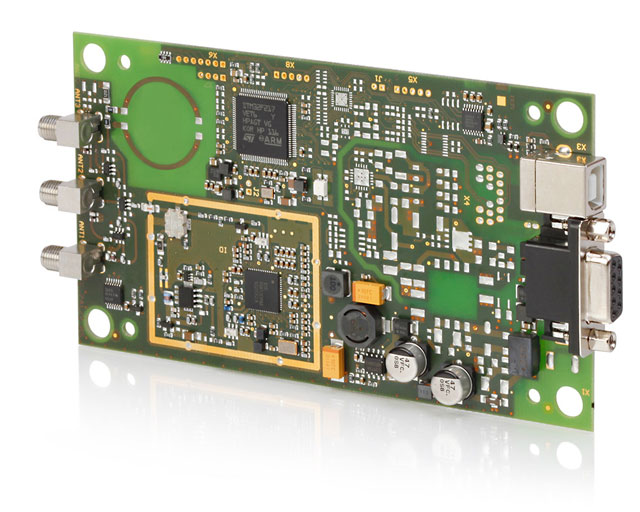

• Compact Design: Single PCB board with mounting holes
• Multiple Outputs: 3 switchable SMA antenna outputs plus 1 integrated antenna
• Configurable Output Power: Adjustable between 50 mW and 500 mW
• Versatile Interfaces: RS232 and USB for easy integration
• International Certifications: Complies with various global standards

• Dimensions: 137 mm x 77 mm x 17 mm
• Power Supply: 12 V DC to 24 V DC
• Power Consumption: Max. 7 W
• Operating Frequency: 865 MHz to 868 MHz (Europe), 902 MHz to 928 MHz (FCC)
• Output Power: 50 mW to 500 mW, configurable
• Antenna Connections: 3x external SMA, 1x integrated
• Supported Transponders: EPC Class1 Gen2, ISO 18000-6C
• Temperature Range: Operation: -25 °C to +55 °C; Storage: -25 °C to +85 °C
• Humidity: 5% to 95% (non-condensing)
• Vibration & Shock: Complies with EN 60068 standards
