FEIG 3777.000.00 RFID Reader

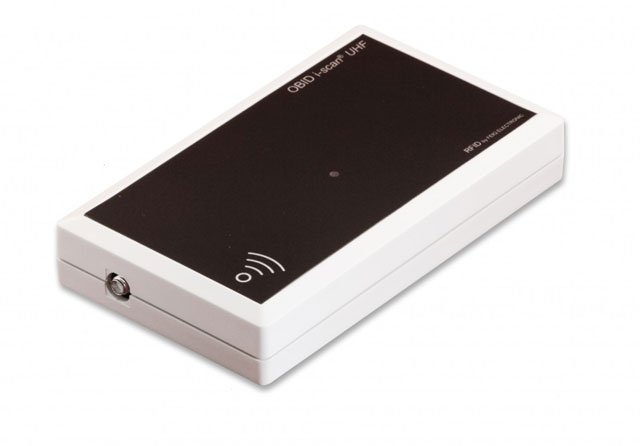

The OBID i-scan® UHF Mid Range Reader ID ISC.MRU 102 is the perfect solution for applications requiring efficient wireless communication with transponders. With a remarkable read range of up to 4 meters when paired with the compatible UHF antenna, this compact reader delivers outstanding performance in various environments. Available in Ethernet and USB versions, it boasts flexible integration options and is ideal for both industry and desktop applications. Enhanced by an integrated antenna and configurable output power, this device guarantees reliable operation for your RFID needs.

• Read Range: up to 4 m*
• Compact Dimensions: 145 mm x 85 mm x 27 mm
• Integrated Antenna & Multiplexer: Flexible usage
• Connectors: SMA-Antenna Connector
• Output Power: Configurable from 50 mW to 500 mW
• Power over Ethernet: Available only with ID ISC.MRU 102-PoE
• International Certification: Complies with various standards

• Power Supply: 12 V DC to 24 V DC
• Power Consumption: Max. 7 W
• Operating Frequency: 860 MHz to 960 MHz
• Output Power: Max. 500 mW (configurable)
• Antenna Connector: 1 x SMA-Female, Integrated Antenna
• Interfaces: Ethernet (PoE), USB (Full Speed)
• Temperature Range: -25 °C to 55 °C (operating), -25 °C to 85 °C (storage)
• Humidity: 5% to 95% (non-condensing)
• Protocol Modes: ISO Host Mode, Buffered Read Mode
• MTBF: High reliability for continuous operations
