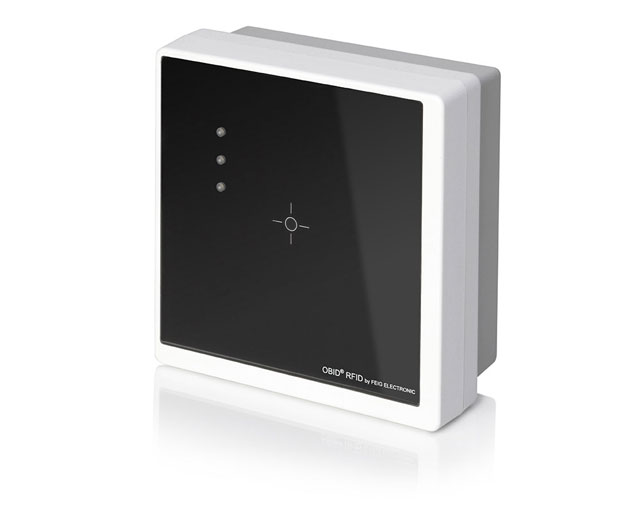

FEIG 3361.000.00 RFID Reader

The ID CPR50.10-E RFID card reader is designed for seamless integration into IP-based systems, making it ideal for access control and identity verification at self-service terminals. Its durable wall-mounted housing is suited for both indoor and outdoor use, with an IP54 protection rating ensuring reliable performance in various environments. Featuring a fast Ethernet interface with Power over Ethernet (PoE), the reader allows for easy setup and secure encrypted data transfer. It is compatible with ISO 14443 and 15693 transponders, as well as NFC devices, providing flexibility for diverse applications.
Key Features

• Wall mountable for easy installation
• Fast 10BASE-T/100BASE-TX Ethernet Interface
• Power over Ethernet (PoE) capability for reduced installation costs
• Supports encrypted data transfer using AES Algorithm
• Works in Polling Mode and Notification Mode
• IP54 rated for indoor and outdoor applications
• Optional external Relay for enhanced functionality

Specifications

• Dimensions: 84.2 mm x 84.2 mm x 22 mm (Card reader); 77.7 mm x 77.7 mm x 18 mm (Housing)
• Weight: Approx. 150 g
• Housing Material: Plastic ASA
• Protection Class: IP54
• Operating Frequency: 13.56 MHz
• Power Supply: Power over Ethernet (PoE); external supply 24 V to 48 V DC
• Supported Transponders: ISO 14443-A, ISO 14443-B, ISO 15693, NFC
• Reading Distance: Max. 7 cm
• Temperature Range: -20°C to +70°C (Operation); -40°C to +85°C (Storage)
• Memory: EEPROM for configuration data; 1 million write cycles
• Scope of Delivery: Card reader, wall-mounted housing, installation manual
