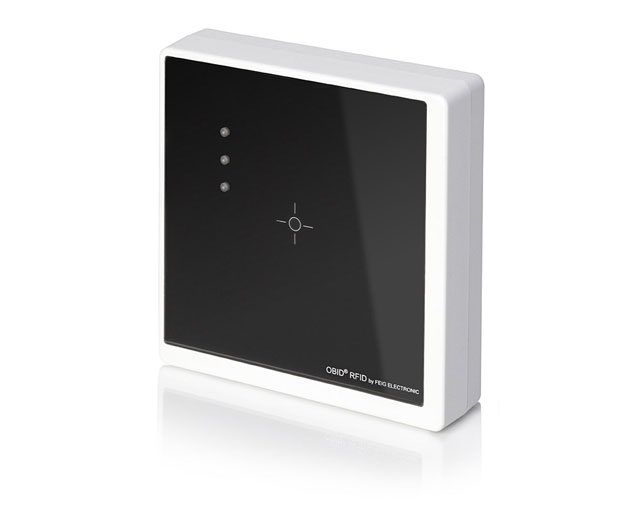

FEIG 2987.000.00 RFID Reader

The FEIG ID CPRO2.10 RFID Card Reader is designed for efficient access control and time attendance applications. Featuring both surface and flush mounting options, this versatile card reader supports multi-tag communication with ISO 14443-A/B and ISO 15693 transponders, accommodating various user needs. With an IP54 rating, it is suitable for both indoor and outdoor environments, ensuring reliable operation in various conditions. The reader provides multiple connectivity options including RS232, RS485, and Wiegand, allowing seamless integration into existing systems.

Key Features:

• Multi-tag support for ISO 14443-A/B and ISO 15693 transponders
• NFC compatibility for versatile applications
• IP54 rated for indoor and outdoor use
• Multiple communication interfaces including RS232 and RS485

Specifications:

• Dimensions: 84 mm x 84 mm x 22 mm (card reader), 78 mm x 78 mm x 18 mm (housing)
• Weight: approx. 150 g / 5.3 oz
• Housing Material: Plastic (ASA) with Acrylic Glass front
• Color Options: White (ID CPR02.10-AD), Black (ID CPR02.10-B)
• Operating Frequency: 13.56 MHz
• RF Power: 250 mW ±2 dB
• Supply Voltage: 12-24 V AC/DC
• Supported Transponders: ISO 14443-A/B, ISO 15693, NFC
• Reading Distance: max. 7 cm / 2.75 in
• Temperature Range: -25 °C to +60 °C (Operation), -40 °C to +85 °C (Storage)
• Relative Humidity: max. 95% (non-condensing)
