FEIG 2783.000.00 RFID Antenna

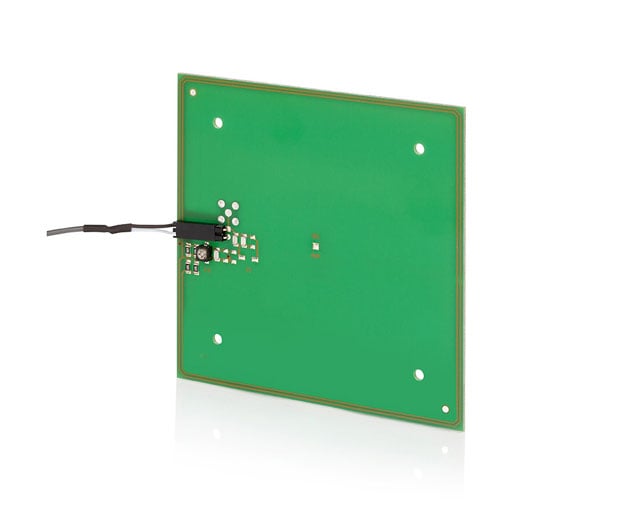

The FEIG ID ANT40/30 and ID ANT100/100 RFID antennas are designed for seamless integration with HF proximity readers, ensuring high-performance functionality for various applications such as eTicketing and Closed Loop Payment systems. Operating at a frequency of 13.56 MHz, these antennas offer impressive data transfer rates of up to 424 kbits/s and a maximum reading distance of 14 cm (ID ANT100/100). With options for both 2-pin and U.FL connectors, these antennas are ideal for incorporation into handheld devices, terminals, and other systems, making them versatile tools for enhancing RFID technology.
Key features:

• High Frequency: Operates at 13.56 MHz for efficient data handling.
• Flexible Connectivity: Available with both 2-pin and U.FL connector options.
• Extended Reading Distance: Up to 14 cm for improved performance.
• Broad Compatibility: Works with all supported HF reader modules.

Specifications:

• Operating Frequency: 13.56 MHz
• Impedance: 500 Ohm
• Maximum Transmitting Power: 1 W
• Data Transfer Rate: Up to 424 kbits/s
• Dimensions:
  • ID ANT40/30: 40 mm x 30 mm
  • ID ANT100/100: 100 mm x 100 mm
• Temperature Range: -25 °C to +70 °C (Operation), -40 °C to +85 °C (Storage)
• Relative Humidity: 0% to 95% (non-condensing)
• Conformity: WEEE-2002/96/EC, RoHS-2002/95/EC
