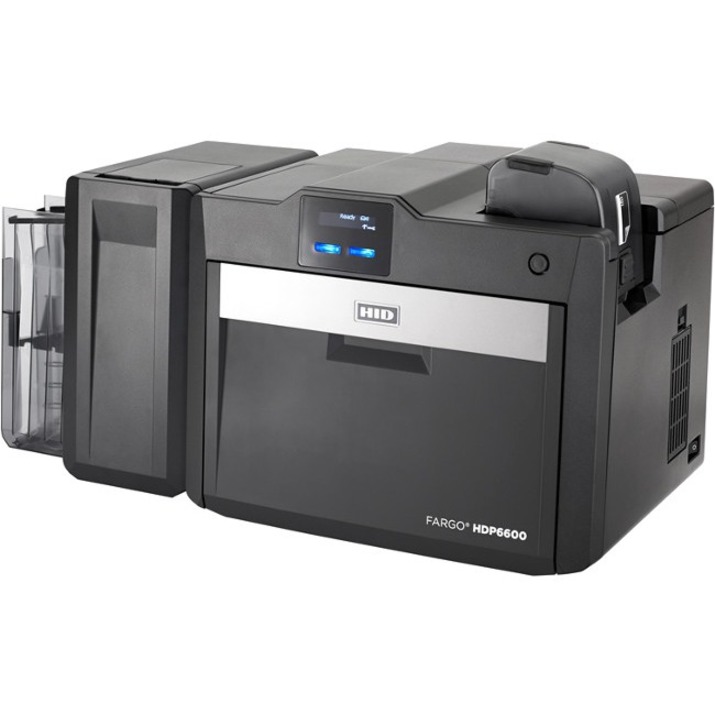

The FARGO® HDP6600 from HID Global is ideal for organizations of any size that need retransfer printing technology to routinely issue secure and durable, high definition IDs or cards at high speeds. As a cost-effective, eco-friendly and reliable solution, the HDP6600 provides high resolution 600 dpi printing capability for superior text and image quality.
Designed to meet the needs of cost- and efficiency-conscious organizations, the HDP6600 produces cards at unprecedented speeds and leverages HID Global's innovative wasteless lamination technology?helping cut your high-volume lamination materials costs by up to 40%.
The HDP6600 also features HID Global's patent-pending iON™ technology which allows the unit to reach optimal operating temperature in under 60 seconds, expediting the retransfer printing and lamination processes. With a built-in intelligent temperature control, the HDP6600 has been GreenCircle® Certified as significantly reducing energy consumption over comparable card printing and lamination systems. This provides unmatched energy efficiency and translates to significant energy savings for larger projects.
Only the HID FARGO HDP6600 offers:
Ability to print up to 230 cards per hour (YMCK with transfer)
Patent-pending iON™ technology for unparalleled printer readiness and intelligent temperature control
Retransfer-based wasteless lamination
Simultaneous print and retransfer
GreenCircle® certified energy savings
Built on six generations of proven retransfer technology, the HDP6600 offers the versatility to meet your card application needs today and in the future. Multiple field-upgradable encoder options are available for one-step, inline printing and encoding.
Fast, innovative, feature-rich and reliable?the HID FARGO HDP6600 sets the new customer demanded standard in retransfer printing.
What encoding options does the Fargo HDP6600 support?
The Fargo HDP6600 supports multiple encoding technologies including 125 kHz HID Prox readers, 13.56 MHz contactless encoders (iCLASS, MIFARE, ISO 14443 A/B, ISO 15693), contact smart card encoding for ISO 7816 cards, and ISO magnetic stripe encoding with dual high- and low-coercivity on tracks 1, 2, and 3. This versatility makes it ideal for organizations requiring multi-technology credential issuance.
What are the physical dimensions and weight of the Fargo HDP6600?
The dual-sided HDP6600 measures 9.8 inches high × 18.7 inches wide × 9.2 inches deep (249mm × 475mm × 234mm) and weighs 11 pounds (5 kg). When equipped with the lamination module, the system reaches 18.9 inches high × 18.7 inches wide × 9.2 inches deep (480mm × 475mm × 234mm) and weighs 20 pounds (9.1 kg).
What connectivity options are available on the HDP6600?
The HDP6600 features both USB 2.0 and Ethernet connectivity with an internal print server, enabling flexible deployment options for centralized or remote ID card issuance. This dual-interface design supports both direct PC connections and networked printing environments.
What operating environment specifications does the HDP6600 require?
The HDP6600 operates in temperature ranges of 65°F to 80°F (18°C to 27°C) with humidity levels between 20–80% non-condensing. The printer requires 100-240 VAC supply voltage at 3.3 A and operates at both 50 Hz and 60 Hz frequencies.
What warranty coverage is included with the Fargo HDP6600?
The HDP6600 includes a two-year warranty on the printer and a two-year warranty on the printhead with unlimited passes when using UltraCard™ media. This comprehensive coverage ensures reliable operation and support for your ID card issuance operations.
What card sizes and thicknesses can the HDP6600 print on?
The HDP6600 accepts standard CR-80 cards (3.375 inches long × 2.125 inches wide / 85.6mm × 54mm) and CR-79 adhesive-back cards. The printer supports card thicknesses ranging from 0.009 inches to 0.040 inches (9 mil to 40 mil / 0.229mm to 1.016mm), accommodating both standard PVC and polyester cards with polished finishes.
The Fargo 94651 ID Card Printer is also known as
FGO-94651
or 94651.
