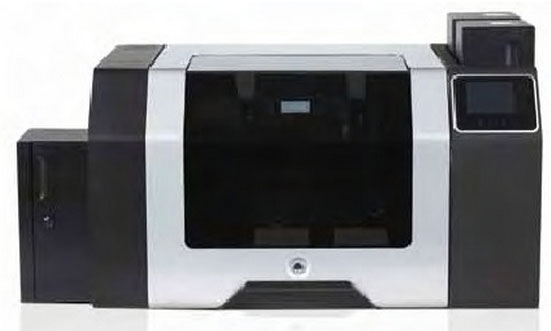

Fargo HDP8500 ID Card Printer Model Overview
The FARGO® HDP8500 Industrial Card Printer/Encoder is the pinnacle of efficiency and reliability for high-volume ID card production. Engineered for demanding environments, this printer utilizes HID's High Definition Printing™ technology to deliver unparalleled image quality and durability. With its robust design and advanced security features, including multi-lock access and data encryption, the HDP8500 is perfect for government ID programs, service bureaus, and educational institutions requiring a high duty cycle and exceptional throughput. Experience peace of mind with a solution that combines cutting-edge technology, seamless performance, and comprehensive support.
Key features
- High Definition Printing ensures crisp, vibrant images on varying card types.
- Robust Design with solid metal construction for enhanced durability.
- High-Duty Performance capable of printing up to 1200 cards per shift.
- Advanced Security features include multi-lock protection and AES-256 data encryption.
- Flexible Technology adapts to multiple card types and materials.
- Operational Convenience with dual hoppers for a total capacity of 400 cards.
- Field Upgradable Options for future needs, including magnetic stripe and smart card encoding.
Specifications
- Print Method: HDP Dye-Sublimation/Resin Thermal Transfer
- Print Speed: Up to 1200 cards per shift
- Print Resolution: 300 dpi (11.8 dots/mm)
- Card Size: CR-80 (3.370" L x 2.125" W)
- Card Thickness: 0.030" to 0.050" (30 mil to 50 mil)
- Input Hopper Capacity: Dual 200-card hoppers (total 400 cards)
- User Interface: 3.5-inch graphical touch-screen display with PIN access
- Warranty: 3 years on printer; lifetime on printhead
Recommended Accessories
Category
- Access Control Device (1)
- ID Card Printer Accessories (4)
Recommended Accessories for Model: Fargo 89980 ID Card Printer
Top Access Control Device Purchased With Fargo 89980
-
Fargo 088921 Access Control EquipmentAccess Control, HID, HID Prox, iCLASS (Se), MIFARE/DESFire, SEOS Smart Card Encoder (Omnikey 5127-USB Only) For HDP8500Ships from vendor — chat for lead time$966.00
Top ID Card Printer Accessories Purchased With Fargo 89980
-
Fargo 88914 AccessoryiCLASS, MIFARE/DESFire (Omnikey Cardman 5121)Item on backorder — chat for lead time$1,028.97 -
$307.97 -
Fargo D940275 AccessoryPrinter Spare Parts, HID, Asy-Box Lam HDP8500Ships from vendor — chat for lead time$313.47
Frequently Asked Questions
What print speeds does the Fargo 89980 ID Card Printer support?
The Fargo 89980 delivers variable print speeds depending on your ribbon configuration: 7 seconds per card for single-color resin black (K), 12 seconds for black with overlay (KO), 24 seconds for full-color YMCKO, and 31 seconds for dual-black full-color (YMCKOK). These speeds make it ideal for high-throughput credential issuance in government, service bureau, and enterprise environments.
What card sizes and thicknesses does this printer accept?
The Fargo 89980 accepts standard CR-80 cards (3.375" L x 2.125" W) and CR-79 adhesive-back cards, with card thickness ranging from 9 mil to 40 mil (.009" to .040"). The printer supports both PVC and polyester cards with polished PVC finish, making it versatile for various credential types.
What encoding options are available for the Fargo 89980?
The Fargo 89980 supports multiple encoding technologies including 125 kHz HID Prox readers, 13.56 MHz contactless smart card encoding (iCLASS, MIFARE, ISO 14443 A/B, ISO 15693), contact smart card encoding for ISO7816 standards, and ISO magnetic stripe encoding with dual high- and low-coercivity on Tracks 1, 2, and 3. These options enable comprehensive credential personalization for access control applications.
What are the connectivity and interface options?
The Fargo 89980 features both USB 2.0 and Ethernet connectivity with an internal print server, supporting centralized or remote ID card issuance. It includes optional single-wire Ethernet and USB 2.0 interfaces for inline printing and encoding, with Ethernet encoding available for iCLASS and contact smart card applications.
What ribbon options are available, and how many cards can each print?
We offer multiple ribbon configurations: full-color YMCKO with overlay (250 prints), full-color half-panel YMCKO (350 prints), dual-black YMCKOK with overlay (200 prints), fluorescent YMCFKO (200 prints), KO black with overlay (500 prints), and monochrome options ranging from 500 to 1,000 prints. The printer also supports rewrite technology requiring no ribbon for specific applications.
What are the operating environment specifications for the Fargo 89980?
The Fargo 89980 operates in environments with temperatures between 65° to 80° F (18° to 27° C) and humidity levels of 20–80% non-condensing. It requires 100-240 VAC power supply at 3.3 A and supports both 50 Hz and 60 Hz frequencies, with a two-year warranty on the printer and printhead including unlimited passes with UltraCard compatible cards.
