Fargo 89692 ID Card Printer

Fargo HDP5000 - Card Printer, Fargo HDP5000, High Definition Encoder, Double-sided Printing with Double-side Lamination, iClass, MIFARE/DESFire, HID PROX, Contactless and Contact Encoder.
$11,282.25
In Stock:
Ships Same Day
Recommended TrueSupport Coverage ($5.00/mo.)
x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over $325 per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device
$60.00
Only $5.00/month
Subtotal ( items)

Full specifications (PDF)

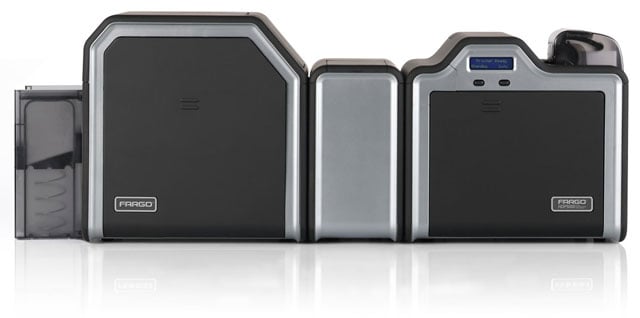

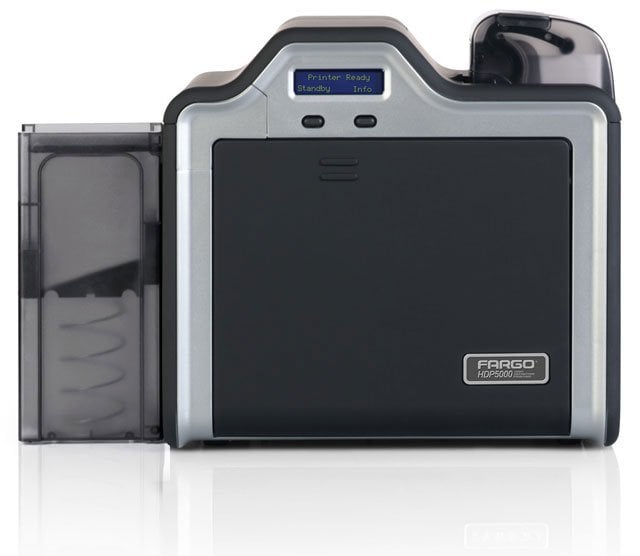

The Fargo HDP5000 printer/encoder is feature-packed. Perfect for technology cards with embedded electronics, it reliably produces cards in High Definition with the highest image quality available. The HDP5000 upgrades easily with additional printing, laminating and encoding modules. The HDP5000 features optional single-sided or simultaneous double-sided lamination for higher card security. Its double-sided card printing option lets you double the print area available without manually reloading cards. A SmartScreen LCD Control Panel displays helpful status messages and prompts. And cartridge-based card handling allows for both faster reloading and quicker switching to different card stocks.

Technical Information

  • Maximum Color Print Speed: 35 Second
  • Maximum Print Resolution: 300 dpi
  • Print Color: Color
  • Maximum Print Width: 2.13"
  • Recommended Use: Card Print
  • Encoding Technology: Contact Smart Card Encoder
  • Features:
    • HID Proximity
    • Dual Sided Laminator

General Information

  • Product Type: Dye Sublimation/Thermal Transfer Printer
  • Brand Name: Fargo
  • Manufacturer: HID Global Corporation
  • Product Model: HDP5000
  • Product Name: HDP5000 Card Printer Dual Sided

Physical Characteristics

  • Height: 11.5"
  • Width: 17.5"
  • Depth: 9.3"
  • Form Factor: Desktop
  • Weight (Approximate): 22 lb

Interfaces/Ports

  • USB: Yes

Other

  • Country of Origin: United States
  • Platform Supported:
    • Mac
    • PC
  • Certifications & Standards:
    • HSPD-12
    • FIPS 201
    • PIV
    • GSA
    • UL 60950
    • CSA C2.2 No 60950
    • CB report (EN 60950)
    • CE mark
    • FCC Part15 Class A
    • EN 55022: 1998 Class A
    • CRC c1374
    • EN 61000-3-2: 2000
    • EN 61000-3-2: 1995
    • EN 55024: 1998
    • CCC mark

Media Types & Handling

  • Media Type:
    • ABS Card
    • Laminated PVC
    • PET Card
    • PETG Card
    • Proximity Card
    • Smart Card
    • Magnetic Stripe Card
    • Optical Media Card
  • Media Load Type: Auto Feed
  • Media Handling:
    • 1 x Output Hopper 200 Card
    • 1 x Input Hopper 100 Card
  • Media Size: 3.37" x 2.13" - CR-80 Card
  • Media Thickness: 50 mil

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 3 Year

Memory

  • Standard Memory: 16 MB
Protect Your Product
Fargo Service Contract - 2 year (86375)
On-Call Express Extension for HDP5000
Ships within 3 to 5 business days
$934.25
+ Add to Quote
Fargo Service Contract - 1 year (86155)
Warranty (Extended Full Service) for the HDP5000 with Lamination Module
Ships within 3 to 5 business days
$2,450.00
+ Add to Quote
Fargo Service Contract - 1 year (86154)
Extended Limited Warranty for HDP5000-LC, Cover Printer with LAM
Ships within 3 to 5 business days
$1,750.00
+ Add to Quote
Fargo Service Contract - 1 year (86153)
Extended Full Service Warranty for HDP5000 Lamination Module Only. This part is also known as 086153.
Ships within 3 to 5 business days
$1,250.00
+ Add to Quote
Fargo Service Contract - 1 year (86150)
Extended Limited Warranty for HDP5000 Double-sided Printer
Ships within 3 to 5 business days
$950.00
+ Add to Quote

Full specifications (PDF)

Brand Fargo
Model HDP5000
Cards Per Day more than 500
Encoding Technology SmartCard - Contact Encoder, HID Prox Card, iCLASS and MIFARE/DESFire
Print Resolution 300 dpi
Printable Side Dual-Sided
Interfaces USB, Ethernet
Printing Technology Retransfer
Lamination Dual-Sided
Color Printing Color
Operating System Mac OS X, Linux, Windows

Recommended Accessories for Model: Fargo HDP5000 Card Printer

Category

  • Laminates and Films (11)
  • Card Printer Cleaners (5)
  • Holders (1)
  • ID Card Printer Ribbons (1)
  • Accessories (30)
Recommended Accessories for Model: Fargo HDP5000 Card Printer

Laminates and Films

Fargo Thermal transfer Overlaminate (82615)
Single-sided HDP5000 Thermal Trans. Overlam 500 ct. Compatible with HDP5000 and DTC4500 printers
In Stock: Ships Same Day
$48.13
+ Add to Quote
Fargo PolyGuard Overlaminate (82600)
HDP5000/DTC4500 .6 Overlam 250 ct. Overlam has thin "border" around the edges.
In Stock: Ships Same Day
$61.25
+ Add to Quote
Fargo PolyGuard Overlaminate (82601)
HDP5000/DTC4500 1.0 Overlam 250 ct.
In Stock: Ships Same Day
$61.25
+ Add to Quote
Fargo (82612)
HDP5000 1.0 Overlam with chip cutout 250 ct. Overlam has thin "border" around the edges.
In Stock: Ships Same Day
$70.00
+ Add to Quote
Fargo PolyGuard Overlaminate (82603)
HDP5000 .6 Orbit Overlam 250 ct. Overlam has thin "border" around the edges. Also works with DTC4500, DTC4500e.
In Stock: Ships Same Day
$113.75
+ Add to Quote
Fargo PolyGuard Overlaminate (82604)
1.0 Orbit Polyguard Overlam 250 ct. for HDP5000 and DTC4500. Overlam has thin "border" around the edges.
In Stock: Ships Same Day
$113.75
+ Add to Quote
Fargo (82608)
HDP5000 1.0 Overlam Half-patch for Magstripe Side of Card 250 ct. Overlam has thin "border" around the edges.
Ships in 3-5 Days
$50.75
+ Add to Quote
Fargo (82607)
Overlaminate .06 Half Patch for Mag Stripe 250ct HDP5000
Ships in 3-5 Days
$61.51
+ Add to Quote
Fargo Thermal transfer Overlaminate (82618)
Holographic Orbit Thermal Overlam 500 ct. HDP5000/DTC4500
Ships in 3-5 Days
$113.75
+ Add to Quote
Fargo HDP5000 (84054)
HDP Holographic Film, High Secure Orbit Design Universal Orientation 500 images. A Fargo Reverse Transfer printer is required to use the film. The Orbit design provides an added layer of security to your card. Compatible with HDP5000 ID Card printer
Ships in 3-5 Days
$345.81
+ Add to Quote
Fargo (78220)
Standard Clear Film, Approximately 1500 Count, Compatible with HDP6600, Must Be Asp Approved To Purchase
Ships in 3-5 Days
Please Call for Pricing
or to Purchase

Card Printer Cleaners

Fargo (82133)
Isopropyl alcohol cleaning cards, 10 pack
In Stock: Ships Same Day
$42.25
+ Add to Quote
Fargo (86131)
Cleaning Cards (50) for HDP and DTC Printers
In Stock: Ships Same Day
$52.75
+ Add to Quote
Fargo Universal Card Printer Accessories (89200)
HDP5000/5600 Cleaning Kit
In Stock: Ships Same Day
$65.38
+ Add to Quote
Fargo (81760)
Adhesive Cleaning Cards for HDP5000 & Persona C Series Printers, Qty. 50
Fargo (86004)
Cleaning Rollers 10-Pack DTC550 and HDP5000

Holders

Fargo Universal Card Printer Accessories (41604)
Clear Vinyl Pouches (100 Count - Horizontal CR-80 Card Size)

ID Card Printer Ribbons

Fargo ID Card Ribbon (78221)
YMCK, Full Color Ribbon With Resin Black Panel, 600 Images, Compatible with HDP6600, Must Be Asp Approved
Ships in 3-5 Days
Please Call for Pricing
or to Purchase

Accessories

Fargo Universal Card Printer Accessories (89203)
Simplex Contact & Contactless Encoder
In Stock: Ships Same Day
$1,093.04
+ Add to Quote
Fargo Universal Card Printer Accessories (89204)
Duplex Prox & Contact Encoder
In Stock: Ships Same Day
$1,093.04
+ Add to Quote
Fargo Universal Card Printer Accessories (89205)
Single-sided Prox and Contact Encoder
In Stock: Ships Same Day
$1,093.04
+ Add to Quote
Fargo HDP 5000 Part (86187)
HDP5000 RIBBON SENSOR
Fargo (85625)
Maintenance Sign-Fargo Cable, 6 feet, USB 2.0 High Speed Interface Cable
Ships in 3-5 Days
$23.13
+ Add to Quote
Fargo (D910007-02)
D910007-02 Top Cover
Fargo (D920189)
CARD PRINTER, HDP5000, SPARE PART, ASSY MOTOR LAM TAKEUP
Fargo (82655)
PolyGuard 1.0 mil Overlaminate, with left side cutout for large sized smart chip, Clear, 250 count (For use with cartridge 1*). For use with HID Crescendo and other contact chips requiring a larger hole.
Fargo (A000451)
COMMUNICATIONS ACCESORY BOARD FOR SERIAL NUMBER BEFORE A8XXXXX
Fargo (D910052)
CARD PRINTER, HDP5000, SPARE PART, HEAD LIFT MOTOR
Fargo DTC400e Accessories (86068)
Green Laser Pen - Used to view laser text
Fargo Universal Card Printer Accessories (89213)
Kit (Lock) for the HDP5000. This part is also known as 089213.
Fargo HDP5000 Accessories (A910551)
USB Assembly board for HDP5000
Fargo Universal Card Printer Accessories (89201)
HDP5000 Magnetic Stripe Encoder
Fargo Universal Card Printer Accessories (89001)
Double-sided Printing Module (for the HDP5000)
Ships in 3-5 Days
$873.35
+ Add to Quote
Fargo Universal Card Printer Accessories (89202)
13.56 MHz Smart Card Encoder for Double-sided HDP5000
Fargo Universal Card Printer Accessories (88900)
HDP5000 Single-sided Lamination Module, Pre 2013 Model
Fargo (88935)
HDP5000 Single-sided Lamination Module
Ships in 3-5 Days
$2,079.00
+ Add to Quote
Fargo Universal Card Printer Accessories (89033)
Duplex Module with Prox & Contact Encoder
Fargo Universal Card Printer Accessories (89053)
Duplex Module with Contact/Contactless Enc
Fargo Universal Card Printer Accessories (88902)
Double-sided Simultaneous Laminator Module (for the HDP5000)
Fargo (D910409)
HDP5000 SPARE PART RTD KAPTON
Fargo Universal Plastic Card Accessories (41600)
Clear CardJet PSA Patch (100 Count) for Use with CardJet Cards
Fargo Universal Card Printer Accessories (89207)
200-Card Input Hopper (with Lock) for the HDP5000
Fargo HDP5000 Card Printer-Encoder Accessories (D910132-01)
Black Back Cover (Spare Part) for the HDP5000
Fargo (D910189-01)
TOP COVER FLIPPER NO LID
Fargo (D910190)
TOP LID FLIPPER

The Fargo 89692 is also known as Fargo Electronics FGO-89692 .
