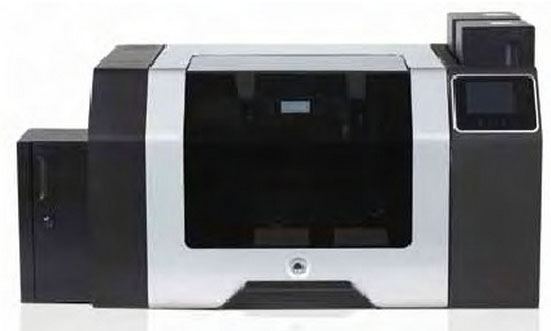

Fargo HDP8500 ID Card Printer Model Overview
The FARGO® HDP8500 Industrial Card Printer/Encoder is the pinnacle of efficiency and reliability for high-volume ID card production. Engineered for demanding environments, this printer utilizes HID's High Definition Printing™ technology to deliver unparalleled image quality and durability. With its robust design and advanced security features, including multi-lock access and data encryption, the HDP8500 is perfect for government ID programs, service bureaus, and educational institutions requiring a high duty cycle and exceptional throughput. Experience peace of mind with a solution that combines cutting-edge technology, seamless performance, and comprehensive support.
Key features
- High Definition Printing ensures crisp, vibrant images on varying card types.
- Robust Design with solid metal construction for enhanced durability.
- High-Duty Performance capable of printing up to 1200 cards per shift.
- Advanced Security features include multi-lock protection and AES-256 data encryption.
- Flexible Technology adapts to multiple card types and materials.
- Operational Convenience with dual hoppers for a total capacity of 400 cards.
- Field Upgradable Options for future needs, including magnetic stripe and smart card encoding.
Specifications
- Print Method: HDP Dye-Sublimation/Resin Thermal Transfer
- Print Speed: Up to 1200 cards per shift
- Print Resolution: 300 dpi (11.8 dots/mm)
- Card Size: CR-80 (3.370" L x 2.125" W)
- Card Thickness: 0.030" to 0.050" (30 mil to 50 mil)
- Input Hopper Capacity: Dual 200-card hoppers (total 400 cards)
- User Interface: 3.5-inch graphical touch-screen display with PIN access
- Warranty: 3 years on printer; lifetime on printhead
Recommended Accessories
Category
- Access Control Device (1)
- ID Card Printer Accessories (4)
Recommended Accessories for Model: Fargo 88531 ID Card Printer
Top Access Control Device Purchased With Fargo 88531
-
Fargo 088921 Access Control EquipmentAccess Control, HID, HID Prox, iCLASS (Se), MIFARE/DESFire, SEOS Smart Card Encoder (Omnikey 5127-USB Only) For HDP8500Ships from vendor — chat for lead time$966.00
Top ID Card Printer Accessories Purchased With Fargo 88531
-
Fargo 88914 AccessoryiCLASS, MIFARE/DESFire (Omnikey Cardman 5121)Item on backorder — chat for lead time$1,028.97 -
$307.97 -
Fargo D940275 AccessoryPrinter Spare Parts, HID, Asy-Box Lam HDP8500Ships from vendor — chat for lead time$313.47
Frequently Asked Questions
What printing technologies does the Fargo HDP8500 use?
The Fargo HDP8500 uses dye-sublimation and resin thermal transfer printing methods with 300 dpi continuous tone resolution, delivering up to 16.7 million colors with 256 shades per pixel. This High Definition Printing (HDP) technology ensures superior image quality for industrial-grade ID card production.
What card encoding options are available with the Fargo HDP8500?
The Fargo HDP8500 supports multiple encoding technologies including 125 kHz HID Prox readers, 13.56 MHz contactless encoding (iCLASS, MIFARE, ISO 14443 A/B, ISO 15693), contact smart card encoding, and ISO magnetic stripe encoding with dual high- and low-coercivity on Tracks 1, 2, and 3. These options make it compatible with comprehensive access control and credential programming systems.
How fast does the Fargo HDP8500 print ID cards?
Print speed varies by ribbon type: 7 seconds per card with resin black only (K), 12 seconds with resin black and overlay (KO), 24 seconds for full-color with resin black and overlay (YMCKO), and 31 seconds for full-color with dual resin black panels and overlay (YMCKOK). These speeds represent batch printing from card feed to ejection.
What connectivity options does the Fargo HDP8500 offer?
The Fargo HDP8500 features both USB 2.0 and Ethernet connectivity with an internal print server, enabling centralized or remote ID card issuance. Single wire Ethernet encoding is available for iCLASS and contact smart card encoding, supporting flexible deployment in various network environments.
What card sizes and thicknesses does the Fargo HDP8500 accept?
The Fargo HDP8500 accepts standard CR-80 cards (3.375" L x 2.125" W / 85.6mm L x 54mm W) and CR-79 adhesive back cards (3.313" L x 2.063" W / 84.1mm L x 52.4mm W) with thicknesses ranging from 9 mil to 40 mil (.009" to .040" / .229mm to 1.016mm). It supports PVC or polyester cards with polished PVC finish.
What warranty and support features come with the Fargo HDP8500?
The Fargo HDP8500 includes a three-year printer warranty and features the FARGO Workbench diagnostic utility with Color Assist spot-color matching for maintenance and troubleshooting. It also includes a SmartScreen graphical display and password-protected printer operation for secure credential issuance environments. Contact us today to learn more about our support options available from Barcodes Inc.
