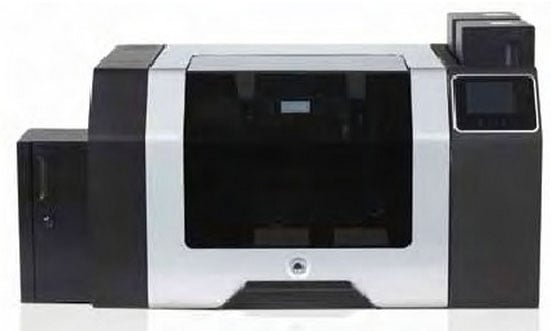

Fargo HDP8500 ID Card Printer Model Overview
The FARGO® HDP8500 Industrial Card Printer/Encoder is the pinnacle of efficiency and reliability for high-volume ID card production. Engineered for demanding environments, this printer utilizes HID's High Definition Printing™ technology to deliver unparalleled image quality and durability. With its robust design and advanced security features, including multi-lock access and data encryption, the HDP8500 is perfect for government ID programs, service bureaus, and educational institutions requiring a high duty cycle and exceptional throughput. Experience peace of mind with a solution that combines cutting-edge technology, seamless performance, and comprehensive support.
Key features
- High Definition Printing ensures crisp, vibrant images on varying card types.
- Robust Design with solid metal construction for enhanced durability.
- High-Duty Performance capable of printing up to 1200 cards per shift.
- Advanced Security features include multi-lock protection and AES-256 data encryption.
- Flexible Technology adapts to multiple card types and materials.
- Operational Convenience with dual hoppers for a total capacity of 400 cards.
- Field Upgradable Options for future needs, including magnetic stripe and smart card encoding.
Specifications
- Print Method: HDP Dye-Sublimation/Resin Thermal Transfer
- Print Speed: Up to 1200 cards per shift
- Print Resolution: 300 dpi (11.8 dots/mm)
- Card Size: CR-80 (3.370" L x 2.125" W)
- Card Thickness: 0.030" to 0.050" (30 mil to 50 mil)
- Input Hopper Capacity: Dual 200-card hoppers (total 400 cards)
- User Interface: 3.5-inch graphical touch-screen display with PIN access
- Warranty: 3 years on printer; lifetime on printhead
Recommended Accessories
Category
- Access Control Device (1)
- ID Card Printer Accessories (4)
Recommended Accessories for Model: Fargo 88521 ID Card Printer
Top Access Control Device Purchased With Fargo 88521
-
Fargo 088921 Access Control EquipmentAccess Control, HID, HID Prox, iCLASS (Se), MIFARE/DESFire, SEOS Smart Card Encoder (Omnikey 5127-USB Only) For HDP8500Ships from vendor — chat for lead time$966.00
Top ID Card Printer Accessories Purchased With Fargo 88521
-
Fargo 88914 AccessoryiCLASS, MIFARE/DESFire (Omnikey Cardman 5121)Item on backorder — chat for lead time$1,028.97 -
$307.97 -
Fargo D940275 AccessoryPrinter Spare Parts, HID, Asy-Box Lam HDP8500Ships from vendor — chat for lead time$313.47
Frequently Asked Questions
What is the Fargo HDP8500 Industrial Card Printer best used for?
The Fargo HDP8500 is engineered for extended-run, high throughput credential personalization and issuance in demanding environments. It's especially suited for large government ID card programs, service bureau operations, and high duty cycle requirements in universities and large enterprises where reliability and performance are critical.
Does the Fargo HDP8500 support dual-sided printing and encoding?
Yes, the Fargo HDP8500 features dual-sided printing and dual-sided card lamination capabilities. The base model includes multiple encoding options: iCLASS, MIFARE/DESFire (via Omnikey Cardman 5121), and HID Prox (via Omnikey Cardman 5125) for comprehensive smart card support.
What makes the Fargo HDP8500 different from other industrial card printers?
The Fargo HDP8500 features HID's proprietary High Definition Printing (HDP) technology, which delivers superior print quality and reliability for industrial applications. This technology, combined with its high duty cycle design, makes it the most reliable option for extended-run credential issuance in demanding conditions.
What smart card encoding technologies does the Fargo HDP8500 support?
The Fargo HDP8500 base model includes support for iCLASS, MIFARE/DESFire, and HID Prox contactless technologies. It also supports contact and contactless smart card encoding, making it versatile for various credential issuance programs.
What input and output options are available on the Fargo HDP8500?
The Fargo HDP8500 is available with optional dual card input hopper modules and a 200-card input hopper for high-volume operations. The printer includes a card output hopper and supports lamination modules for added security and durability of printed credentials.
What software and diagnostic tools are included with the Fargo HDP8500?
The Fargo HDP8500 comes with FARGO Workbench diagnostic utility and Color Assist spot-color matching software to ensure optimal print quality and troubleshooting. A printer cleaning kit is also included to maintain performance during high-volume credential issuance operations.
