Fargo 70010 ID Card Printer
Full specifications (PDF)

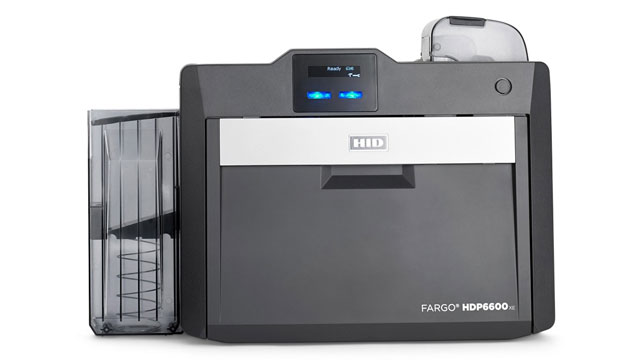

Fargo HDP6600 XE Model Overview
Key features:
- Print Method: HDP® Dye-Sublimation / Resin Thermal Transfer
- Print Speed: Up to 230 cards/hour (single-sided)
- Resolution: 600 dpi for stunning clarity
- Encoding Options: Supports various technologies including magnetic stripe and contactless smart cards
- Data Security: AES-256 Data Encryption
- Includes: User-friendly SmartScreen™ OLED Control Panel and diagnostic software
Specifications:
- Dimensions: 13.0"H x 14.5"W x 12.0"D
- Weight: 21.0 lbs. / 9.5 kg
- Input Capacity: 100 cards (.030" / .762mm)
- Output Capacity: 200 cards (.030" / .762mm)
- Supported Card Types: ABS, PVC, PET, and more
- Operating Temperature: 65° to 90° F / 18° to 32° C
- Power Supply: 100-240 VAC, 2.5A max
- Warranty: Three years including loaner support
Recommended Accessories
Category
- Miscellaneous (1)
Recommended Accessories for Model: Fargo 70010 ID Card Printer
Top Miscellaneous Purchased With Fargo 70010
-
Fargo 88933 ProductsFargo HDP6600, HDP6600 XE, & HDP8500 Printer Cleaning Kit-includes 4 printhead cleaning swabs, 10 cleaning cards, 10 cleaning pads and 3 alcohol cleaning cards.In Stock$100.99
Frequently Asked Questions
What printing technologies does the Fargo HDP6600XE use?
The Fargo HDP6600XE uses HDP Dye-Sublimation and Resin Thermal Transfer printing technologies to deliver professional-quality ID cards with vivid colors and exceptional detail. This dual-technology approach achieves up to 16.7 million colors with 256 shades per pixel at 600 dpi resolution, ensuring durability and color accuracy for secure card issuance environments.
What encoding and smart card options are available on the HDP6600XE?
The HDP6600XE supports multiple encoding technologies including magnetic stripe encoding, contact smart card encoding, and contactless smart card encoding modules. These options make it versatile for any card issuance requirement, whether you need traditional magnetic stripe cards or modern multi-technology smart cards.
What is the print speed of the Fargo HDP6600XE?
In batch mode, the HDP6600XE prints up to 230 cards per hour (16 seconds per card) with YMCK full-color and resin black ribbon, or up to 126 cards per hour (29 seconds per card) with YMCKK dual resin black panels. This makes it suitable for high-volume card production environments.
What security features does the HDP6600XE offer for data protection?
The HDP6600XE includes AES-256 encryption for secure data handling and resin scramble data protection to safeguard sensitive information during card production. These features are designed specifically for secure environments where data protection is critical.
What card materials and sizes does the HDP6600XE support?
The HDP6600XE accepts standard CR-80 card sizes (3.375" L x 2.125" W / 85.6 mm L x 54 mm W) and supports card thickness from .030" to .040" (0.762 mm to 1.01 mm). Compatible materials include PVC, PET, polycarbonate, and other card stock, with over-the-edge printing capability for maximum card utilization.
What warranty and support does Barcodes Inc offer with the HDP6600XE?
We offer the Fargo HDP6600XE with a three-year printer warranty that includes one year of free printer loaner support, with the option to purchase a second year of loaner support (U.S. only). The printhead carries a lifetime warranty with unlimited card passes, ensuring long-term reliability for your card production operations. Contact us today to discuss warranty options and support packages available from us.
