Fargo 55520U ID Card Printer
Full specifications (PDF)

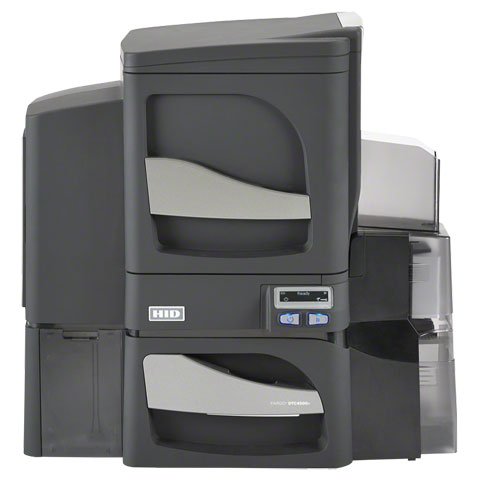

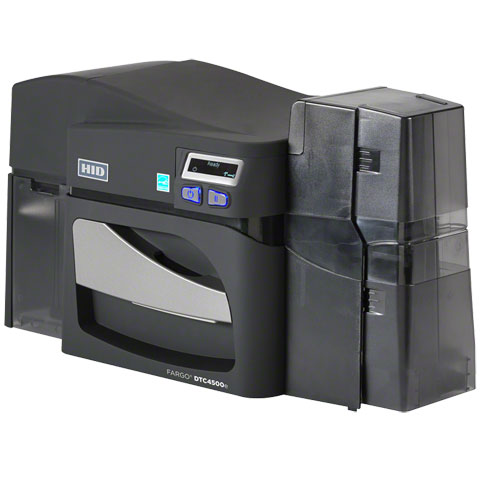

Fargo DTC4500e ID Card Printer Model Overview
Key Features
- High-Volume Performance: Reliable daily printing with minimal downtime.
- End-to-End Control: Fully integrated iCLASS SE® encoder for secure credential management.
- Modular Design: Upgradeable for future enhancements such as dual-sided printing and lamination.
- Enhanced Security: Optional locking hoppers and password-protected operation.
- Eco-Friendly: ENERGY STAR® certified and offers eco-friendly refill ribbons.
Specifications
- Print Method: Dye sublimation / resin thermal transfer
- Resolution: 300 dpi (11.8 dots/mm)
- Print Speed: 6 to 24 seconds per card based on type
- Card Capacity: Dual-input hopper - 200 cards; Output hopper - up to 100 cards
- Weight: Single-sided: 9 lbs; Dual-sided: 11 lbs
- Operating Temperature: 65° to 80° F (18° to 27° C)
- Compatible Software: Asure ID®, Swift ID
- Interface: USB 2.0 and Ethernet with internal print server
Recommended Accessories
Category
- Fargo Power Device (1)
- ID Card Printer Accessories (10)
- ID Card Printer Ribbon (11)
Recommended Accessories for Model: Fargo 55520U ID Card Printer
Top Fargo Power Device Purchased With Fargo 55520U
-
$307.99
Top ID Card Printer Accessories Purchased With Fargo 55520U
-
$1,024.35 -
Fargo 47701 AccessoryiCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121) Field UpgradeShips from vendor — chat for lead time$565.71 -
Fargo 47706 AccessoryHID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125) Field UpgradeShips from vendor — chat for lead time$565.71
Top ID Card Printer Ribbon Purchased With Fargo 55520U
-
Fargo 45010 ID Card RibbonID Card Printer Ribbons, HID, YMCKOK Cartridge With Cleaning Roller, Full-Color Ribbon With Resin Black And Clear Overlay Panel, 200 Images. Compatible With: DTC1000, DTC1250EItem on backorder — chat for lead time$76.99 -
Fargo 045400 ID Card RibbonID Card Printer Ribbons, HID, EZ YMCKO Cartridge With Cleaning Roller, 100 Images (AP). Compatible With: C50 (SC)Ships from vendor — chat for lead time$45.80 -
Fargo 045420 ID Card RibbonID Card Printer Ribbons, HID, EZ YMCKO Cartridge With Cleaning Roller, 100 Images (LM). Compatible With: C50 (LM)Ships from vendor — chat for lead time$45.80
Frequently Asked Questions
What makes the Fargo DTC4500e ideal for high-volume ID card printing?
The DTC4500e is driven by an extremely robust and reliable print engine that delivers speed, power, and versatility for high-volume operations. High-capacity ribbons enable the DTC4500e to print twice as many full-color cards as most printers before the ribbon needs to be changed, providing continuous high-quality card printing with minimal downtime.
Can the Fargo DTC4500e print on both sides of an ID card?
Yes, the DTC4500e features a dual-sided printing module that provides more space for card holder information and security features like duplicate photos and digital signatures. Additionally, the printer offers unique dual-sided simultaneous lamination, which saves time and increases throughput for secure card production.
What encoding options does the Fargo DTC4500e support?
The DTC4500e is field-upgradable with technology encoding modules that can encode data for magnetic stripe, proximity, contact, and contactless technology cards, such as iCLASS®, for access control and other applications. This flexibility allows you to adapt the printer to your organization's evolving security needs.
Does the Fargo DTC4500e include lamination capabilities?
Yes, the DTC4500e offers optional card lamination for applying overlaminates to produce high-secure cards that resist forgery and increase card durability. The dual-sided simultaneous lamination feature saves time while delivering enhanced security for your ID card programs.
What connectivity options are available on the Fargo DTC4500e?
The DTC4500e is available as a base model with both USB and Ethernet connectivity, allowing flexible integration into your existing IT infrastructure. This dual connectivity ensures compatibility with various network environments and direct computer connections.
What security features does the Fargo DTC4500e offer?
The DTC4500e combines high-level security with built-in password-protected printer operation and fluorescent panel printing for cost-effective and dynamic increases in card security. The SmartScreen™ graphical display and field-upgradable security options provide comprehensive protection against card forgery and unauthorized access.
