Fargo 55508U ID Card Printer
Full specifications (PDF)

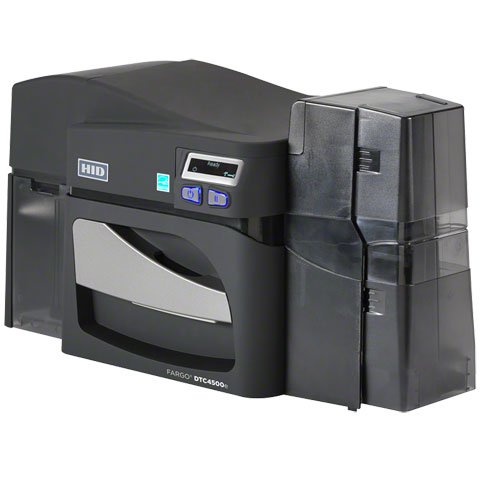

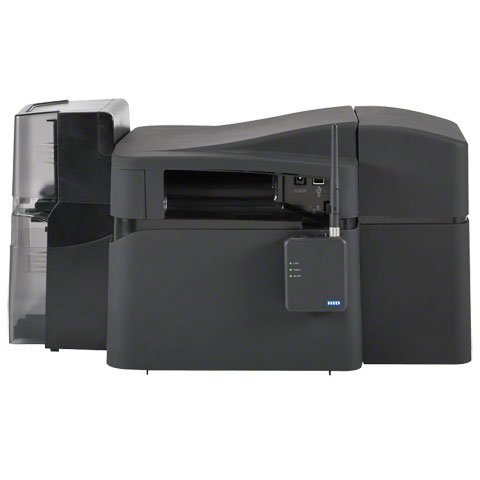

Fargo DTC4500e ID Card Printer Model Overview
Key Features
- High-Volume Performance: Reliable daily printing with minimal downtime.
- End-to-End Control: Fully integrated iCLASS SE® encoder for secure credential management.
- Modular Design: Upgradeable for future enhancements such as dual-sided printing and lamination.
- Enhanced Security: Optional locking hoppers and password-protected operation.
- Eco-Friendly: ENERGY STAR® certified and offers eco-friendly refill ribbons.
Specifications
- Print Method: Dye sublimation / resin thermal transfer
- Resolution: 300 dpi (11.8 dots/mm)
- Print Speed: 6 to 24 seconds per card based on type
- Card Capacity: Dual-input hopper - 200 cards; Output hopper - up to 100 cards
- Weight: Single-sided: 9 lbs; Dual-sided: 11 lbs
- Operating Temperature: 65° to 80° F (18° to 27° C)
- Compatible Software: Asure ID®, Swift ID
- Interface: USB 2.0 and Ethernet with internal print server
Recommended Accessories
Category
- Fargo Power Device (1)
- ID Card Printer Accessories (10)
- ID Card Printer Ribbon (11)
Recommended Accessories for Model: Fargo 55508U ID Card Printer
Top Fargo Power Device Purchased With Fargo 55508U
-
$307.99
Top ID Card Printer Accessories Purchased With Fargo 55508U
-
$1,024.35 -
Fargo 47701 AccessoryiCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121) Field UpgradeShips from vendor — chat for lead time$565.71 -
Fargo 47706 AccessoryHID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125) Field UpgradeShips from vendor — chat for lead time$565.71
Top ID Card Printer Ribbon Purchased With Fargo 55508U
-
Fargo 45010 ID Card RibbonID Card Printer Ribbons, HID, YMCKOK Cartridge With Cleaning Roller, Full-Color Ribbon With Resin Black And Clear Overlay Panel, 200 Images. Compatible With: DTC1000, DTC1250EItem on backorder — chat for lead time$76.99 -
Fargo 045400 ID Card RibbonID Card Printer Ribbons, HID, EZ YMCKO Cartridge With Cleaning Roller, 100 Images (AP). Compatible With: C50 (SC)Ships from vendor — chat for lead time$45.80 -
Fargo 045420 ID Card RibbonID Card Printer Ribbons, HID, EZ YMCKO Cartridge With Cleaning Roller, 100 Images (LM). Compatible With: C50 (LM)Ships from vendor — chat for lead time$45.80
Frequently Asked Questions
What are the key features of the Fargo DTC4500e ID card printer?
The Fargo DTC4500e delivers dual-sided printing and lamination capabilities in a single, versatile system. It features a robust print engine designed for high-volume production, high-capacity ribbons that enable printing twice as many full-color cards before ribbon changes, and field-upgradable options for enhanced security. The printer also supports multiple encoding technologies including magnetic stripe, proximity, contact, and contactless smart card encoding such as iCLASS.
Does the Fargo DTC4500e support smart card encoding?
Yes, the DTC4500e includes a smart card encoder (Omnikey 5127-USB) that supports HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos technologies. This allows you to encode data directly onto proximity and contact/contactless smart cards for access control and other secure applications. The encoder is integrated into the base model available from us.
What connectivity options does the Fargo DTC4500e offer?
The Fargo DTC4500e connects via both USB and Ethernet, providing flexibility for integration into various network environments and workflows. This dual connectivity ensures compatibility with both direct workstation connections and networked printing scenarios for enterprise deployments.
Can the Fargo DTC4500e laminate cards on both sides?
Yes, the DTC4500e features optional dual-sided simultaneous lamination that applies overlaminates to both sides of the card in a single pass. This capability produces high-security cards that resist forgery and increase durability while saving time through increased throughput compared to single-sided lamination.
What security features does the Fargo DTC4500e include?
The DTC4500e combines multiple security layers including password-protected printer operation to control access, fluorescent panel printing for dynamic security enhancements, and optional card lamination with overlaminates to resist forgery. Dual-sided printing also allows for additional security features like duplicate photos and digital signatures on cards.
What is included in the base model configuration of the Fargo DTC4500e?
The base model DTC4500e includes dual-sided printing, dual-sided lamination capability, USB and Ethernet connectivity, and the Omnikey 5127-USB smart card encoder supporting HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos technologies. The base configuration comes without locking hoppers, allowing you to add these components as needed for your specific application.
