Fargo 53230-FGO ID Card Printer
Full specifications (PDF)

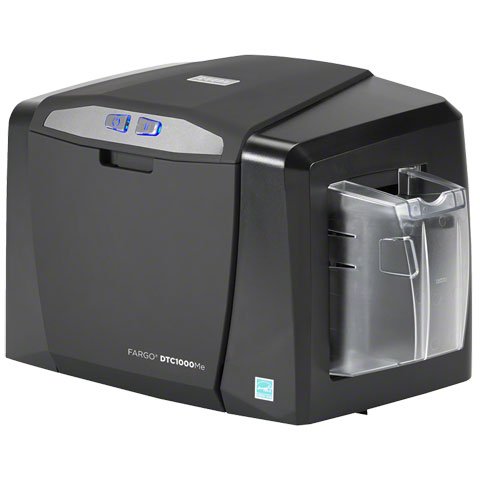

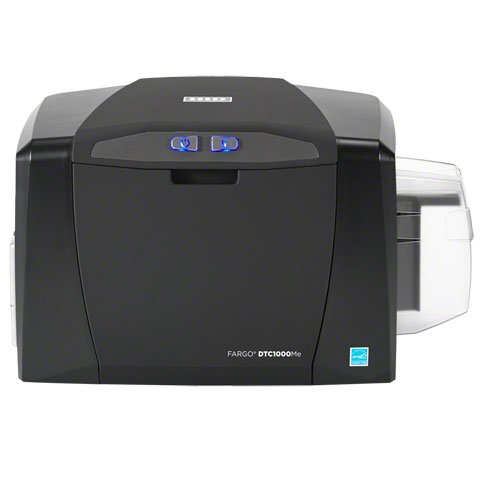

Fargo DTC1000Me ID Card Printer Model Overview
Key features:
- Cost-effective low-to-moderate-volume card issuance.
- Secure AES-256 decryption for data protection.
- Interoperable with Asure IDⓇ and EasyLobbyⓇ software.
- Multiple ribbon options: EZ and ECO ribbons available.
- Multi-card compatibility for CR-80 and CR-79 sizes.
- Fast printing speed: as quick as 6 seconds per card.
- Easy connectivity via USB or Ethernet options.
Specifications:
- Model Name: DTC1000Me Monochrome
- Print Method: Dye-sublimation / resin thermal transfer
- Print Speed: 6 seconds per card (black); 8 seconds per card (KO)
- Print Resolution: 300 dpi (11.8 dots/mm)
- Accepted Card Sizes: CR-80, CR-79 adhesive back
- Input Hopper Capacity: 100 cards
- Output Hopper Capacity: Up to 30 cards
- Operating Temperature: 65° to 80° F (18° to 27° C)
- Weight: 7.5 lbs (3.4 Kg)
- Warranty: Three years on printer and printhead
Recommended Accessories
Category
- Fargo Power Device (1)
- ID Card Printer Accessories (1)
Recommended Accessories for Model: Fargo 53230-FGO ID Card Printer
Top Fargo Power Device Purchased With Fargo 53230-FGO
-
$307.99
Top ID Card Printer Accessories Purchased With Fargo 53230-FGO
-
$307.99
Frequently Asked Questions
What printing technology does the Fargo DTC1000Me use?
The Fargo DTC1000Me uses resin thermal transfer printing technology at 300 dpi resolution to produce monochrome ID cards. This cost-effective method delivers durable, high-quality output suitable for low-to-moderate-volume card issuance in organizations like casinos, financial services firms, and small businesses.
What connectivity options are available on the DTC1000Me?
The DTC1000Me comes standard with USB connectivity and includes optional 10BASE-T Ethernet with an internal print server. This allows you to network the printer for remote access and operation in networked card printing environments.
Can the DTC1000Me encode magnetic stripe cards?
Yes, the DTC1000Me includes ISO magnetic stripe encoding capability as a base feature. This allows you to encode track data directly onto cards for applications requiring magnetic stripe technology, such as access cards or financial credentials.
Is the DTC1000Me suitable for temporary ID badges and visitor passes?
Yes, the DTC1000Me is ideal for temporary ID applications because it features an eco-friendly erase-and-rewrite option. This rewritable technology eliminates the need for ribbon cartridges and makes the printer perfect for organizations that issue visitor badges and temporary worker IDs.
What card sizes and thicknesses does the DTC1000Me accept?
The DTC1000Me accepts standard CR-80 cards (3.375˝L x 2.125˝W) and CR-79 adhesive-back cards. The printer supports card thickness from .009˝ to .040˝ (9 mil to 40 mil), allowing you to print on a variety of card types from simple loyalty cards to more sophisticated access control cards.
What warranty coverage is included with the DTC1000Me?
The Fargo DTC1000Me includes a three-year printer warranty as stated in the base model specifications. This extended coverage provides peace of mind for your card issuance investment and supports continuous operation of your ID card program.
