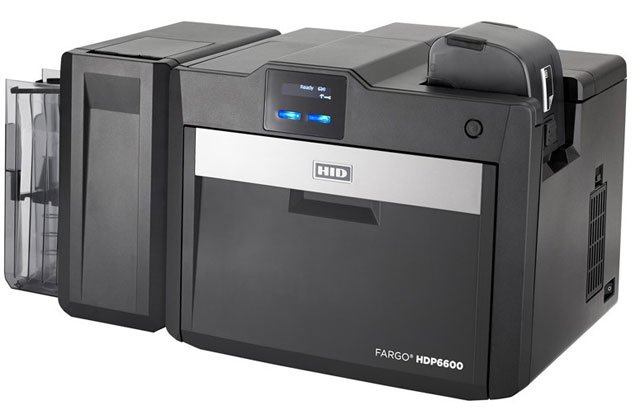

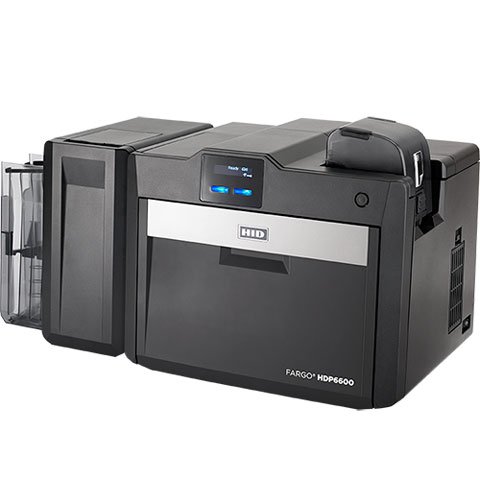

Fargo 70011 ID Card Printer

Part Number: 70011
Model: HDP6600 XE
Add to My Shopping List Add to Compare
$7,631.39
Ships from vendor — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Print Technology
Dye Sublimation
Print Color
White
Typical Print Yield
1000 Cards
Package Contents
Ribbon CartridgeCleaning Roller

Product Description:

  ID Card Printers, Fargo, Limited Edition retransfer HDP printing, Dual-sided printing, 600dpi Print Resolution, Warranty: 3 years
Explore all Fargo HDP6600 XEs
Add to Quote
Fargo 70011 ID Card Printer
Fargo 70011 ID Card Printer
Fargo 70011 ID Card Printer Fargo 70011 ID Card Printer
Full specifications (PDF)

Fargo HDP6600 XE Model Overview

The FARGO® HDP6600XE printer is engineered for optimal performance, delivering breathtaking, high-definition card printing with a resolution of 600 dpi. This state-of-the-art device utilizes HDP® Dye-Sublimation and Resin Thermal Transfer technology, producing vibrant colors with the capability of displaying up to 16.7 million hues. Designed for versatility, it supports a variety of card types while ensuring secure and efficient printing through its dual-sided module and advanced encoding options. Whether you need high-security access cards or ID badges, the HDP6600XE meets all your printing needs with reliability and speed.

Key features:
  • Print Method: HDP® Dye-Sublimation / Resin Thermal Transfer
  • Print Speed: Up to 230 cards/hour (single-sided)
  • Resolution: 600 dpi for stunning clarity
  • Encoding Options: Supports various technologies including magnetic stripe and contactless smart cards
  • Data Security: AES-256 Data Encryption
  • Includes: User-friendly SmartScreen™ OLED Control Panel and diagnostic software


Specifications:
  • Dimensions: 13.0"H x 14.5"W x 12.0"D
  • Weight: 21.0 lbs. / 9.5 kg
  • Input Capacity: 100 cards (.030" / .762mm)
  • Output Capacity: 200 cards (.030" / .762mm)
  • Supported Card Types: ABS, PVC, PET, and more
  • Operating Temperature: 65° to 90° F / 18° to 32° C
  • Power Supply: 100-240 VAC, 2.5A max
  • Warranty: Three years including loaner support
Full specifications (PDF)
Technical Information
Print Technology:
Dye Sublimation
Print Color:
White
Typical Print Yield:
1000 Cards
Miscellaneous
Package Contents:
  • Ribbon Cartridge
  • Cleaning Roller
Compatibility:

Fargo DTC400 Printer

Item Numbers
GTIN: 0700112955679, 0754563442363
UPC: 700112955679, 754563442363
EAN: 0700112955679, 0754563442363
UNSPSC: 44103112

Recommended Accessories

Category

  • ID Card Printer Accessories (8)
  • ID Card Printer Ribbon (1)

Recommended Accessories for Model: Fargo 70011 ID Card Printer

Top ID Card Printer Accessories Purchased With Fargo 70011

See All ID Card Printer Accessories for Fargo 70011 ID Card Printer >

Top ID Card Printer Ribbon Purchased With Fargo 70011

Frequently Asked Questions

The Fargo HDP6600XE delivers 600 dpi (23.6 dots/mm) resolution using HDP® Dye-Sublimation and Resin Thermal Transfer technology. This high resolution produces crisp, vibrant images and text suitable for professional ID badges, access control cards, and membership cards. The printer can render up to 16.7 million colors with 256 shades per pixel for superior print quality.

The Fargo HDP6600XE prints at speeds up to 230 cards per hour (approximately 16 seconds per card) in batch mode with full-color YMCK ribbon and transfer. When using dual-resin black ribbon (YMCKK), the speed is up to 126 cards per hour (29 seconds per card). These speeds make it ideal for high-volume ID card production environments.

The Fargo HDP6600XE supports encoding options for magnetic stripe, smart cards, and contactless cards, making it versatile for various credential applications. The printer includes AES-256 encryption for secure data transmission and resin scramble protection to safeguard sensitive information on printed cards. These security features are essential for access control and high-security ID applications.

Yes, the Fargo HDP6600XE supports dual-sided printing, allowing you to print on both sides of a card in a single pass. The printer also offers optional card lamination capabilities and overlaminate options including PolyGuard™ LMX Overlaminates with various designs such as UV-resistant patches and custom holographic options for enhanced durability and security.

The Fargo HDP6600XE accepts standard CR-80 card sizes (3.375"L x 2.125"W / 85.6mm) and supports a wide range of card materials including PVC, ABS, PETG, smart cards, and magnetic stripe cards. The printer's flexible ribbon and overlaminate options accommodate various card types and surface finishes for diverse credential applications.

The Fargo HDP6600XE offers multiple print ribbon configurations including full-color YMCK (750 prints), YMCKK dual-resin black (600 prints), YMCFK with fluorescent panel (600 prints), YMCKH with heat seal panel (600 prints), and resin black only K (3000 prints). The printer also supports HDP clear film overlaminates (1500 prints) and various PolyGuard™ LMX overlaminate options in clear, standard holographic, or custom holographic designs. Contact us today to find the right consumables for your application.
