Evolis ZN1U0000MS-MD06 ID Card Printer
Full specifications (PDF)

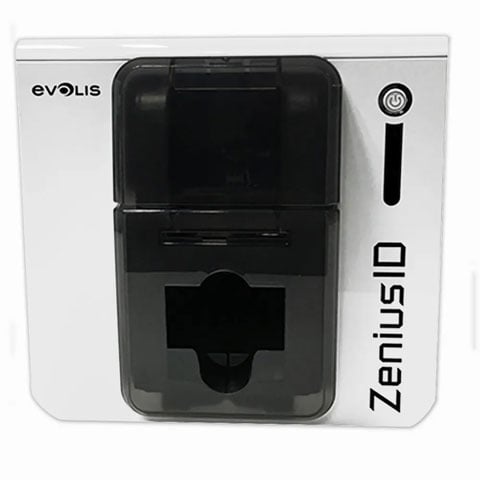

Evolis ZeniusID Model Overview
The Evolis Zenius card printer is designed for seamless desktop use, embedding advanced printing technology in a compact form. This versatile printer features direct-to-card dye-sublimation and resin thermal transfer printing, delivering exceptional image quality at a resolution of 300x300 dpi. It offers both monochrome and color printing capabilities, making it ideal for organizations looking to produce high-quality cards efficiently. With easy operation and a robust design available in fire red or grey brown, the Zenius is the perfect choice for businesses and events that demand reliability and performance.
Key Features:
- Compact Design: Ideal for desktop environments.
- Fast Printing Speeds: Up to 150 cards/hour for color and 500 cards/hour for monochrome.
- Intuitive Operation: Full front operation with graphical notifications and manual/automatic feeding options.
- Flexible Encoding Options: Supports magnetic, contact, and contactless encoding.
- User-Friendly Software: Comes with cardPresso XXS Lite for easy badge design and editing.
Specifications:
- Printer Design: Compact, available in fire red or grey brown.
- Print Technology: Direct-to-card dye-sublimation and resin thermal transfer.
- Print Resolution: 300x300 dpi offering 16 million colors.
- Printing Performance: Color YMCKO: up to 150 cards/hour; Monochrome: up to 500 cards/hour.
- Memory: Zenius Classic: 16 MB; Zenius Expert: 32 MB.
- Operating Environment: 15°/30° C (59°/86°F), Humidity: 20% - 65% non-condensing.
- Dimensions: 195 x 205 x 315 mm (7.68" x 8.07" x 12.4"), Weight: 3.3 kg (7.3 lbs).
- Warranty: 2-year warranty on printer and original print head.
Recommended Accessories
Category
- DuraClean (1)
- ID Card Printer Cleaner (3)
Recommended Accessories for Model: Evolis ZN1U0000MS-MD06 ID Card Printer
Top DuraClean Purchased With Evolis ZN1U0000MS-MD06
-
DuraClean DC-ACL002 ID Printer CleanerID Card Printer Cleaner, DuraClean ZeniusID, 2 pre-saturated 'T' cards, 2 adhesive cleaning cards, 1 printhead cleaning pen, Comparable to Evolis part#: ACL002, For select Primacy, Zenius, Elypso Evolis printersShips from vendor — chat for lead time$20.99
Top ID Card Printer Cleaner Purchased With Evolis ZN1U0000MS-MD06
-
Evolis ACL001 ID Printer CleanerEvolis High Trust Cleaning Kit - For Printer Head, Printer Rubber Roller - Presaturated - Compatible with: Primacy, Primacy 2, Zenius, Primacy 2 LE Printers.In Stock$24.00 -
Evolis ACL003 ID Printer CleanerEvolis Adhesive Card Cleaning Kit (for cleaning roller) 50 adhesive card, For: Zenius, Primacy & Elypso printersIn Stock$62.31 -
DuraClean DC-ACL002 ID Printer CleanerID Card Printer Cleaner, DuraClean ZeniusID, 2 pre-saturated 'T' cards, 2 adhesive cleaning cards, 1 printhead cleaning pen, Comparable to Evolis part#: ACL002, For select Primacy, Zenius, Elypso Evolis printersShips from vendor — chat for lead time$20.99
Frequently Asked Questions
What printing technology does the Evolis ZN1U0000MS-MD06 use?
The Evolis ZeniusID uses direct-to-card dye-sublimation and resin thermal transfer printing technology, delivering 16 million colors at 300x300 dpi resolution. This enables high-quality, edge-to-edge printing on both color and monochrome ID cards at speeds up to 150 cards per hour.
Can the Evolis ZeniusID printer be upgraded for dual-sided printing or smart card encoding?
Yes, the ZeniusID features a modular design that allows you to easily upgrade to dual-sided printing and smart card encoding capabilities as your business needs evolve. This upgradable architecture ensures your investment remains flexible for future requirements without requiring a complete printer replacement.
What card types and sizes does this Evolis ID card printer support?
The Evolis ZeniusID accepts ISO 7810 format Type ID 1 (CR-80) cards measuring 85.6 x 53.98 mm, with thicknesses ranging from 0.25 to 0.76 mm (10 to 30 mil). Supported materials include PVC, Composite PVC, PET, and ABS with special varnish.
What software is included with the Evolis ZeniusID printer?
The printer is delivered with cardPresso XXS Lite for badge design and editing, plus the Evolis Premium Suite for Windows, which includes a certified printer driver, Evolis Print Center for administration, and Evolis Printer Manager for monitoring and maintenance. The software supports 28 languages and is compatible with Windows 7 through Windows Server 2019, as well as Mac OS 10.7 and later.
Is the Evolis ZeniusID suitable for small office environments?
Yes, the ZeniusID is specifically designed with a compact footprint and sleek design ideal for desktop environments, welcome desks, sales counters, or office desks. Its small size and intuitive LED control panel make it an excellent choice for businesses with limited space that need professional ID card printing.
What security features does the Evolis ZeniusID offer?
The ZeniusID includes data encryption for secure printing, protecting sensitive information during the card personalization process. Additionally, the printer supports magnetic stripe encoding capabilities, making it suitable for secure ID cards, event passes, and other applications requiring enhanced security features.
