Evolis PM2-0028 ID Card Printer
Full specifications (PDF)

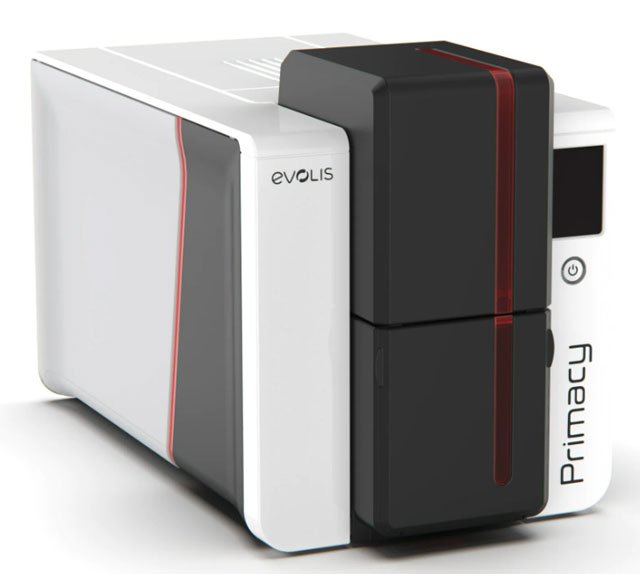

Evolis Primacy 2 ID Card Printer Model Overview
The Evolis Primacy 2 Printer is the ultimate high-performance solution for medium to large volume card printing. With blistering print speeds of up to 280 cards per hour and high-resolution capabilities, this printer produces vibrant, professional-quality cards ideal for all your identification needs. Tailor your designs with customizable graphics and various encoding options, ensuring a spectrum of security levels tailored to your requirements. The sleek, compact design paired with user-friendly features makes this printer a perfect addition to any workspace.
Key Features
- Fast Print Speeds: Up to 280 cards per hour (single-sided)
- High Resolution: 300 dpi for stunning quality
- Multiple Encoding Options: Magnetic, contact, and contactless options available
- User-Friendly Interface: LED panel or optional LCD touch screen
- Flexible Card Types: Supports PVC, PET, ABS, and rewritable cards
Specifications
- Print Technology: Color sublimation and resin thermal transfer
- Feeder Capacity: 100 cards (0.76 mm - 30 mil)
- Connectivity: USB and Ethernet; optional wireless
- Warranty: 3 years with optional extended coverage
- Dimensions: Compact and sleek design for easy integration
Frequently Asked Questions
What are the print speeds for the Evolis Primacy 2 card printer?
The Evolis Primacy 2 delivers up to 280 cards per hour for color printing on a single side. For dual-sided color printing (YMCKO-K), the printer produces 140 cards per hour. Monochrome printing speeds are significantly faster, ranging from 600 to 850 cards per hour depending on your configuration. We offer this high-performance printer to meet the demands of medium and large volume card production.
What encoding options are available on the Primacy 2?
The Evolis Primacy 2 supports multiple encoding options including magnetic stripe encoding (ISO 7811 and JIS Type II), ISO 7813 smart card contact stations, and contactless encoding for ISO 14443A, ISO 15693, MIFARE, DESfire, HID iCLASS, and Legic cards. Additional encoding options can be combined or installed on-site to meet your specific security requirements. Contact us today to discuss which encoding configuration best fits your card production needs.
What is the card capacity and what card types does this printer support?
The Primacy 2 features a 100-card input hopper and 100-card output hopper (with a 30-card reject tray), though a 200-card feeder can be integrated on-site for higher-volume operations. The printer handles all PVC, composite PVC, PET, and ABS cards, as well as special varnished cards, with thicknesses ranging from 0.25 to 1.25 mm. All cards must conform to the ISO CR80 format (53.98mm x 85.60mm). Visit barcodesinc.com to explore feeder options that match your production volume.
What security features does the Evolis Primacy 2 offer?
The Primacy 2 provides multiple layers of security including edge-to-edge printing on single or double-sided cards, UV effect printing, double-layer overlay options, and data protection through digital erasing and Kineclipse® technology. The printer also offers mechanical locking by key and supports various encoding methods for chip and magnetic stripe cards. We offer this comprehensive security suite to ensure your printed cards meet the highest compliance standards.
What connectivity and software options are included with the Primacy 2?
The Evolis Primacy 2 includes internal USB and IP connectivity ports for flexible network integration. It comes with the Evolis Premium Suite software optimized for Windows, Mac, and Linux, plus cardPresso XXS software for card personalization. The printer supports printing from smartphones and tablets, and features an LED panel or optional LCD screen with QR code display for intuitive operation. We include a USB cable (1.80m) and all necessary documentation to get you started quickly.
What are the operating environment requirements and warranty for the Primacy 2?
The Evolis Primacy 2 operates in temperatures between 15°C and 30°C (59°F to 86°F) with humidity levels of 20% to 65% non-condensing. Storage temperature range is -5°C to +70°C (-23°F to 158°F) with 20% to 70% non-condensing humidity. The printer includes a 3-year warranty when using Evolis High Trust® ribbons and consumables. Contact us today to ensure your installation environment meets these specifications and to learn about our support options.
