Evolis PM2-0008 ID Card Printer
Full specifications (PDF)

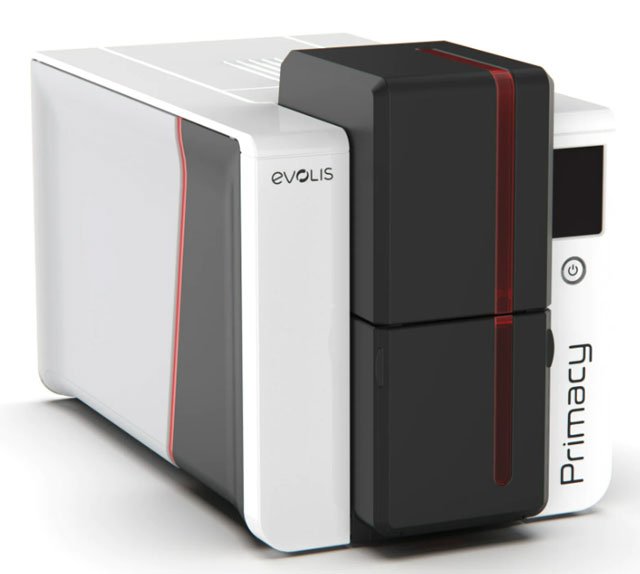

Evolis Primacy 2 ID Card Printer Model Overview
The Evolis Primacy 2 Printer is the ultimate high-performance solution for medium to large volume card printing. With blistering print speeds of up to 280 cards per hour and high-resolution capabilities, this printer produces vibrant, professional-quality cards ideal for all your identification needs. Tailor your designs with customizable graphics and various encoding options, ensuring a spectrum of security levels tailored to your requirements. The sleek, compact design paired with user-friendly features makes this printer a perfect addition to any workspace.
Key Features
- Fast Print Speeds: Up to 280 cards per hour (single-sided)
- High Resolution: 300 dpi for stunning quality
- Multiple Encoding Options: Magnetic, contact, and contactless options available
- User-Friendly Interface: LED panel or optional LCD touch screen
- Flexible Card Types: Supports PVC, PET, ABS, and rewritable cards
Specifications
- Print Technology: Color sublimation and resin thermal transfer
- Feeder Capacity: 100 cards (0.76 mm - 30 mil)
- Connectivity: USB and Ethernet; optional wireless
- Warranty: 3 years with optional extended coverage
- Dimensions: Compact and sleek design for easy integration
Frequently Asked Questions
What is the print speed of the Evolis Primacy 2 card printer?
The Evolis Primacy 2 delivers up to 280 cards per hour for color printing on a single side, making it one of the quickest card printers available for medium and large volume production. For dual-sided color printing, the speed is 140 cards per hour. Monochrome printing speeds are significantly faster, reaching 600–850 cards per hour depending on your configuration.
What encoding options does the Primacy 2 support?
The Primacy 2 supports multiple encoding options that can be combined to meet your security needs, including magnetic stripe encoding (ISO 7811 and JIS Type II), contact smart card encoding (ISO 7813 and EMV 2000-1), and contactless encoding (ISO 14443A/B, ISO 15693, MIFARE, DESfire, HID iCLASS, and Legic). Additional custom encoders are available upon request, allowing you to tailor the printer to your exact requirements.
Can the Primacy 2 print on both sides of a card?

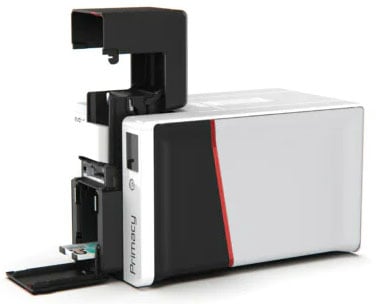

Yes, the Evolis Primacy 2 offers both single-sided and dual-sided printing capabilities with edge-to-edge coverage. Dual-sided printing uses a flip-over station, and you can also combine dual-sided printing with lamination options for enhanced security and durability.
What security features does the Primacy 2 offer?
The Primacy 2 provides comprehensive security features including UV effect printing, double-layer overlay protection, data deletion and scrambling with digital erasing and Kineclipse technology, and mechanical key locking to protect access to blank cards, ribbons, and rejected cards. These options can be combined to achieve the level of security appropriate for your application, from basic to highly complex card designs.
What are the operating environment requirements for the Primacy 2?
The Primacy 2 operates in temperatures between 15°C and 30°C (59°F to 86°F) with humidity levels of 20% to 65% non-condensing. For storage, the printer tolerates temperatures from -5°C to +70°C (-23°F to 158°F) with humidity between 20% and 70% non-condensing, and requires free air ventilation during operation.
How do I connect the Primacy 2 to my network and what software is included?
The Primacy 2 connects via USB or Ethernet (TCP-IP), giving you flexibility in how you integrate it into your infrastructure. We include the Evolis Premium Suite software optimized for Windows, Mac, and Linux, which offers an intuitive user experience and supports printing from smartphones and tablets. The printer also comes with cardPresso XXS software license for card personalization.
