Evolis PM2-0007 ID Card Printer
Full specifications (PDF)

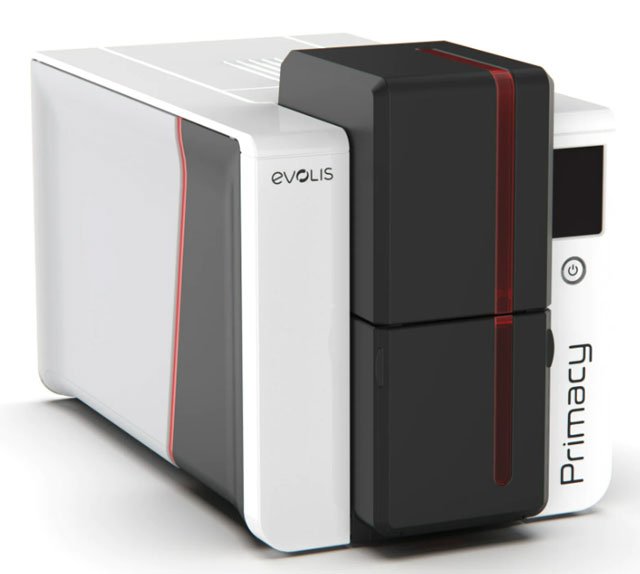

Evolis Primacy 2 ID Card Printer Model Overview
The Evolis Primacy 2 Printer is the ultimate high-performance solution for medium to large volume card printing. With blistering print speeds of up to 280 cards per hour and high-resolution capabilities, this printer produces vibrant, professional-quality cards ideal for all your identification needs. Tailor your designs with customizable graphics and various encoding options, ensuring a spectrum of security levels tailored to your requirements. The sleek, compact design paired with user-friendly features makes this printer a perfect addition to any workspace.
Key Features
- Fast Print Speeds: Up to 280 cards per hour (single-sided)
- High Resolution: 300 dpi for stunning quality
- Multiple Encoding Options: Magnetic, contact, and contactless options available
- User-Friendly Interface: LED panel or optional LCD touch screen
- Flexible Card Types: Supports PVC, PET, ABS, and rewritable cards
Specifications
- Print Technology: Color sublimation and resin thermal transfer
- Feeder Capacity: 100 cards (0.76 mm - 30 mil)
- Connectivity: USB and Ethernet; optional wireless
- Warranty: 3 years with optional extended coverage
- Dimensions: Compact and sleek design for easy integration
Frequently Asked Questions
What are the print speeds for the Evolis Primacy 2 card printer?
The Evolis Primacy 2 delivers up to 280 cards per hour for color printing on a single side, making it one of the quickest ID card printers available. For dual-sided color printing (YMCKO-K), the printer produces 140 cards per hour. Monochrome thermal transfer printing offers even faster speeds, reaching 600–850 cards per hour depending on your configuration.
What encoding options does the Primacy 2 support?
The Primacy 2 supports multiple encoding standards including magnetic stripe encoding (ISO 7811 and JIS Type II), ISO 7813 smart card contact stations, and contactless encoders compatible with ISO 14443A/B, ISO 15693, MIFARE, DESfire, HID iCLASS, and Legic technologies. Additional specific encoders are available upon request, and options can be combined to meet your security requirements.
What card capacity and hopper options are available?
We offer the Primacy 2 with a 100-card input hopper as standard, with a 200-card feeder available as an option that can be integrated on-site. The printer includes a 100-card output hopper and a 30-card reject tray, providing flexibility for medium to large volume production environments.
Can the Primacy 2 print on both sides of a card?
Yes, the Primacy 2 is available with a dual-sided printing module that enables edge-to-edge printing on both sides of the card. This capability allows you to maximize card real estate for complex designs, security features, and personalization while maintaining professional quality output.
What are the operating and storage environment requirements?
The Primacy 2 operates optimally between 15°C and 30°C (59°F to 86°F) with humidity levels between 20% and 65% non-condensing. For storage, the printer should be kept between -5°C and +70°C (23°F to 158°F) with humidity between 20% and 70% non-condensing. Ensure free air ventilation in your operating environment.
What connectivity options does the Primacy 2 offer?
The Primacy 2 includes USB and Ethernet connectivity options, allowing you to integrate the printer into your network infrastructure or connect directly to workstations. The printer also supports printing from smartphones and tablets through the Evolis Premium Suite, which is optimized for Windows, Mac, and Linux environments.
