Evolis PM2-0004 ID Card Printer
Full specifications (PDF)

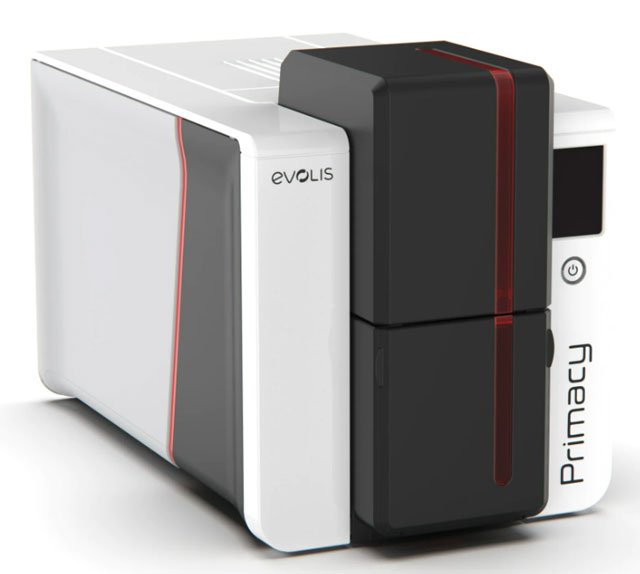

Evolis Primacy 2 ID Card Printer Model Overview
The Evolis Primacy 2 Printer is the ultimate high-performance solution for medium to large volume card printing. With blistering print speeds of up to 280 cards per hour and high-resolution capabilities, this printer produces vibrant, professional-quality cards ideal for all your identification needs. Tailor your designs with customizable graphics and various encoding options, ensuring a spectrum of security levels tailored to your requirements. The sleek, compact design paired with user-friendly features makes this printer a perfect addition to any workspace.
Key Features
- Fast Print Speeds: Up to 280 cards per hour (single-sided)
- High Resolution: 300 dpi for stunning quality
- Multiple Encoding Options: Magnetic, contact, and contactless options available
- User-Friendly Interface: LED panel or optional LCD touch screen
- Flexible Card Types: Supports PVC, PET, ABS, and rewritable cards
Specifications
- Print Technology: Color sublimation and resin thermal transfer
- Feeder Capacity: 100 cards (0.76 mm - 30 mil)
- Connectivity: USB and Ethernet; optional wireless
- Warranty: 3 years with optional extended coverage
- Dimensions: Compact and sleek design for easy integration
Frequently Asked Questions
What are the print speed and card capacity specifications for the Evolis Primacy 2?
The Evolis Primacy 2 delivers up to 280 cards per hour for color printing on a single side, making it one of the quickest card printers on the market. It features a high-capacity feeder available in 100 or 200-card configurations, with a 300-card output hopper capacity, allowing for efficient medium to large volume printing operations.
What encoding and security options does the Primacy 2 support?
The Primacy 2 supports multiple encoding options including magnetic stripe encoding (ISO 7811 and JIS Type II), ISO 7813 smart card contact stations, and contactless encoding (ISO 14443A/B, ISO 15693, MIFARE, DESfire, HID iCLASS, and Legic). Additional security features include UV effect printing, double-layer overlay, digital data erasing with Kineclipse®, and mechanical key locking to protect printed data.
What connectivity options and software are included with the Primacy 2?
The printer connects via USB or Ethernet (IP ports) and includes the cardPresso XXS software license for card personalization. It also features the Evolis Premium Suite optimized for Windows, Mac, and Linux, with support for printing from smartphones and tablets, providing flexible integration into your workflow.
What types of cards and printing modes can the Primacy 2 handle?
The Primacy 2 supports all PVC, composite PVC, PET, and ABS cards in ISO CR80 format (53.98mm x 85.60mm) with thickness from 0.25 to 1.25mm. It offers both color dye sublimation and monochrome thermal transfer printing, with edge-to-edge capability on single or double-sided configurations, plus rewrite technology for rewritable cards.
What is the warranty and what consumables are available for the Primacy 2?
The Evolis Primacy 2 comes with a 3-year warranty when using Evolis High Trust® ribbons and consumables. We offer a complete range of ribbons including color (YMCKO), metallic silver, metallic gold, signature panel, scratch-off, and hologram varnish options, along with starter cleaning kits to ensure optimal printer performance and longevity.
What are the operating and storage environment requirements for the Primacy 2?
The Primacy 2 operates in temperatures between 15°C and 30°C (59°F to 86°F) with humidity levels of 20% to 65% non-condensing. For storage, the printer tolerates temperatures from -5°C to +70°C (-23°F to 158°F) with humidity between 20% to 70% non-condensing, and requires free air ventilation for optimal operation.
