Evolis EACG4004U ID Card Printer

The Evolis EACG4004U ID Card Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Evolis Quantum - Evolis QUANTUM MIFARE ID Card Printer - Color - 3.6 Second Mono 25.7 Second Color - 300 dpi - Parallel, USB
  • A better-quality solution to print permanent-use documents
  • Print crisp and clear documents in either black or color with this color printer
Read More
Discontinued Need Assistance?
Add to Quote

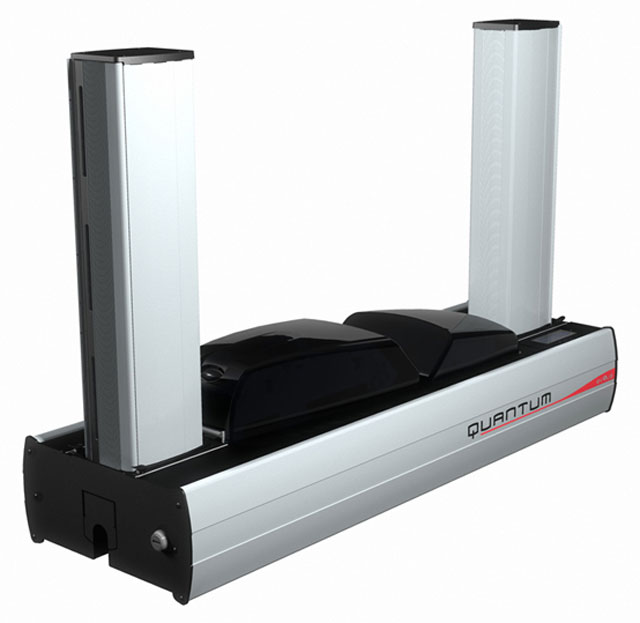

Evolis Quantum ID Card Printer Model Overview
The Evolis Quantum is a modular system and can be customized on-site by its user according to the need of the moment. Its features can be scaled to support specific and evolving requirements. The Quantum has different modules to speed up the personalization process and manage the printing and encoding processes at the same time. Quantum provides stunning printing performances: more than 1,000 cards per hour in monochrome and more than 150 cards per hour in color. With Quantum, all of the components have been engineered to support high-volume batches, while a new cleaning process and an airtight cover protect the system against dust. Convenience and ease of use Quantum is fully user-oriented. All core mechanical and electronic concepts have been designed to ease and speed up daily use and maintenance tasks. Quantum outperforms desktop printers and stands as an affordable alternative to industrial machines while bringing a wealth of features at a cost-efficient price.

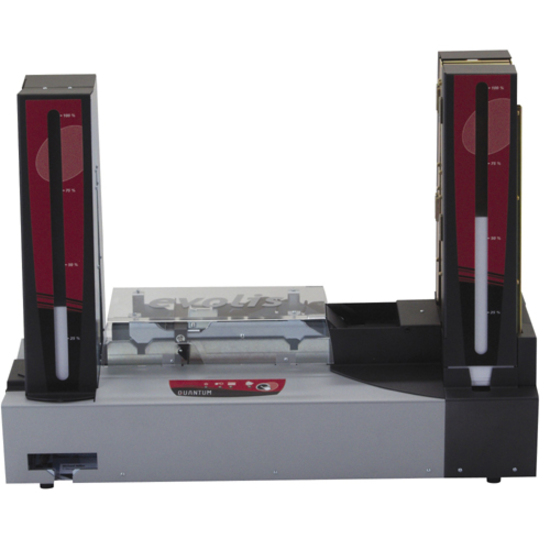

Evolis EACG4004U ID Card Printer Overview

The industrial card printer, ideal for high volume badge personalization With a 1000 card capacity for its card feeder, hopper and color ribbon, the Quantum is the only printer on the market to offer a total printing autonomy of 1000 cards in full color. High quality plastic card personalization. Quantum prints your texts, logos, photos and barcodes with an outstanding quality, either on single or dual-sided plastic cards. The Quantum is the ideal solution for markets that require volume and capacity service bureau, access control, time attendance, healthcare, telecommunications.

Technical Information
Recommended Use:
Card Print
Print Color Capability:
Color
Maximum Mono Print Speed:
3.6 Second
Maximum Color Print Speed:
25.7 Second
Maximum Print Resolution:
300 dpi
Interfaces/Ports
Parallel Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • PVC Card
  • PVC Composite
Media Size:
2.13" x 3.37" - CR-80 Card
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
20.1"
Width:
27.6"
Depth:
11.8"
Miscellaneous
Additional Information:
  • Flip-over module
  • Edge-to-edge printing
  • Contactless encoding unit
  • Integrated ribbon saver for monochrome printing
  • Color dye sublimation and monochrome thermal transfer
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Evolis EACG4004U ID Card Printer is also known as EACG4004U
