EverFocus EZN3160 Products

Part Number: EZN3160
Model: Parts
Add to My Shopping List Add to Compare
$563.58
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CMOS
Image Sensor Size
1/3"
White Balance Modes
AutoManualIndoorOutdoorOne Push
Color Supported
ColorMonochrome

Product Description:

  EverFocus EZN3160 Network Camera - H.264, MJPEG - 1280 x 1024 - 3.6x Optical - CMOS - Fast Ethernet
Explore all EverFocus Parts Accessories
Add to Quote
EverFocus EZN3160 Products
EverFocus EZN3160 Products

EverFocus Parts Accessory Model Overview

Products and parts from EverFocus.
EverFocus EZN3160 Products Overview

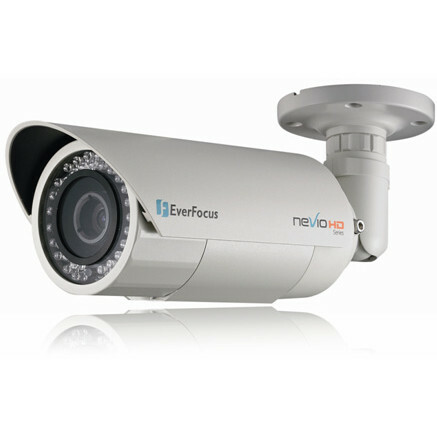

The EZN Plus series is an outdoor bullet camera delivering image quality of up to 3-megapixel. The camera supports both H.264 and MJPEG compression formats. The IP66-rating and vandal proof housing make it suitable for outdoor use. The IR LEDs are also implemented for infrared illumination in night vision applications.

Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3"
White Balance Modes:
  • Auto
  • Manual
  • Indoor
  • Outdoor
  • One Push
Color Supported:
  • Color
  • Monochrome
Field of View:
20° to 100°
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
1280 x 1024
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Maximum Aperture:
f/1.3
Optical Zoom:
3.6x
Digital Zoom:
10x
Focus Modes:
Adjustable
Exposure
Shortest Shutter Speed:
1/60000 Second
Longest Shutter Speed:
1/125 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP/IP
  • IPv6
  • UDP
  • ICMP
  • DHCP
  • NTP
  • DNS
  • DDNS
  • SMTP
  • SNMP
  • FTP
  • HTTP
  • HTTPS
  • PPPoE
  • UPnP
  • Bonjour
  • RTP
  • RTSP
  • RTCP
  • IGMP
  • ARP
  • ONVIF
  • PSIA
Interfaces/Ports
Analog Video Out:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Power Description
Maximum Power Consumption:
8 W
Physical Characteristics
Durability:
  • Vandal Resistant
  • Weather Resistant
  • Vandal Proof
Height:
3.8"
Width:
3.8"
Depth:
14.2"
Weight (Approximate):
3.57 lb
Miscellaneous
Features:
  • Motion Detection
  • 2D Digital Noise Reduction (2DNR)
  • 3D Digital Noise Reduction
  • Noise Reduction
  • SD Card Local Storage
  • Tamper Detection
Indoor/Outdoor:
Outdoor
Package Contents:
  • EZN3160 1.3 Megapixel + Wide Dynamic
  • 4-Pin Terminal Block
  • Quick Mounting Ring
  • Software CD
  • RJ-45 Connector
  • Quick Installation Guide
  • Mounting Kit
System Requirements:

Microsoft Internet Explorer 7 or above

Compatibility:
  • NTSC
  • PAL
Certifications & Standards:
  • IP66
  • CE
  • FCC
Ingress Protection Rating:
IP66
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0697101012256, 0775896541264
UPC: 697101012256, 775896541264
EAN: 0697101012256, 0775896541264
UNSPSC: 46171610
The EverFocus EZN3160 Products is also known as EVF-EZN3160 or EZN3160.
