System Components:
Digital Video Recorder

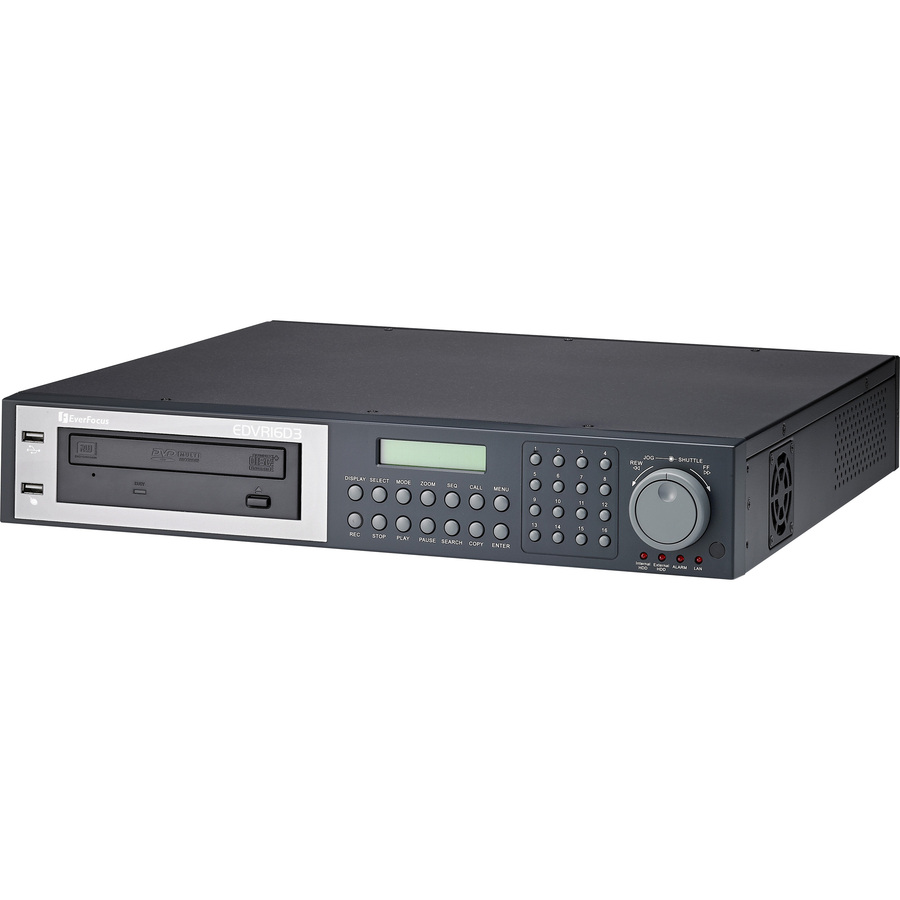

EverFocus EDVR16D1/500 Surveillance DVR
Part Number:
EDVR16D1/500
Model:
EDVR16D1
EverFocus EDVR16D1 Surveillance DVR Model Overview
The EverFocus EDVR16D1 features 16 loop-through camera inputs, full screen (up to 16 multiscreen) display for monitoring and playback, MPEG-4 compression, intelligent motion detection with programmable area and sensitivity for each camera, and real time recording (up to 120/100 FPS).
Technical Information
Storage
Hard Drive Capacity:
500 GB
Video
Video Formats:
MPEG-4
Video Signal Format:
- NTSC
- PAL
Maximum Resolution:
720 x 576
Maximum Frame Rate:
120 fps
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Network (RJ-45):
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
4
Total Number of Audio Out Ports:
1
Serial:
Yes
Number of VGA Out:
1
Power Description
Input Voltage:
- 220 V AC
- 240 V AC
Physical Characteristics
Height:
3"
Width:
15.8"
Length:
16.9"
Weight (Approximate):
14.11 lb
Miscellaneous
Additional Information:
- Pentaplex Operation (live, record, playback, archive & remote viewing)
- Built-in DVD+RW burner for video exporting
- Easy to use shuttle/jog wheel, front panel keypad & IR remote controller for command options
- Motion detection with adjustable sensitivity level and masking capability
- Watermark capabilities to identify authenticity of recorded data
- Event log for video loss, motion detection, alarm input/reset and power on/off
- Real time live display for all cameras
- User friendly on-screen menu with multi-language support
- Built-in watchdog timer
- Remote firmware upgrade function
- Free EverFocus DDNS service
Item Numbers
UNSPSC:
46171621
