EverFocus ED700 Products

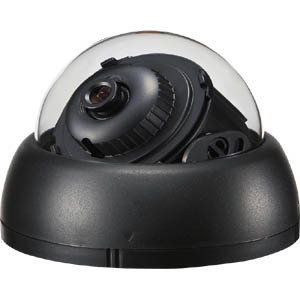

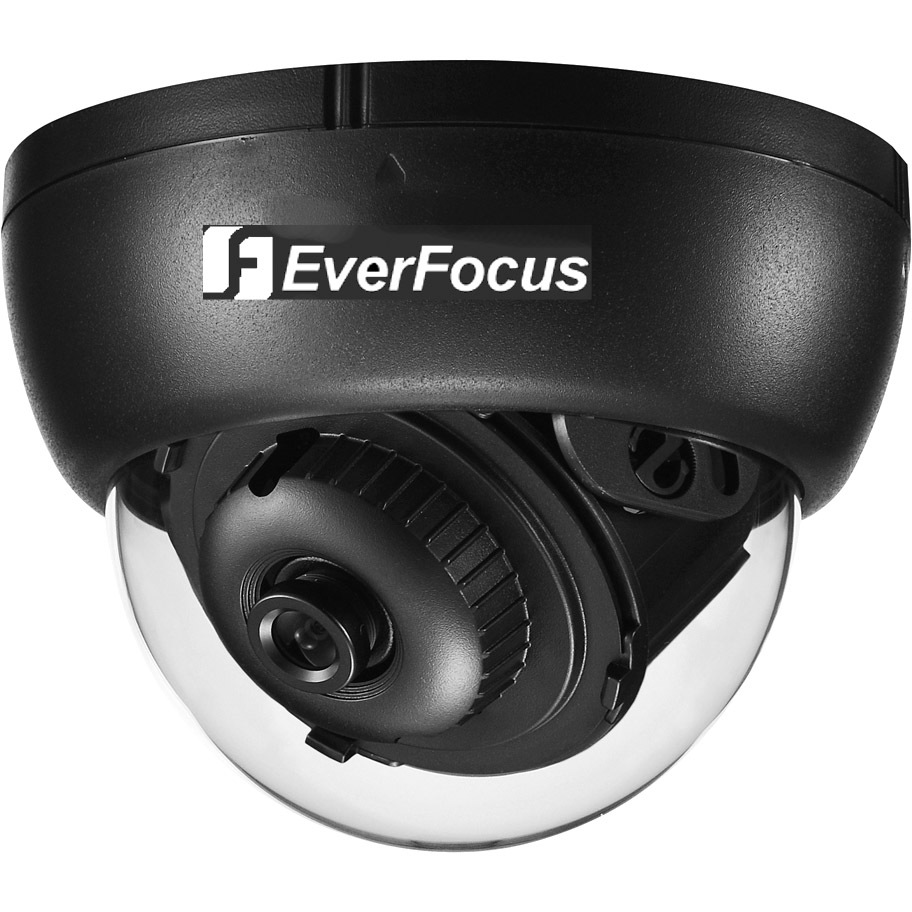

EverFocus - EverFocus Ultra ED700 Surveillance Camera - CCD
  • Low cost and affordable solution for surveillance applications
  • Features CCD image sensor
  • 3.60 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • Fixed Focus focus mode for accurate, dedicated shots with maximum efficiency
  • Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
  • Wired connectivity technology delivers exceptional performance to offer maximum usability
Read More
$72.46
Add to Quote
EverFocus Parts Accessory Model Overview
Products and parts from EverFocus.
EverFocus ED700 Products Overview

Get exceptional low light sensitivity and the ultra high resolution listed in the specs from the actual camera you install. The EverFocus Ultra Series EQ700 uses the Sony Exview HAD II 960H CCD to produce in excess of 720 horizontal TV lines of resolution from each and every Ultra Series 720+ camera we deliver; the resolution delivered by this advanced imaging technology will amaze you. Combine this with digital day/night, a native low light sensitivity of 0.05 lux, back light compensation (BLC) and highlight compensation (HLC) in a 3-axis wall or ceiling mount indoor plastic housing and you have a cost effective camera that fits a wide variety of indoor applications. The EQ700 comes with a 3.6mm lens (other focal lengths available -contact EverFocus) that covers a field of view 67° wide. With low 12VDC current draw, this is the package of price/performance camera features that you have been waiting for to create analog CCTV systems that produce astounding image clarity in a wide range of low light applications.

Display & Graphics
Image Sensor Type:
CCD
Maximum Illumination:
0.1 lux
Color Supported:
  • Color
  • Monochrome
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.60 mm
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Interfaces/Ports
Analog Video Out:
Yes
Power Description
Maximum Power Consumption:
1.32 W
Physical Characteristics
Height:
3.1"
Diameter:
4.1"
Weight (Approximate):
5.60 oz
Miscellaneous
Indoor/Outdoor:
Indoor
Package Contents:
  • Ultra ED700 Surveillance Camera
  • User Guide
  • 2 x Mounting Screws
  • Power Adapter Pigtail
  • Mounting Template
Compatibility:

NTSC

Certifications & Standards:
  • CE
  • FCC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The EverFocus ED700 Products is also known as EVF-ED700 or ED700.
