System Components:
Digital Video Recorder

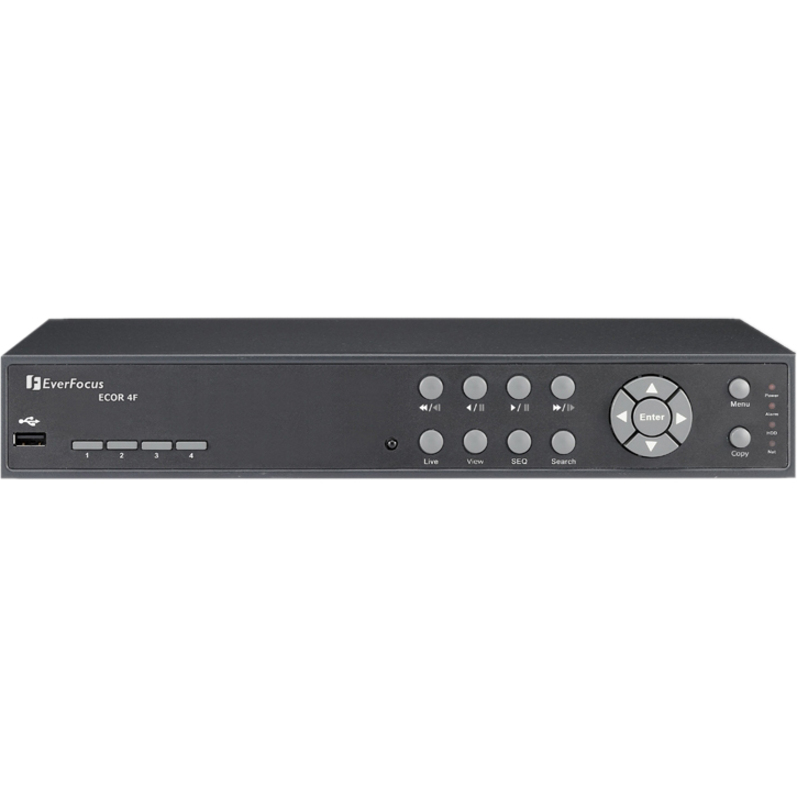

EverFocus ECOR4F/500 Surveillance DVR
Part Number:
ECOR4F/500
Model:
EverFocus Parts Accessory Model Overview
Products and parts from EverFocus.
EverFocus ECOR4F/500 Surveillance DVR Overview
The ECOR series DVR is based on MPEG-4 compression technology, resulting in enhanced recording capacity and improved network image transmission speed with high image quality. Comprehensive features and extended event recording settings enable the most universal application of this DVR series.
Technical Information
Storage
Hard Drive Capacity:
500 GB
Video
Video Formats:
MPEG-4
Video Signal Format:
- NTSC
- PAL
Maximum Resolution:
704 x 576
Maximum Frame Rate:
120 fps
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Network (RJ-45):
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
1
Total Number of Audio Out Ports:
1
Serial:
Yes
Number of VGA Out:
1
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
2.1"
Width:
12.6"
Depth:
8.2"
Weight (Approximate):
3.64 lb
Miscellaneous
Package Contents:
- ECOR4F500 4-Channel Digital Video Recorder
- User's Manual
- AC Adapter and Power Cord
- Handheld Remote Control (batteries included)
- Hard Drive Rack Mount
- SATA Connection Cable
- Pack of screws
Additional Information:
- Pentaplex operation (simultaneous live, record, playback, archive & remote viewing)
- Multi-language support
- Watchdog system health monitor
- User friendly Graphic User Interface (GUI)
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Item Numbers
GTIN:
0778890689161
UPC:
778890689161
EAN:
0778890689161
UNSPSC:
46171621
The EverFocus ECOR4F/500 Surveillance DVR is also known as
EVF-ECOR4F500
