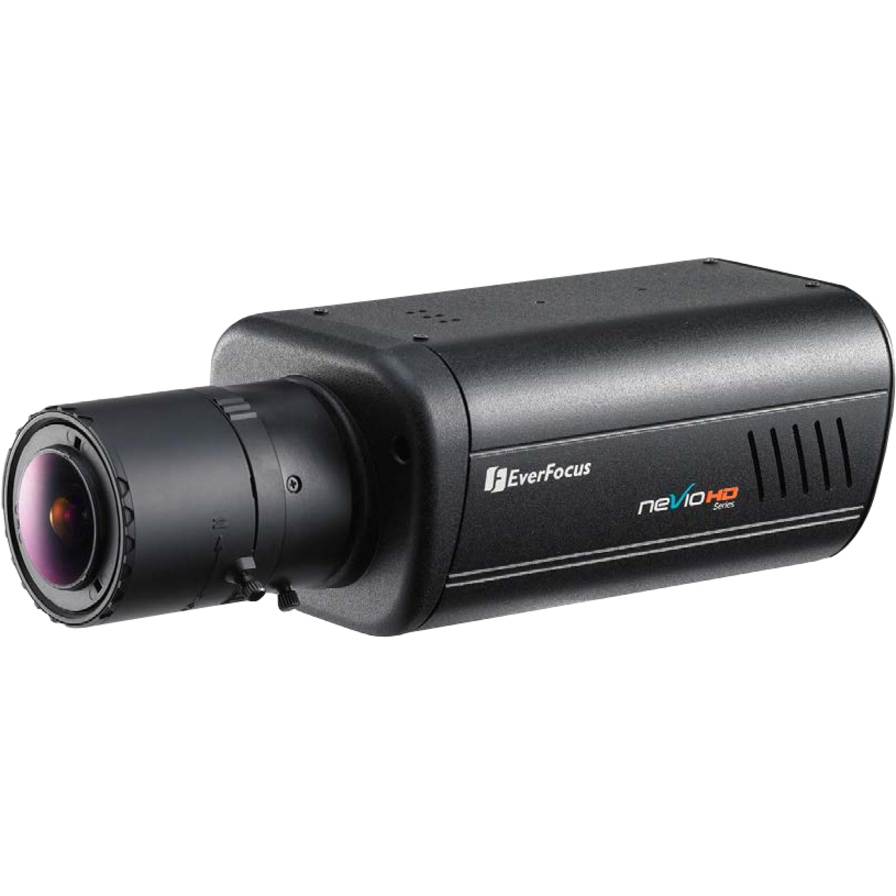

EverFocus EAN3300 Security Camera

EverFocus Box/Dome - EverFocus EAN3300 Network Camera - H.264, MJPEG - 2048 x 1536 - CMOS - Fast Ethernet
  • Network camera - Helps achieve high-quality video results
  • Up to 2048 x 1536 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Motion Detection feature for better reliance and usability
  • Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
Read More
$458.92
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
EverFocus Box/Dome Security Camera Model Overview
EverFocus Box/Dome High resolution security cameras.
EverFocus EAN3300 Security Camera Overview

The EAN Plus series is a box-type IP camera delivering image quality of up to 3-megapixel. The EAN Plus series features the Wide Dynamic Range (WDR) function, which can provide clear images even under back light circumstances where intensity of illumination can vary excessively. A built-in micro SD card slot and Power over Ethernet (IEEE802.3af) features are also provided. You can power the camera over the network or by connecting the camera to a 12V DC power supply. The camera also features H.264 / MJPEG multi-stream output for simultaneous live monitoring and high-resolution recording. Since the EAN Plus series conforms to ONVIF / PSIA for compatibility with other network video devices, it interoperates with a wide variety of hardware and software systems. The EAN Plus series is designed for simple installation and supports all types of indoor mounting applications.

Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.8"
White Balance Modes:
  • Auto
  • Manual
  • Indoor
  • Outdoor
  • One Push
Minimum Illumination:
0.1 lux
Color Supported:
  • Color
  • Monochrome
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Lens
Lens Included:
No
Lens Mount Type:
C/CS-mount
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP/IP
  • UDP
  • IPv6
  • ICMP
  • DHCP
  • NTP
  • DNS
  • DDNS
  • SMTP
  • SNMP
  • FTP
  • HTTP
  • HTTPS
  • PPPoE
  • UPnP
  • Bonjour
  • RTSP
  • RTP
  • RTCP
  • IGMP
  • ARP
  • ONVIF
  • PSIA
Controls/Indicators
Status Indicators:
  • OSD
  • Power LED
Power Description
Maximum Power Consumption:
6 W
Physical Characteristics
Height:
2.6"
Width:
2.2"
Depth:
4.6"
Weight (Approximate):
14.46 oz
Miscellaneous
Features:
  • Motion Detection
  • SD Card Local Storage
  • 3D Digital Noise Reduction
  • 2D Digital Noise Reduction (2DNR)
Indoor/Outdoor:
Indoor
Package Contents:
  • EAN3300 3 Megapixel Box Camera
  • Software CD
  • Quick Installation Guide
  • C-mount Lens Adapter
  • ¼-20 UNC Thread Mounting Bracket
  • 2 x Screws
  • Hexagon Wrench
  • Power Pigtail Cable
System Requirements:
  • Supported OS: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)
  • Processor: Intel Core2 Duo 2 GHz or higher
  • RAM: 1 GB
  • 100 Mbps Network Card
  • Screen Resolution: 1024 x 768 Pixels or higher, 32-bit Pixel Color Resolution
  • DirectX 9.0c
  • Supported Browsers: Microsoft Internet Explorer 7 or higher
Compatibility:
  • NTSC
  • PAL
Certifications & Standards:
  • CE
  • FCC
Platform Supported:
PC
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0697101011976
UPC: 697101011976
EAN: 0697101011976
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The EverFocus EAN3300 Security Camera is also known as EVF-EAN3300 or EAN3300.
