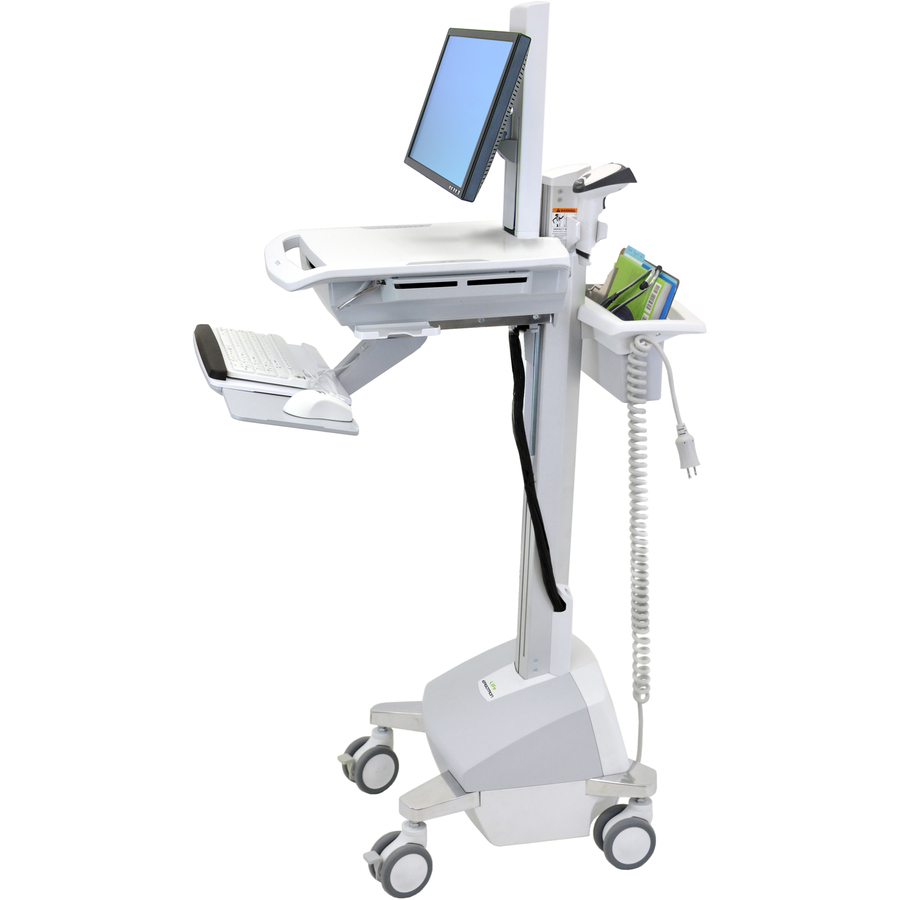

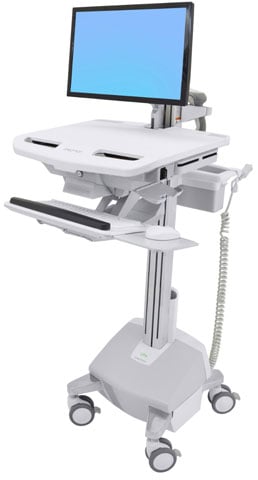

Ergotron SV42-6301-1 Mobile Cart

Ergotron StyleView SV42 - Mobile Carts, Ergotron, StyleView Cart with LCD Pivot, SLA Powered, North America
  • Carries load with ease
  • Can accommodate medium weight up to 35 lb
  • Healthcare is an excellent choice to safely handle healthcare with added mobility
  • The beautiful white color infuses an adequate appearance
  • Sturdy and durable Aluminum
Read More
Add to Quote
Ergotron StyleView SV42 Medical Mobile Cart Model Overview
Versatile and compact, Ergotron's StyleView SV42 Medical Carts adjust simultaneously to move the work surface and keyboard to match changing workflows. Designed for any caregiver, the electric lift removes user effort and supports multiple drawers and heavier loads. At the push of a button, caregivers can go from sitting to standing for a comfortable, ergonomic fit that adjusts farther and faster than our competitors"? electric carts.
  • Accessible solution reduces user forces with heavy cart loads or for caregivers with physical limitations
  • Truly ergonomic design accommodates the largest range of caregivers whether sitting or standing to promote wellness and productivity
  • Keyboard and display easily raises or lowers in one motion with a simple up-and-down switch
  • LiFe battery power makes the cart extremely lightweight and easy to move
  • Ultrafast recharge ensures caregiver and cart uptime while minimizing maintenance and replacement costs
  • For patient and caregiver safety, the entire power system and the full cart are being certified to UL/EN/IEC 60601-1 and complies with EMI limits of FCC Part 15 Class A
Ergotron SV42-6301-1 Mobile Cart Overview

Stay productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray.

Product Information
Maximum Load Capacity:
35 lb
Number of Casters:
  • Healthcare
  • Notebook
  • Tablet PC
  • Antimicrobial
  • Heavy Duty
  • Lockable
  • Cable Management
  • Adjustable Height
Battery Information
Number of Batteries Supported:
Battery Chemistry:
Sealed Lead Acid (SLA)
Battery Voltage:
12 V DC
Power Description
Input Voltage:
120 V AC
Power Source:
AC (Alternating Current)
Physical Characteristics
Product Color:
  • White
  • Gray
  • Polished Aluminum
Product Material:
  • Aluminum
  • Plastic
  • Zinc Plated Steel
Weight (Approximate):
129 lb
Package Contents:
  • StyleView EMR Cart with LCD Pivot, SLA Powered
  • LCD Pivot
  • Worksurface
  • Secure CPU Compartment
  • Four-Port USB Hub
  • Scanner Holder Bracket
  • Mouse Holder
  • Wrist Rest
  • Back-Tilt Keyboard Tray
  • Left/Right Mouse Tray
  • Rear Handle
  • Storage Basket
  • Cable Storage
  • 4 x Caster
  • 2 x Battery 66 Ah Power System
  • 10 Foot Coiled Cord
  • 3 x AC Outlet
  • Power System User Interface
  • StyleLink Software
Additional Information:
  • LCD: 22"
  • Lift: 25"
  • Tilt: 25°
  • Pan: 24°
  • Rotation: 90° P/L
  • NEMA 5-15P Hospital Grade Grounded Plug
  • Surfaces are treated with antimicrobial for product protection
  • Keyboard pans fully side-to-side for closer access while interacting with clients
  • Large smooth worksurface; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
  • Portrait screen orientation may be incompatible with widescreen displays > 19"
  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
  • LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits


  • 75 x 75mm
  • 100 x 100mm
Assembly Required:
Environmentally Friendly:
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Limited Warranty:
5 Year
Item Numbers
GTIN: 0698833022858
UPC: 698833022858
EAN: 0698833022858
UNSPSC: 42192404
