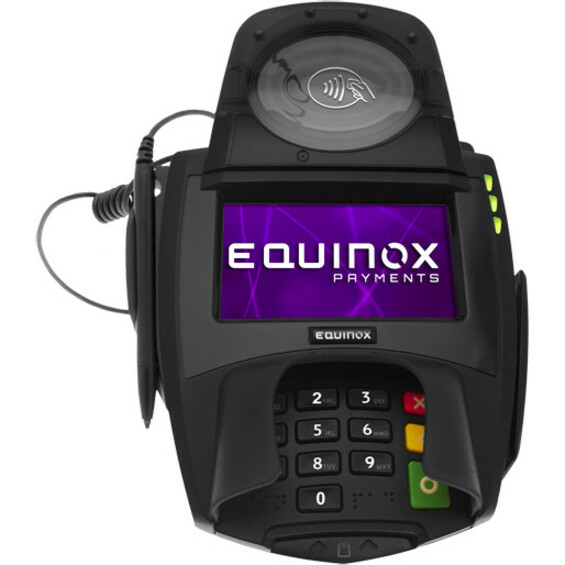

Equinox 010369-411E Payment Terminal


0.0

(No reviews)

Be the first to

Write a Review

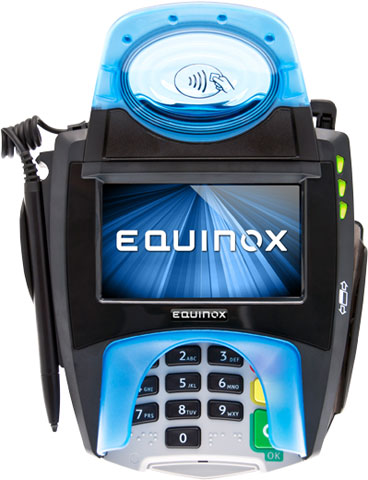

Equinox L5200 - PCI 3.0 with 4.3" display (black) PCI 3.0. Requires key injection in order to accept debit or credit card payments. Please call for more information.
Wide Color Screen Allows for Both Advertising and Electronic Signature Capture

The Equinox L5200 payment terminal features a 400 MHz, 32-bit processor for fast transactions and supports streaming or pre-loaded video clips. With its 64MB memory capacity (128MB optional) and a MicroSD memory expansion slot, the L5200 is equipped to handle new value-added applications or video advertising.

General Information

  • Product Type: Payment Terminal
  • Brand Name: Equinox Payments
  • Manufacturer: Equinox Payments, LLC
  • Product Model: L5200
  • Product Name: L5200 Customer Activated

Technical Information

  • Encryption:
    • DES
    • DUKPT
    • Triple DES

Physical Characteristics

  • Width: 6.8"
  • Depth: 2.5"
  • Color: Black
  • Length: 7.2"
  • Weight (Approximate): 1.80 lb

Interfaces/Ports

  • Interfaces/Ports:
    • RS-232 Serial
    • Powered USB
    • USB
    • RJ-45 Network
    • Audio Out

Other

  • Certifications & Standards:
    • EMV Levels I & II
    • PCI PTS 3.x Compliant
    • Interac
    • PCI PIN Security Guidelines 2.0 Normative Annex A
    • FCC ID
    • UL
  • Additional Information:
    • Video decoder
    • Via large, integrated side lit keypad
    • Rubber privacy shield
    • MicroSD port for additional memory expansion

Display & Graphics

  • Display Screen Type: LCD
  • Display Color: Color
  • Screen Size: 4.3"
  • Graphics Modes: WQVGA
  • Touchscreen: Yes
  • Display Resolution: 480 x 272

Power Description

  • Input Voltage Range: 100 V AC to 240 V AC
  • Input Voltage:
    • 110 V AC
    • 220 V AC
    • 12 V DC
    • 24 V DC

Built-in Devices

  • Built-in Devices:
    • Magnetic Stripe Reader
    • Smart Card Reader
    • Speaker

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 400 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Network Technology: Ethernet

Full specifications (PDF)

Full specifications (PDF)

Brand Equinox
Model L5200
Form Factor Signature Capture


Customer Review Summary

Recommended Accessories for Model: Equinox L5200 Payment Terminal
Protect Your Product

The Equinox 010369-411E is also known as Equinox Payments 010369-411E or 010369411E .
