Equinox 010314-014 Payment Terminal
Full specifications (PDF)

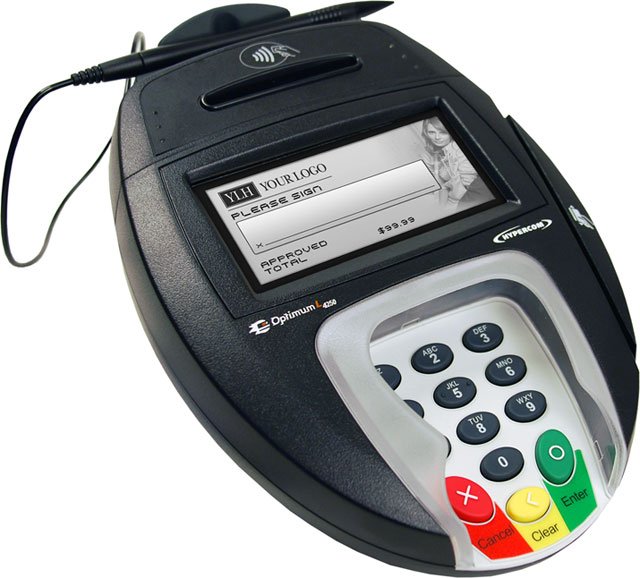

Equinox Optimum L4250 Payment Terminal Model Overview
The Optimum L4250 is a cutting-edge multi-lane payment terminal designed for efficiency and sleek style. With a compact footprint and advanced technology, it ensures smooth transaction processes and excellent customer experiences. The dual-sided bi-directional magnetic stripe reader achieves a remarkable 99.99% first-read rate, minimizing delays at the checkout. Additionally, its easy-to-read LCD screen not only enhances signature capture but also allows for customizable branding messages. The Intel XScale® 32-bit processor accelerates transaction speeds, making every lane a fast lane, while robust security features keep cardholder information safe and sound.
Key Features:
- 99.99% First-Read Rate: Dual-sided, bi-directional magnetic stripe reader for seamless transactions.
- Fast Processing: Intel XScale® 32-bit processor for rapid data transmission.
- Enhanced Security: DUKPT key management and DES/Triple DES encryption for maximum protection.
- Customizable Branding: LCD screen for displaying marketing messages and promotional content.
- ADA Compliance: Keypad and screen designed for users with disabilities.
Specifications:
- Processor: Intel XScale 200 MHz, 32-bit
- Keypad: 13 color-coded keys, water splash-resistant
- Display: LCD 220 x 80 pixels, 16-shade grayscale, backlit
- Card Reader: Dual-head bi-directional magnetic stripe, optional chip and contactless payment
- Memory: 4MB Flash / 8MB SDRAM
- Power: AC 100-240 V, 50/60 Hz; DC 12 V @ 500mA
- Weight: 1.29 lbs / 0.59 kg
- Footprint: 8.22 in x 6.06 in x 2.36 in
- Environment: Operating temperature 0-45°C, humidity max 85%
