Epson V11H824020 Digital Signage Display

Part Number: V11H824020
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Projection Method
RearCeilingFront
Minimum Focal Length
21.34 mm
Maximum Focal Length
37.99 mm
Maximum Diagonal Image Size
25 ft

Product Description:

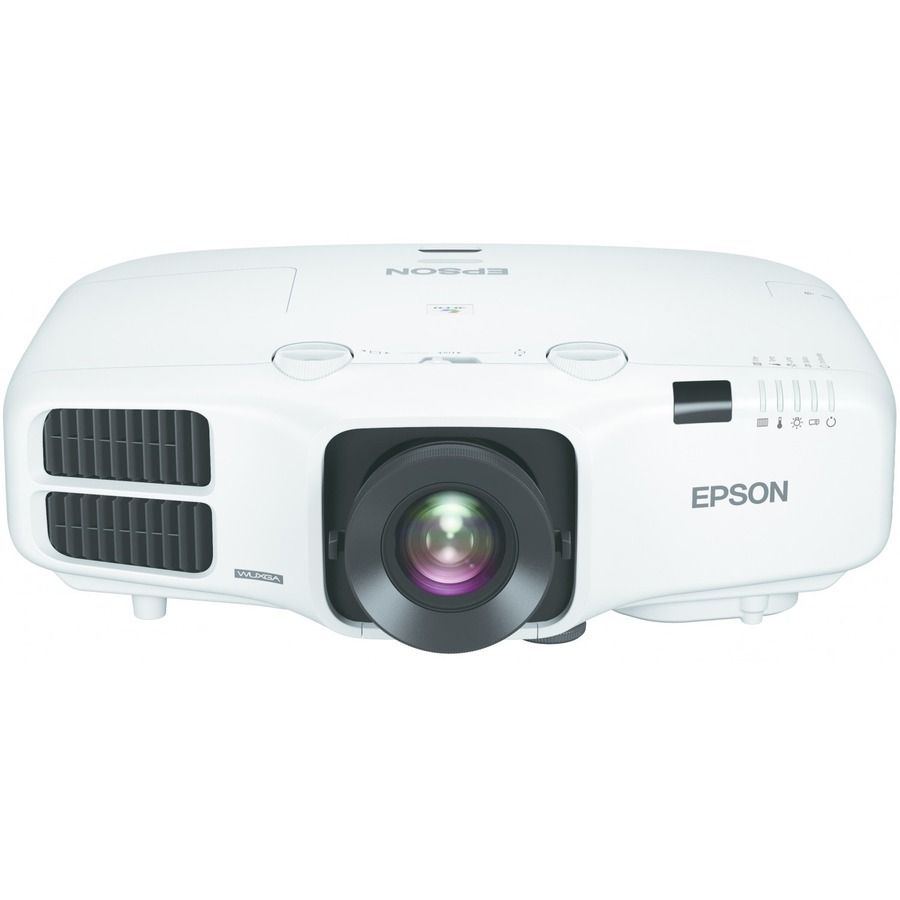

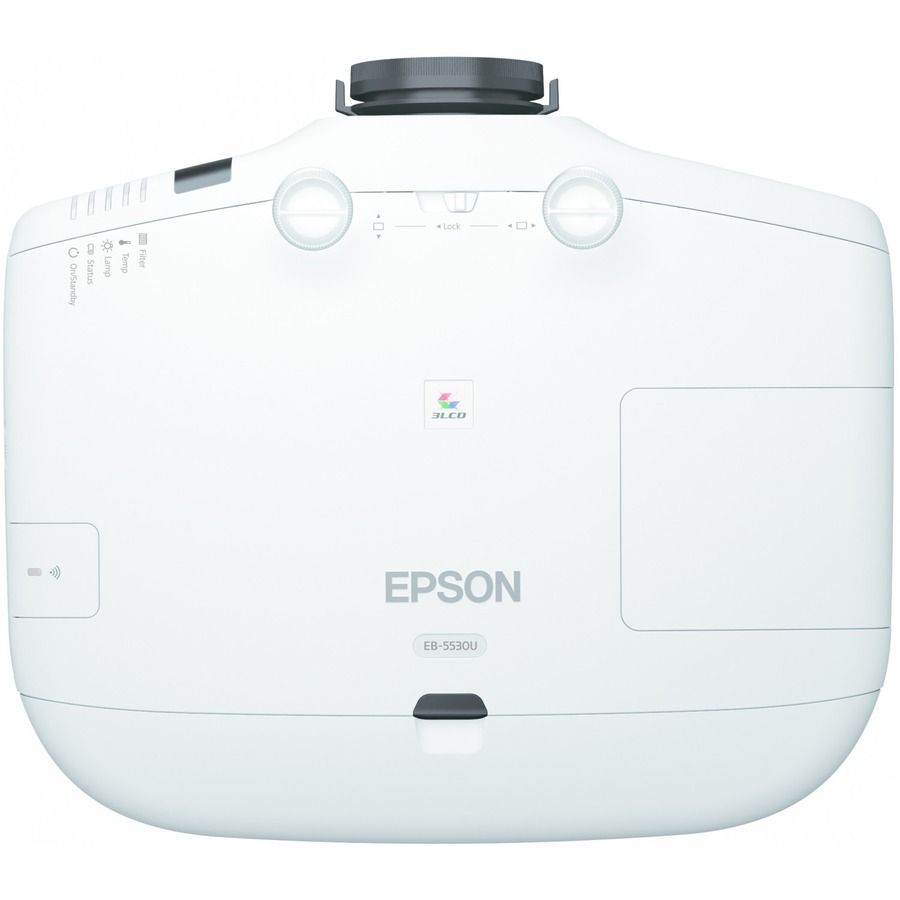

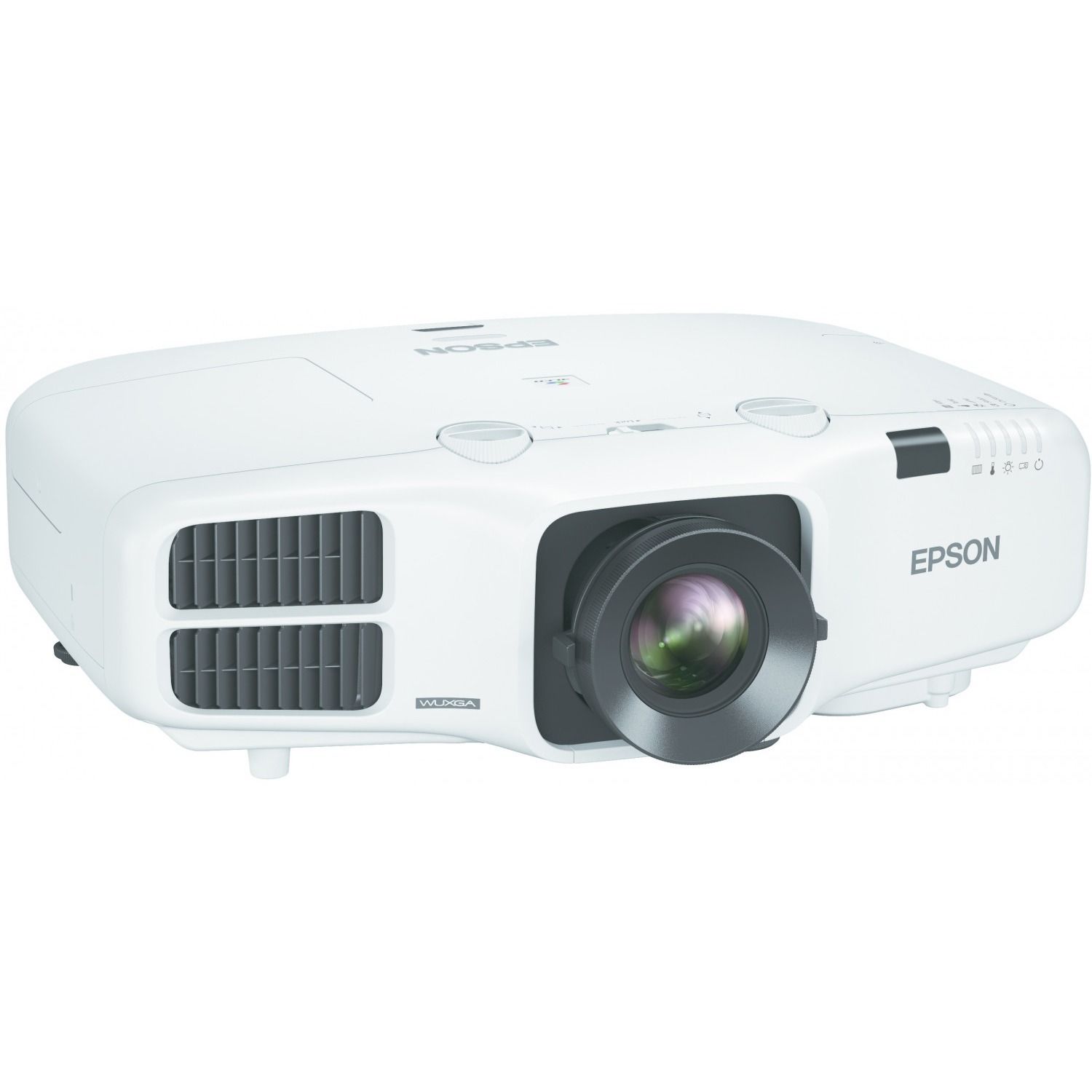

  Epson PowerLite 5530U LCD Projector - 16:10 - 1920 x 1200 - Rear, Ceiling, Front - 1080p - 5000 Hour Normal Mode - 10000 Hour Economy Mode - WUXGA - 15,000:1 - 5500 lm - HDMI - USB

Epson Parts Accessory Model Overview

Products and parts from Epson.
Epson V11H824020 Digital Signage Display Overview

Bright and Colorful

Features 5500 lumens of color brightness (color light output) and 5500 lumens of white brightness (white light output).

WUXGA Resolution

1920 x 1200 Full HD widescreen resolution

Lens Shift

Equipped with horizontal and vertical lens shift

HDMI Connectivity

Includes all-digital, HDMI audio and video connection, for HD quality with just one cable

HDBaseT

Combines HDMI, ethernet and RS-232 into one cable

  • 3x Higher Color Brightness and reliable performance - 3LCD, 3-chip technology
  • Look for two numbers -
  • The PowerLite 5530U has:
    • 5,500 lumens Color Brightness for accurate, vivid color
    • 5,500 lumens White Brightness for well-lit rooms
  • Crisp, detailed widescreen images up to 300" - WUXGA resolution (1920 x 1200) with Full HD 1080p support and up to 15,000:1 dynamic contrast ratio
  • Installation flexibility - up to ±50 percent vertical and ±10 percent horizontal lens shift
  • Wireless screen mirroring with Miracast - stream Full HD 1080p content and mirror your wireless Android device screen

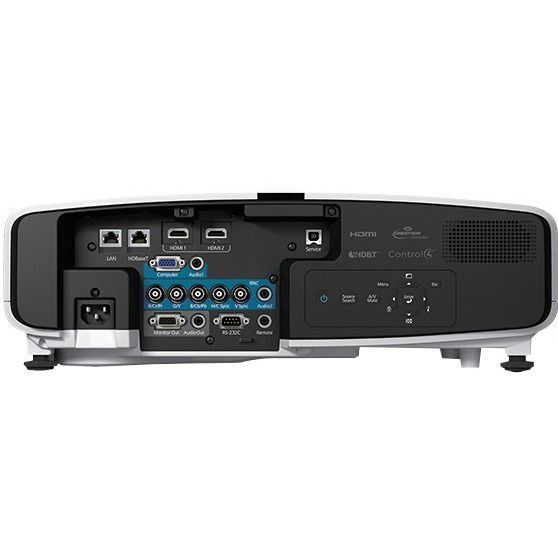

  • Advanced connectivity - HDBaseT and 2x HDMI® inputs for easy integration with any system
  • Enterprise-level wireless security - the optional wireless LAN module (sold separately) supports robust wireless network security protocols that help keep information safe
  • Remote network monitoring and control - plus Message Broadcasting and built-in scheduling functions
  • Long-lasting lamp - up to 10,000 hours in ECO Mode
  • Seamless integration tools - compatible with Crestron® RoomView® and Extron®
Technical Information
Projection Method:
  • Rear
  • Ceiling
  • Front
Projection Lens
Minimum Focal Length:
21.34 mm
Maximum Focal Length:
37.99 mm
Maximum Diagonal Image Size:
25 ft
Optical Zoom:
1.8x
Lamp
Number of Lamps:
1
Lamp Type:
UHE
Lamp Power:
300 W
Normal Mode Lamp Life:
5000 Hour
Economy Mode Lamp Life:
10000 Hour
Standard Mode Brightness:
5500 lm
Native Resolution:
1920 x 1200
Graphic Mode:
WUXGA
Native Aspect Ratio:
16:10
Contrast Ratio:
15,000:1
Video
Video Signal Standard:
HDTV
Output Scan Format:
1080p
Interfaces/Ports
HDMI:
Yes
USB:
Yes
Power Description
Operating Power Consumption:
462 W
Physical Characteristics
Height:
5.2"
Width:
18.5"
Depth:
12.6"
Weight (Approximate):
15.20 lb
Miscellaneous
Package Contents:
  • PowerLite 5530U WUXGA 3LCD Projector
  • Power Cable
  • Computer Cable (VGA)
  • Projector Remote Control With Batteries
  • User Manual CD
  • Easymp Software CD
  • Quick Setup Sheet
  • Registration Card And Lens Lock Screw
Item Numbers
GTIN: 0010343932593
UPC: 010343932593
EAN: 0010343932593
UNSPSC: 45111614
