Projection Method:
- Rear
- Front
Epson V11H744520 Projector
Part Number:
V11H744520
Model:
Parts
Epson Parts Accessory Model Overview
Products and parts from Epson.

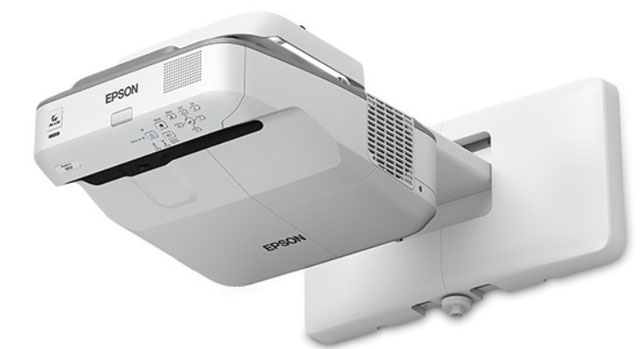

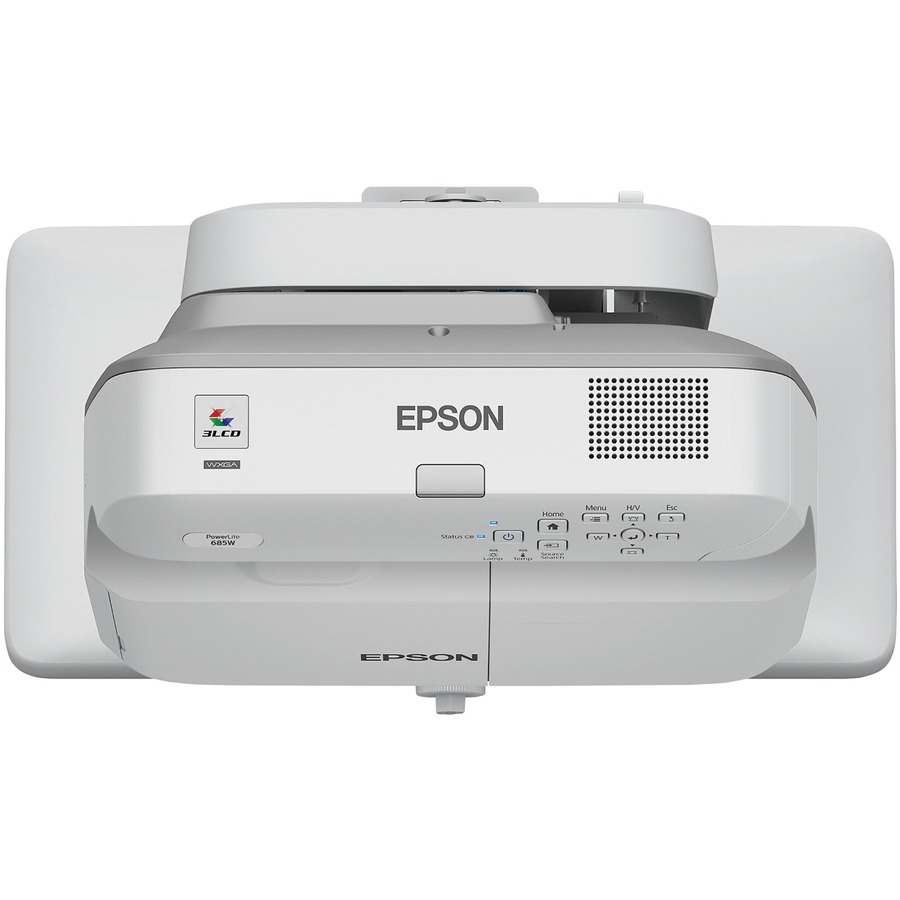

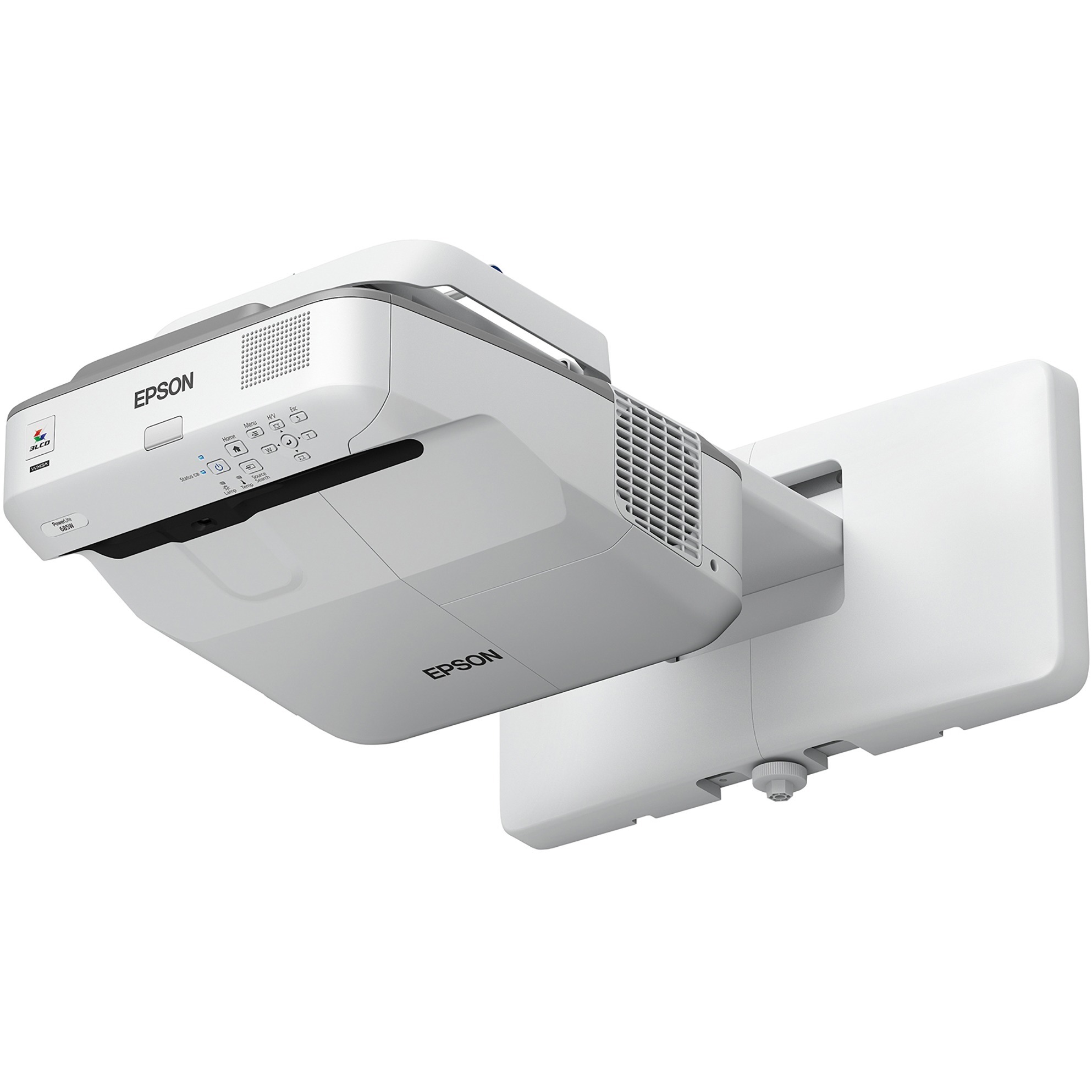

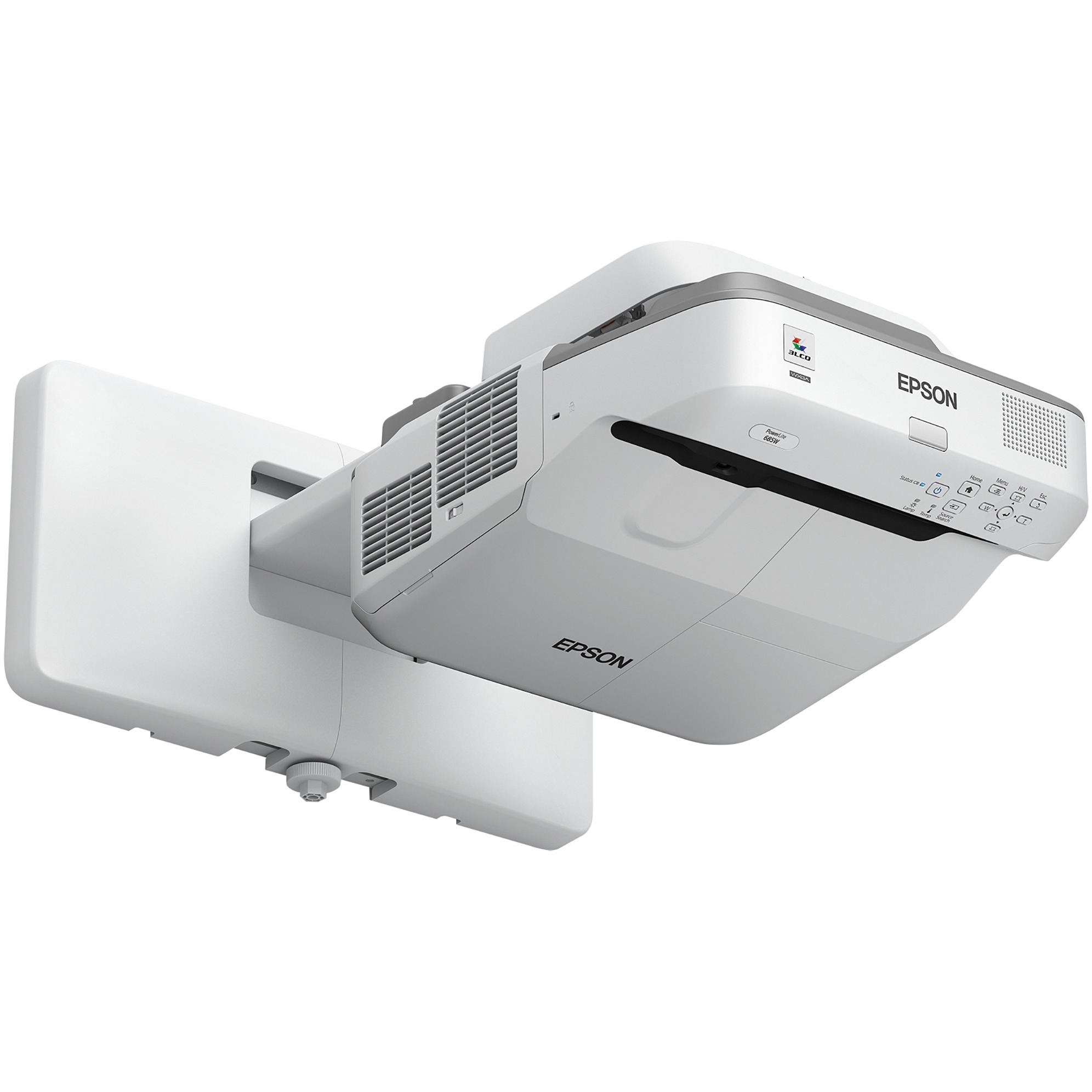

Epson V11H744520 Projector Overview
Take classroom collaboration to another level with this PowerLite WXGA 3LCD Presentation Display. Wide-screen, ultra-short throw display can be mounted 11" away from the board to project an image as large as 100" diagonally, providing optimal visibility and no shadow interference. 3LCD technology offers high color brightness to ensure bright, vivid images. Projector delivers 3,500 lumens of color and white brightness with 685 watts to produce stimulating presentations. WXGA resolution produces up to 1280 x 800 HD resolutions. Wireless functionality (module not included) lets teachers share content from multiple devices including Chromebooks. Connect up to four devices at once with Moderator software. Instantly project images from a PC or Mac using a USB connection. Built-in, 16-watt speakers produce lifelike sound. Lamp lasts up to 10,00 hours in ECO mode.
Technical Information
Display & Graphics
Native Resolution:
1280 x 800
Maximum Resolution:
1400 x 1050
Native Aspect Ratio:
16:10
Graphic Mode:
WXGA
Projection Lens
Throw Type:
Ultra Short Throw
Maximum Focal Length:
3.70 mm
Maximum Diagonal Image Size:
100"
Lamp
Number of Lamps:
1
Lamp Type:
UHE
Lamp Power:
250 W
Normal Mode Lamp Life:
5000 Hour
Economy Mode Lamp Life:
10000 Hour
Standard Mode Brightness:
3500 lm
Video
Video Signal Standard:
HDTV
Interfaces/Ports
HDMI:
Yes
USB:
Yes
Power Description
Operating Power Consumption:
373 W
Physical Characteristics
Height:
5.9"
Width:
14.5"
Depth:
15.8"
Weight (Approximate):
12.60 lb
Miscellaneous
Package Contents:
- PowerLite 685W WXGA 3LCD Presentation Display
- 15' Power Cord
- Projector Remote Control
- Batteries
- User Manual CD
- Projector Software CDs
- Quick Setup Sheet
- Installation Guide
- Template Sheet
- Projector Feet
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Item Numbers
GTIN:
0010343924642
UPC:
010343924642
EAN:
0010343924642
UNSPSC:
45111614
Frequently Asked Questions
What is the brightness output of the Epson PowerLite 685W projector?
The Epson V11H744520 PowerLite 685W delivers 3500 lumens of brightness, making it suitable for well-lit classroom and conference room environments. This brightness level ensures clear, visible projection even in rooms with ambient light.
What resolution and aspect ratio does the Epson PowerLite 685W support?
The Epson PowerLite 685W projector features WXGA resolution (1280 x 800) with a 16:10 aspect ratio, providing sharp image quality for presentations and multimedia content. This resolution is ideal for business and educational applications.
How long is the lamp life on the Epson PowerLite 685W?
The Epson PowerLite 685W offers up to 5000 hours of lamp life in normal mode and up to 10000 hours in economy mode, providing extended operational life and reduced maintenance costs. This extended lamp life is beneficial for high-usage environments like classrooms and training facilities.
What connectivity options are available on the Epson PowerLite 685W?
The Epson PowerLite 685W includes HDMI and USB connectivity, allowing flexible connection to laptops, media players, and other compatible devices. These standard interfaces ensure broad compatibility with modern presentation equipment.
Is the Epson PowerLite 685W an ultra short throw projector?
Yes, the Epson PowerLite 685W is an ultra short throw LCD projector, which means it can project large images from a short distance away from the screen. This design is ideal for compact spaces where traditional projectors cannot be positioned far enough back.
Can the Epson PowerLite 685W be mounted in different positions?
The Epson PowerLite 685W supports both rear and front projection mounting configurations, offering flexibility in installation based on your room layout and setup requirements. This versatility makes it suitable for various classroom and conference room configurations.
