Epson C31CH63A9981 Receipt Printer

Part Number: C31CH63A9981
Model: TM-m30II
Add to My Shopping List Add to Compare
$1,827.18

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Interface Options
Ethernet

Product Description:

  Thermal Receipt Printer, Epson TM-M30IISL-501, All-In-One, Autocutter, Ethernet and Wireless, Energy Star, Black
Explore all Epson OmniLink TM-m30II-SL Receipt Printers
Add to Quote
Epson C31CH63A9981 Receipt Printer
Epson C31CH63A9981 Receipt Printer
Epson C31CH63A9981 Receipt Printer
Epson C31CH63A9981 Receipt Printer
Epson C31CH63A9981 Receipt Printer
Epson C31CH63A9981 Receipt Printer Epson C31CH63A9981 Receipt Printer Epson C31CH63A9981 Receipt Printer Epson C31CH63A9981 Receipt Printer Epson C31CH63A9981 Receipt Printer
Full specifications (PDF)

Epson OmniLink TM-m30II-SL Receipt Printer Model Overview

The EPSON OmniLink TM-m3011-SL POS Thermal Receipt Printer combines cutting-edge technology with iconic design, making it the ideal solution for businesses operating in space-constrained environments. Featuring a built-in tablet mount, this compact thermal printer enhances efficiency while accommodating up to four POS peripherals for streamlined operations. With rapid print speeds of up to 250 mm/sec, reliable connectivity options including USB, Ethernet, and Bluetooth, and an impressive printhead life of 150 km, this printer not only meets modern business demands but also provides exceptional performance and durability.


Key Features

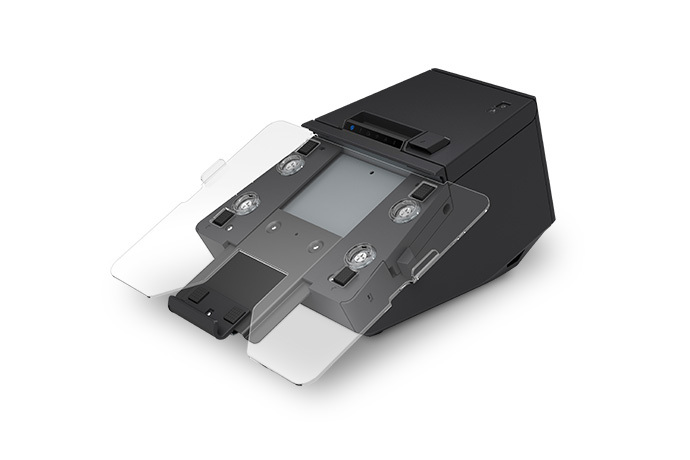

  • All-in-one design: Integrated tablet mount for secure locking, perfect for tight spaces.
  • Rapid print speeds: 250 mm/sec delivers quick receipts.
  • Broad connectivity: Supports USB, Bluetooth, and USB-Network-Tethering.
  • Efficient cable management: Designed for optimal organization of peripherals.
  • Extensive warranty: 2-year limited warranty ensures reliable service and support.

Specifications
  • Print Method: Thermal
  • Print Speed: 250 mm/sec
  • Print Resolution: 203 dpi
  • Media Dimensions: 80mm and 58mm width options
  • Interface: USB, Bluetooth (3.0)
  • Printer Reliability: 17 million printing lines, 2.2 million cuts
  • Dimensions: 11.4" x 12.7" x 6.5"
  • Weight: 7.7 lb (3.5 kg)
  • Color Options: Epson White, Epson Black
Epson C31CH63A9981 Receipt Printer Overview

A compact sleek POS printer with built-in tablet mount and convenient connectivity, the OmniLink TM-m30II-SL thermal receipt printer offers fast, easy setup in any setting - even space-constrained areas. Its modern industrial design gives users multiple configuration options and flexible positioning. Made to accommodate up to four POS peripheral devices via USB, this all-in-one POS printer can even charge a tablet and communicate data - all using a single USB cable1 (tablet and cable not included). The OmniLink TM-m30II-SL features USB-Network-Tethering, which enables network connection to tablets, making it perfect for locations that experience issues with wireless connectivity. And, it supports online ordering through Server Direct Print as well as cloud applications via OmniLink Merchant Services.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
9.84 in/s
Maximum Print Resolution (dpi):
203
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN/JAN-8
  • EAN/JAN-13
  • Code 39
  • Code 93
  • Code 128
  • ITF
  • Codabar (NW-7)
  • GS1-128
  • GS1 DataBar
  • Code 128-Auto
  • PDF417
  • QR Code
  • Maxi Code
  • Data Matrix
  • Aztec Code
  • Composite Symbology
Application/Usage:
Desktop
Features:
  • Compact
  • Auto-cutter
  • Cash Drawer Port
Mean Time Between Failures (MTBF):
41.1 Year
Mean Cycles Between Failures (MCBF):
65000000
Character Sets:
  • 95 Alphanumeric
  • 18 International
  • 128 x 43 Graphic
Print Head Life:
150 km
Connectivity Technology:
Wired & Wireless
Fonts Included:
  • Font A: 12 x 24 48 cpl (default)
  • Font B: 10 x 24 57 cpl
  • Font C: 9 x 17 64 cpl
  • Kanji Font A: 24 x 24 24 cpl
  • Kanji Font B: 20 x 24 28 cpl (Japanese)
  • 36 cpl (Korean)
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Wireless LAN:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Cutter Life:
2200000 Cuts
Media Types & Handling
Media Type:
  • Receipt
  • Roll Paper
Media Sensor:
  • Paper End Sensor
  • Cover Open Sensor
  • Paper Near End Sensor
Media Thickness:
3.15 mil
Maximum Roll Diameter:
3.27"
Maximum Label Width:
3.15"
Software
Operating System Supported:
Supported Operating Systems iOS®, Android™, Windows®, Mac® OS X®, GNU (Linux)
Power Description
Power Source:
  • Power Adapter
  • AC Supply
Input Voltage:
120 V AC
Environmental Conditions
Operating Temperature:
41°F (5°C) - 113°F (45°C)
Operating Relative Humidity:
10% - 90%
Physical Characteristics
Product Color:
Black
Height:
6.5"
Width:
11.4"
Depth:
12.7"
Weight (Approximate):
7.72 lb
Miscellaneous
Package Contents:
  • OmniLink TM-m30II-SL (embedded PS-180)
  • Power Switch Cover
  • Roll Paper (for checking initial movement of the printer)
  • Setup Guide
  • Lock Lever Cover
  • Screw (to secure the lock lever cover)
  • Large Tablet Table
  • AC Cable (Depending on configuration)
  • 58 mm Width Roll Paper Guides
Cables Included:
AC
Power Adapter Included:
Yes
Platform Supported:
  • PC
  • iOS
  • Android
  • Mac
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • SmartWay
Noise Level:
55 dB
System Requirements:
Supported Operating Systems iOS®, GNU (Linux)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512
