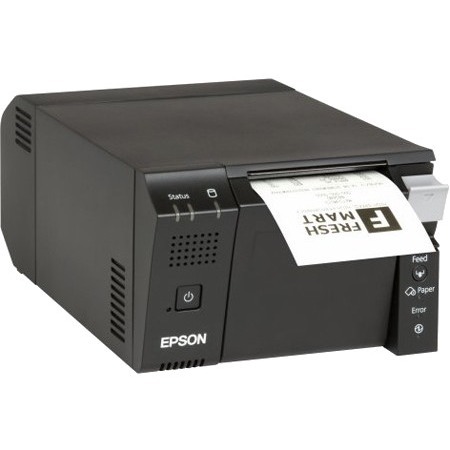

Epson OmniLink TM-T70II-DT Receipt Printer Model Overview
The OmniLink TM-T70II-DT offers retailers a POS system with maximum computing power and configuration flexibility. It includes a retail-hardened PC with a POSReady 7, Windows 7 Pro or Linux operating system powered by an Intel Atom 1.86GHz processor and Epson’s unique ePOS-Print technology enabling browser-based printing. It is all integrated into an ultra-small footprint and is ideal for mobile, Web-based and standalone POS and kiosk applications.

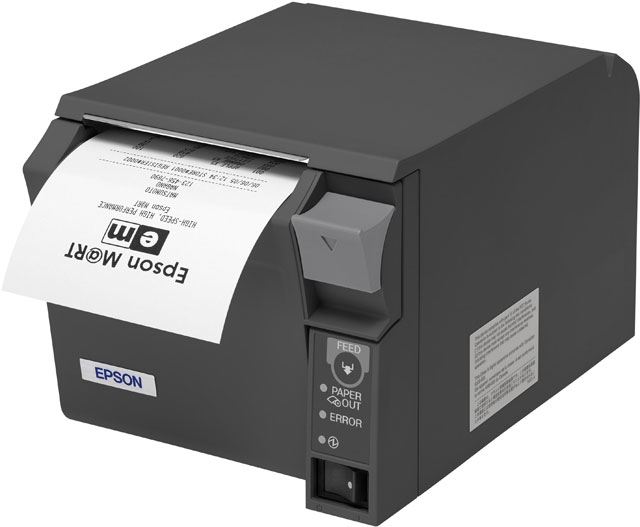

Epson C31CD51342 Receipt Printer Overview
Epson TM-T70II-DT Series
The TM-T70II-DT is equipped with an internal web server, a choice of Windows® Embedded POSReady or Linux and ePOS-Device, enabling retailers to take full advantage of web-based applications and thin client solutions. POS peripherals - such as scanners, magnetic stripe readers, customer displays, scales and EFT (electronic funds transfer) terminals - can be conveniently controlled through the web without the need for additional drivers, and connected using the printer's USB ports and VGA port.
Offering retailers significant cost savings, the TM-T70II-DT is a standalone, all-in-one solution that doesn't need a connection to a PC or POS terminal. This reduces the amount of hardware needed, cutting energy usage and reducing maintenance and servicing expenses. The printer's 'paper save' feature lower costs further.
The TM-T70II-DT provides full resilience, with local storage that can be used to back-up POS applications and databases - so if the network becomes disconnected, sales won't stop.
With a stylish, front loading papger design, the TM-T70II-DT can be placed under the counter and is available in a new tone of black color to match the latest mobile devices.
What operating systems are supported by the Epson C31CD51342 OmniLink TM-T70II-DT?
The Epson C31CD51342 supports POSReady 7, Windows 7 Pro, and Linux operating systems. The system is powered by an Intel Atom N2800 processor running at 1.86 GHz with 4GB of RAM and a 16GB SSD hard drive, making it suitable for mobile, Web-based, and standalone POS and kiosk applications.
What connectivity options does the Epson TM-T70II-DT receipt printer offer?
The printer features multiple connectivity options including Ethernet, USB, and Serial interfaces. This multi-interface design allows flexible integration into various POS environments and enables browser-based printing through Epson's unique ePOS-Print technology.
What is the print speed and resolution of the Epson C31CD51342?
The Epson C31CD51342 delivers a print speed of 9.84 inches per second in monochrome with a resolution of 180 x 180 dpi. It features a 2.83-inch print width and supports receipt and label printing up to 3.15 inches in width.
Is the Epson OmniLink TM-T70II-DT suitable for mobile POS applications?
Yes, the Epson OmniLink TM-T70II-DT is specifically designed for mobile POS and portable PC-POS solutions. Its ultra-small footprint, integrated retail-hardened PC, and multiple connectivity options make it ideal for retailers implementing mobile payment systems and kiosk applications.
What is the expected reliability and lifespan of the TM-T70II-DT printer?
The printer offers strong reliability with a Mean Time Between Failures (MTBF) of 360,000 hours and a Mean Copies Between Failures (MCBF) of 65,000,000 lines. The autocutter is rated for 1.7 million cuts, ensuring dependable long-term operation in high-volume retail environments.
What power requirements does the Epson C31CD51342 have?
The system includes a power supply and consumes approximately 9.1 watts when not printing and 78.9 watts when actively printing. The compact design and efficient power consumption make it suitable for various retail deployment scenarios.
The Epson C31CD51342 Receipt Printer is also known as
EPS-C31CD51342
or C31CD51342.
Full specifications (PDF)
