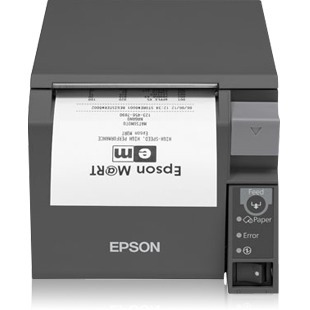

Epson OmniLink TM-T70II-DT Receipt Printer Model Overview
The OmniLink TM-T70II-DT offers retailers a POS system with maximum computing power and configuration flexibility. It includes a retail-hardened PC with a POSReady 7, Windows 7 Pro or Linux operating system powered by an Intel Atom 1.86GHz processor and Epson’s unique ePOS-Print technology enabling browser-based printing. It is all integrated into an ultra-small footprint and is ideal for mobile, Web-based and standalone POS and kiosk applications.

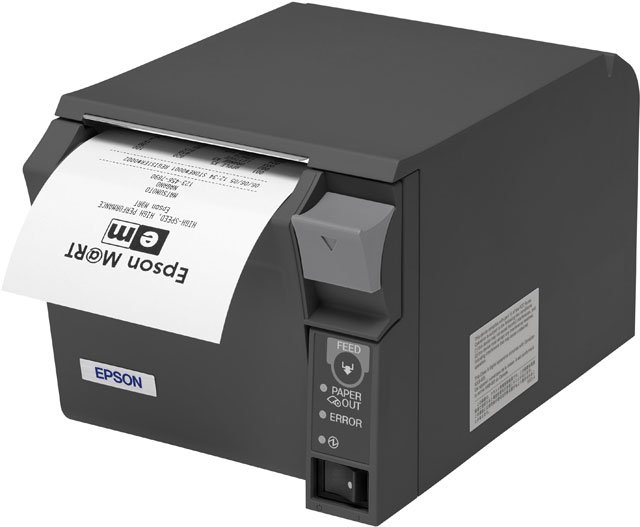

Epson C31CD38A9911 Receipt Printer Overview
The innovative, space-saving Epson TM-T70 printer with easy all-front access is the only receipt printer available today that is designed to operate entirely from the front of the printer. This means you can put it under a counter or on a shelf and free up your valuable counter space. The TM-T70 prints receipts and graphics at up to 250 mm/sec. And with its 180 dpi resolution you are assured of crisp, clear receipts and eye-catching logos. Barcodes are also supported, including 2D.
What interfaces and connectivity options does the Epson C31CD38A9911 support?
The Epson C31CD38A9911 offers multiple connectivity options including USB 3.0 (6 ports), USB 2.0, Ethernet (10/100/1000Base-T), VGA, HDMI, serial (D-sub 9pin), and a cash drawer connection (RJ12 6pin). This versatile connectivity makes it suitable for various POS environments, from traditional desktop setups to networked retail systems. We offer this printer with all necessary interface cables available for your specific deployment needs.
What is the print speed and resolution of this Epson thermal receipt printer?
The Epson C31CD38A9911 delivers a print speed of 9.84 inches per second in monochrome at 180 DPI resolution, making it efficient for high-volume receipt printing in retail environments. The printer supports 42/56 column capacity with multiple font options and can print both alphanumeric characters and barcodes (6 one-dimensional and 2 two-dimensional formats). Contact us today to discuss whether this speed and resolution meets your specific throughput requirements.
Is the Epson C31CD38A9911 suitable for mobile and web-based POS applications?
Yes, the OmniLink TM-T70II-DT is specifically designed for mobile POS and portable PC-POS solutions with an ultra-small footprint and browser-based printing via Epson's ePOS-Print technology. It integrates a retail-hardened PC with Intel Atom 1.86GHz processor and flexible operating system options (POSReady 7, Windows 7 Pro, or Linux), making it ideal for mobile, web-based, and standalone kiosk applications. Visit barcodesinc.com to explore how this solution fits your retail deployment strategy.
What are the durability and reliability specifications for this receipt printer?
The Epson C31CD38A9911 is built for long-term reliability with an MTBF (Mean Time Between Failures) of 360,000 hours for the printer component and 169,000 hours for the controller. The thermal printhead is rated for 120 km of printing, the autocutter supports 1.7 million cuts, and the printer can handle 65,000,000 lines of output. The unit comes with a 2-year warranty and meets UL/CSA safety standards plus RoHS and WEEE compliance requirements.
What paper specifications and label width does this printer support?
The Epson C31CD38A9911 supports a maximum label width of 3.13 inches with paper dimensions of 79.5 ± 0.5 x 83 mm and a maximum paper diameter of 83 mm. The printer uses direct thermal printing technology with front loading for easy paper installation. Available from us with all necessary supplies and configuration support for your specific receipt and label requirements.
What power requirements and consumption should I expect from this printer?
The Epson C31CD38A9911 operates on 24 Volts DC with power consumption of 9.1 W when idle and 78.9 W during active printing, making it energy-efficient for continuous retail operations. The AC adapter is rated for 150,000 hours MTBF, and power supply cables are sold separately to accommodate your specific installation needs. Contact us today for guidance on power supply options and installation requirements for your environment.
The Epson C31CD38A9911 Receipt Printer is also known as
EPS-C31CD38A9911
or C31CD38A9911.
Full specifications (PDF)
