Epson C31CC74741 Receipt Printer

Part Number: C31CC74741
Model: OmniLink TM-T88V-DT

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Interface Options
Ethernet

Product Description:

  Intelligent Thermal Printer, Epson TM88V-DT - Direct Thermal Printer - Monochrome - Desktop - Receipt Print - USB - 2.83" Print Width - 11.81 in/s Mono - 180 x 180 dpi - 3.15" Label Width - 16GB Hard Drive - Windows POS Ready - Atom N2800 - 4GB - Includes Power Supply - Color: White

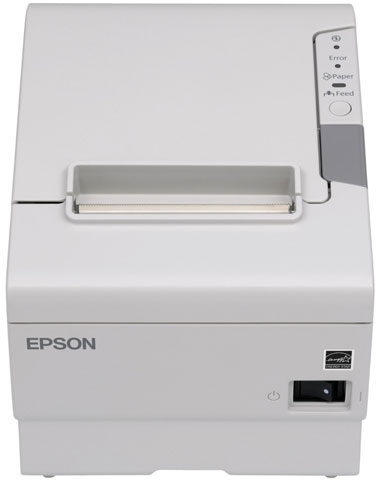

Epson OmniLink TM-T88V-DT Receipt Printer Model Overview

The Epson OmniLink TM-T88V-DT is an intelligent printer designed specifically for mobile and web-based POS applications. Offering a compact and retail-hardened solution, this printer integrates a PC with an Intel Atom processor and supports both POSReady 7 and Linux operating systems. With high-speed printing capabilities and print options that save up to 30% in paper usage, the TM-T88V-DT ensures efficiency without sacrificing performance. Its connectivity options, including Ethernet and optional Wireless-N, coupled with multiple USB ports, provide unparalleled flexibility for today's dynamic retail environments.


Key Features
  • Retail-hardened PC with integrated printer
  • High-speed printing up to 11.8"/sec
  • Flexible connectivity: Ethernet and optional Wireless-N
  • Supports mobile POS with web-based printing
  • Six USB ports for peripheral connectivity
  • Save on paper with options reducing usage by up to 30%

Specifications
  • Print Method: Thermal line printing
  • Print Speed: Max. 11.8"/sec for graphics and text
  • Operating System: POSReady 7 or Linux
  • Processor: Intel® Atom™ Processor (1.86GHz)
  • Memory: 4.0GB (DDR2-800)
  • Connectivity: USB 2.0 x 6, Ethernet, VGA
  • Dimensions: 5.71" x 10.98" x 7.20"
  • Weight: 7.05 lb
  • Warranty: 4 years for printer; 2 years for PC
  • MTBF: 360,000 hours
  • MCBF: 70,000,000 lines
  • Power Consumption: Approx. 1.8 A operating
Epson C31CC74741 Receipt Printer Overview

Epson's OmniLink TM-T88V-DT is designed to offer retailers a POS system with maximum computing power and configuration flexibility. The OmniLink TM-T88V-DT is optimizied for stability and performace, and with an ultra-small footprint it is ideal for retailers looking to implement mobile POS, Web-based POS configurations and kiosk appliances.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
11.81 in/s
Maximum Print Resolution (dpi):
180 x 180
Maximum Print Width:
2.83"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • Code 128
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • ITF
  • Codabar
  • PDF-417
  • QR Code
  • Maxi Code
  • Composite Symbology
  • GS1-128
  • GS1 DataBar Omnidirectional
  • GS1 DataBar Truncated
  • GS1 DataBar Limited
  • GS1 DataBar Expanded
Application/Usage:
Desktop
Processor & Chipset
Processor Speed:
1.80 GHz
Storage
Hard Drive Capacity:
16 GB
Memory
Standard Memory:
4 GB
Memory Technology:
DDR3 SDRAM
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Bluetooth:
Yes
Media Types & Handling
Media Type:
  • Roll Paper
  • Receipt
Media Thickness:
3.15 mil
Maximum Roll Diameter:
3.27"
Maximum Label Width:
3.15"
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Product Color:
White
Height:
5.8"
Width:
5.7"
Depth:
7.7"
Weight (Approximate):
3.50 lb
Miscellaneous
Package Contents:
  • TM-T88V-DT Receipt Printer
  • Power Supply
Power Adapter Included:
Yes
Platform Supported:
  • Mac
  • PC
Certifications & Standards:
  • FCC
  • ICES-003 Class A
  • UL1950
  • CSA C22.2 No. 950
  • 2004
  • 108
  • EC
  • EN55022 Class A
  • EN55024
  • IEC61000-4-2
  • IEC61000-4-3
  • IEC61000-4-4
  • IEC61000-4-5
  • IEC61000-4-6
  • IEC61000-4-11
  • TUV (EN60950-1)
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Item Numbers
GTIN: 5053615016749
EAN: 5053615016749
UNSPSC: 45101512
