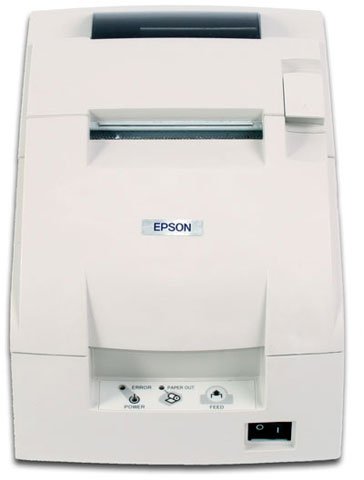

Epson C31C513A8691 Receipt Printer


0.0

(No reviews)

Be the first to

Write a Review
Epson TM-U220: TM-U220A - Impact printing, Ethernet interface, Auto-cutter, Take-up journal. Includes US power supply. Interface cables sold separately. Color: White

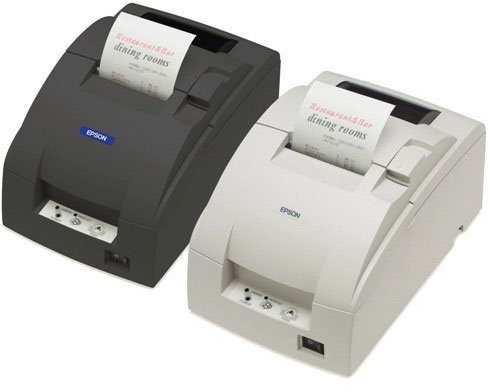

Epson's TM-U220: TM-U220A, TM-U220B, TM-U220D printers are the enhanced, more powerful successors to Epson's best-selling TM-U200 family.

All three printer models in the Epson TM-U220: TM-U220A, TM-U220B, TM-U220D series are optimized for high-speed throughput so customer receipts and kitchen orders print faster than ever. For maximum efficiency, the TM-U220 A (with journal take-up and auto-cutter), TM-U220 B (with auto-cutter only) and TM-U220 D (no options) all offer drop-in paper loading and two-color, black and red printing to highlight special offers and print more visible logos, and an adjustable paper width feature that allows you to use 58, 70 or 76 mm paper rolls for more flexibility and greater cost savings.

Technical Information

  • Maximum Mono Print Speed: 4.7 lps
  • Maximum Print Resolution: 180 dpi
  • Print Color: Monochrome
  • Number of Columns: 42
  • Number of Pins: 9-pin
  • Maximum Print Width: 2.50"
  • Recommended Use: Receipt Print
  • Features:
    • Auto-cutter
    • Take-up Journal Device

General Information

  • Product Type: Dot Matrix Printer
  • Product Series: TM-U220
  • Brand Name: Epson
  • Manufacturer: Epson Corporation
  • Product Model: TM-U220A
  • Product Name: TM-U220A Receipt Printer

Physical Characteristics

  • Height: 6.2"
  • Width: 6.3"
  • Depth: 11.3"
  • Form Factor: Desktop
  • Weight (Approximate): 5.95 lb
  • Color: Cool White

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TM-U220A Receipt Printer
    • AC Adapter C
    • TM-U220A Receipt Printer
    • AC Adapter C
  • Certifications & Standards:
    • VCCI class A
    • FCC class A
    • CE marking
    • AS/NZS 3548 class B
    • UL
    • CSA
    • TUV (EN60950)

Media Types & Handling

  • Maximum Label Width: 2.99"
  • Media Type: Roll Paper
  • Media Thickness: 3.35 mil
  • Maximum Roll Diameter: 3.27"

Power Description

  • Input Voltage: 24 V DC
  • Operating Power Consumption: 31 W
  • Standby Power Consumption: 2.20 W
  • Power Source: Power Adapter

Memory

  • Standard Memory: 4 KB
  • Flash Memory: 8 KB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Epson
Model TM-U220: TM-U220A, TM-U220B, TM-U220D
