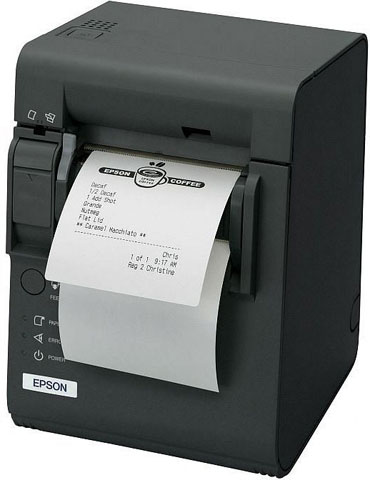

Epson TM-L90 Plus – Barcode Label Printer – 203 dpi – Direct Thermal – Peeler
Full specifications (PDF)
Epson TM-L90 Plus Receipt Printer Model Overview
Key features:
- High-speed printing of labels and receipts at 150mm/second.
- 203 x 203 dpi resolution for clear output.
- Compatible with leading business label software applications.
- Dual interfaces including built-in USB and optional interface options.
- Drop-in loading for rolls up to 90mm (3.5") in diameter.
- One-year limited warranty for peace of mind.
Specifications:
- Print Method: Thermal line printing
- Print Resolution: 203 x 203 dpi
- Print Speed: Up to 150mm/sec
- Barcode Formats: UPC-A, QRCode, and more
- Paper Width: 38mm (1.50") to 90mm (3.5")
- Reliability:
- MTBF: 360,000 hours
- MCBF: 70,000,000 lines
- Autocutter Life: 2 million cuts for receipts
- Dimensions: 5.5" x 5.8" x 8.0" (140 x 148 x 203 mm)
- Weight: Approx. 4.18 lb (1.9 kg)
- Power Consumption: Approx. 1.8A
- Operating Systems: Windows 2000/XP/Vista/7/8 and others
Frequently Asked Questions
What print speed and resolution does the Epson TM-L90 Plus deliver?
The TM-L90 Plus prints at speeds up to 150mm/sec with a sharp resolution of 203 x 203 dpi, making it ideal for high-volume label and barcode printing. This combination ensures both fast throughput and clear, scannable output for warehouse and logistics operations. We offer this model with serial interface and a peeler for streamlined label handling.
What connectivity options are available on the Epson C31C412A7401?
The TM-L90 Plus supports multiple interface options including RS-232C serial, parallel IEEE-1284, USB, Ethernet 10/100Base-T/TX, Bluetooth, and WiFi—though only one interface can be used at a time. This flexibility allows you to integrate the printer into your existing warehouse network infrastructure. The model we offer includes a serial interface as standard.
What media types and sizes can the TM-L90 Plus handle?
The printer handles a variety of print stock including labels, receipts, and tickets with paper widths of 38mm, 60mm, or 80mm and supports continuous printing on liner labels. Media thickness ranges from 2 mil to 8 mil depending on the media type, giving you flexibility for different labeling applications. Contact us today to discuss your specific media requirements.
Is the Epson TM-L90 Plus compatible with standard label software?
Yes, the TM-L90 Plus is compatible with leading business label software applications and includes Windows drivers for easy integration. It supports Windows 2000/XP/Vista/7/8 and Windows Embedded POS Ready systems, making deployment straightforward in most warehouse environments. Visit barcodesinc.com to verify compatibility with your specific software platform.
What are the power requirements and physical dimensions of this printer?
The TM-L90 Plus requires 24 VDC ± 7% power with approximately 1.8A mean power consumption and measures 5.5" x 5.8" x 8.0" (140 x 148 x 203 mm), weighing about 4.18 lb (1.9 kg). Its compact size makes it ideal for space-constrained warehouse and logistics environments. The model we offer includes the PS-180-343 power supply and AC cable.
What barcode formats does the TM-L90 Plus support?
The printer supports a comprehensive range of barcode symbologies including UPC-A, UPC-E, EAN, ITF, CODE39, CODE93, CODE128, CODABAR, PDF417, MAXICODE, and QR CODE. This broad compatibility ensures you can print virtually any barcode format required by your warehouse management or shipping systems. Available from us with full technical support for your labeling needs.
