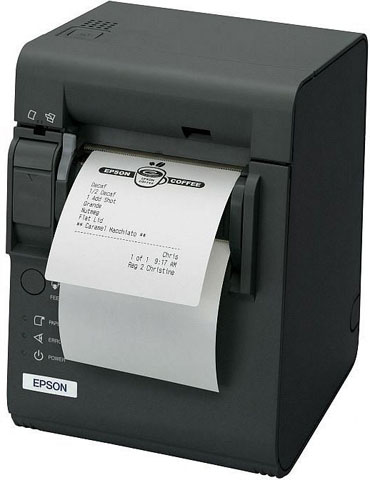

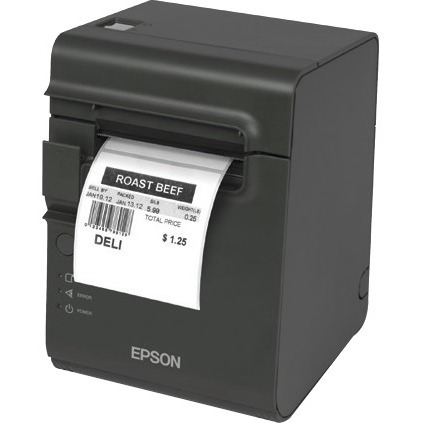

Epson's TM-L90 Plus thermal printer delivers a high-quality solution for both label and receipt printing, making it an ideal choice for retailers. With its fast print speeds of up to 150mm/second and a resolution of 203 x 203 dpi, you can efficiently handle multiple printing tasks without compromising quality. Its compatibility with leading business label software applications ensures it meets a variety of needs across different industries. The easy, drop-in paper loading system and compact design enhance convenience and reduce downtime, proving to be a cost-effective solution for businesses looking to streamline their operations. Key features:
High-speed printing of labels and receipts at 150mm/second.
203 x 203 dpi resolution for clear output.
Compatible with leading business label software applications.
Dual interfaces including built-in USB and optional interface options.
Drop-in loading for rolls up to 90mm (3.5") in diameter.
One-year limited warranty for peace of mind.
Specifications:
Print Method: Thermal line printing
Print Resolution: 203 x 203 dpi
Print Speed: Up to 150mm/sec
Barcode Formats: UPC-A, QRCode, and more
Paper Width: 38mm (1.50") to 90mm (3.5")
Reliability:
MTBF: 360,000 hours
MCBF: 70,000,000 lines
Autocutter Life: 2 million cuts for receipts
Dimensions: 5.5" x 5.8" x 8.0" (140 x 148 x 203 mm)
Weight: Approx. 4.18 lb (1.9 kg)
Power Consumption: Approx. 1.8A
Operating Systems: Windows 2000/XP/Vista/7/8 and others
Epson C31C412416 Barcode Label Printer Overview
Cost-effective label and receipt printing.
High-speed printing of labels and receipts - prints at a clear 203 x 203 dpi with print speeds up to 150 mm/sec
Ready to use with label software - compatible with leading business label software applications using Windows ® drivers Dual interfaces standard - including built-in USB plus one UIB interface
Get the flexibility you need - install the printer on a counter or wall using an optional wall-hanging bracket
Easy, drop-in paper loading - rolls up to 90 mm (3.5") in diameter. Paper roll spacer let's you adjust paper width from 38 mm to 70 mm (1.5" to 2.75")
Reliability you can count on - MCBF of 70 million lines and an auto cutter life up to 2 million cuts
Backed by the leader - designed and built with the high quality and reliability that Epson is known for
What print speeds and resolution does the Epson TM-L90 Plus offer?
The Epson TM-L90 Plus delivers print speeds up to 150mm/sec (5.9 inches/sec) with a clear resolution of 203 x 203 dpi. This combination ensures fast, high-quality barcode and label output suitable for warehouse and logistics operations. We offer this printer as a reliable solution for high-volume label and receipt printing.
What connectivity options are available on the C31C412416 model?
The Epson TM-L90 Plus (model C31C412416) features RS-232C serial connectivity, along with optional interfaces including parallel IEEE-1284, high-speed USB, powered USB, Ethernet 10/100Base-T/TX, Bluetooth, and WiFi (only one interface can be used at a time). This flexibility allows seamless integration into existing warehouse and IT environments. Contact us today to discuss which interface best suits your facility's infrastructure.
What media types and sizes can this printer handle?
The TM-L90 Plus handles a variety of print stock including labels, receipts, and tickets with a print width of 2.83 inches (40mm). It supports continuous printing on liner labels and is compatible with media ranging from 2 mil to 8 mil thickness. This versatility makes it ideal for multiple labeling applications in warehouse and logistics environments.
Is the Epson TM-L90 Plus compatible with standard label software?
Yes, the TM-L90 Plus is compatible with leading business label software applications using Windows drivers. It supports Windows 2000/XP/Vista/7/8, Windows Embedded POS Ready 7/2009, and Windows Server 2008/2012, ensuring broad software compatibility. Visit barcodesinc.com to verify compatibility with your specific labeling application.
What barcode formats does the TM-L90 Plus support?
The Epson TM-L90 Plus supports a comprehensive range of barcode symbologies including UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), ITF, CODE39, CODE93, CODE128, CODABAR, PDF417, MAXICODE, and QR CODE. This extensive barcode support makes it suitable for diverse warehouse and logistics labeling requirements. We offer this printer to support your complete barcode needs.
What power requirements and physical dimensions does this printer have?
The TM-L90 Plus requires 24 VDC ± 7% power with approximately 1.8A mean power consumption. It features compact desktop dimensions of 5.5" W x 5.8" D x 8.0" H and weighs approximately 4.18 lb (1.9 kg), making it ideal for space-constrained warehouse environments. The printer includes a PS-180-343 power supply with AC cable for immediate deployment.
The Epson C31C412416 Barcode Label Printer is also known as
EPS-C31C412416
or C31C412416.
Full specifications (PDF)
