Epson C223031 Receipt Printer

The Epson C223031 Receipt Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

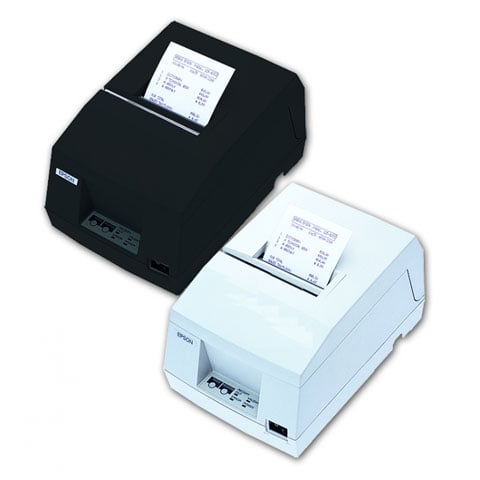

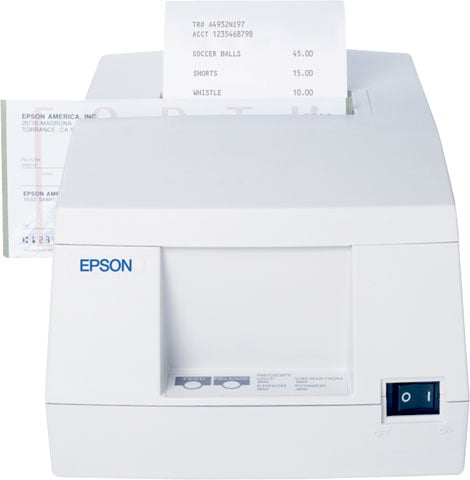

Epson TM-U325 - Epson TM-U325 Dot Matrix Printer - Parallel, Serial
Epson TM-U325 Receipt Printer Model Overview
A custom solution to your printing needs - the TM-U325 series features four models, each having different equipment and applications. and, thanks to the TM-U325 bi-directional printing, receipts are issued quickly.
Epson C223031 Receipt Printer Overview

The Epson TM-U325 is a cost-effective choice for environments that need the benefits of both receipt and validation printing all in one space-saving printer. Fast and quiet, the TM-U325 provides crisp, clean receipts and handles up to nine lines of validation printing. The drop-in roll paper loading system enables easy paper replacement and the semiautomatic paper loading function reduces the work for busy operators.

Technical Information
Number of Pins:
9-pin
Number of Columns:
42
Memory
Standard Memory:
4 KB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Reliability
MTBF:
180000 Hour
Power Description
Operating Power Consumption:
43 W
Physical Characteristics
Product Color:
  • White
  • Gray
Height:
5.4"
Width:
6.5"
Depth:
9.5"
Weight (Approximate):
5.07 lb
Miscellaneous
Additional Information:
  • Print Font: 7 x 9 or 9 x 9
  • Column Capacity: 40 or 42,33 or 35
  • Reliability (MCBF): 49 Million lines
  • Copy capability One original and two copies
  • Connect-It interfaces for system compatibility
  • Characters per inch 16 or 17.8 cpi,13.3 or 14.5 cpi
  • Character Set: 95 Alphanumeric, 32 International, 128 x 8 Graphic
  • Character Size 1.24 x 3.1mm (W x H),1.56 x 3.1mm (W x H); {0.049 x 0.122 ,0.061 x 0.122 }
  • Print Speed (Approximatly): 3.5 lps (at 40-column printing),6.4 lps (at 16-column printing)

Paper Dimensions (Maximum print lines 9 lines):

  • Receipt: 76±0.5 x diameter 83mm (2.99±0.02 x diameter 3.27 )
  • Validation: 135 to 182 x 70 to 182mm (W x L) {5.31 to 7.17 x 2.76 to 7.17 }

Paper Thickness:

  • Receipt 0.06 to 0.085mm,sheet thickness: 0.2mm or less
  • Validation 0.09 to 0.12mm,sheet thickness: 0.09 to 0.31mm
Certifications & Standards:

EMI Standards:

  • FCC class A
  • CE marking

Safety Standards:

  • UL
  • CSA
Platform Supported:
PC
Item Numbers
GTIN: 0783555019764, 0853585467191
UPC: 783555019764, 853585467191
EAN: 0783555019764, 0853585467191
UNSPSC: 43212102
Questions? Get help from
a POS Expert!

What is your POS application?

The Epson C223031 Receipt Printer is also known as EPS-U325PD or C223031.
