Full specifications (PDF)
Print Color Capability:
Monochrome
Maximum Mono Print Speed (cps):
1550
Number of Pins:
9-pin
Number of Columns:
136

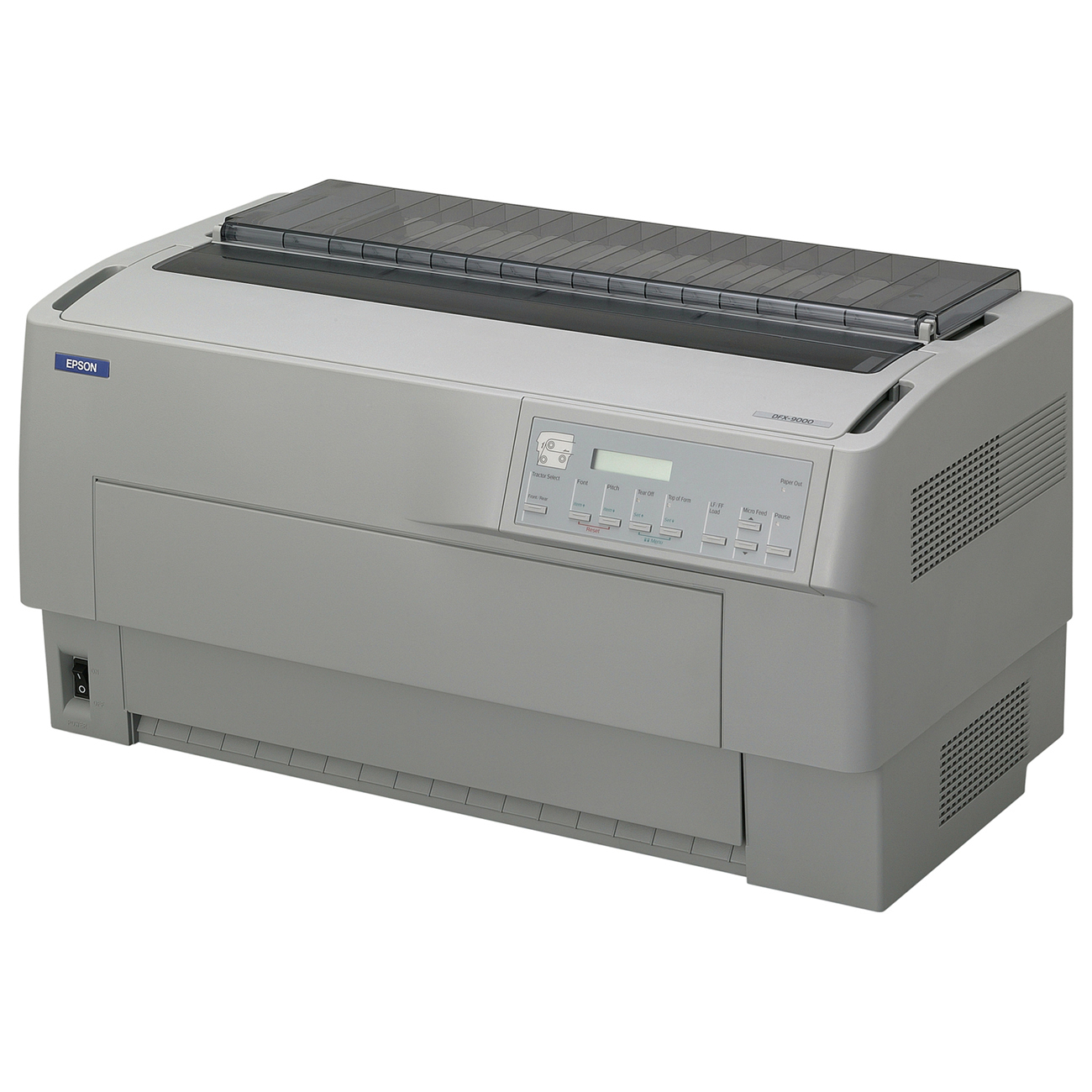

Epson DFX-9000 Line Printer Model Overview
With speeds up to 1550 cps and an MTBF rating of 20,000 power-on hours, the Epson DFX-9000 offers the power and durability to tackle the most demanding print tasks. Day after day, you can count on it to efficiently process everything from reports and 10-part forms to shipping documents or mailing labels. Its advanced paper handling capabilities make it the perfect solution for a wide variety of applications, including critical spreadsheets, checks, invoices, bar codes and more. With Parallel, Serial, and USB interfaces standard, plus a type-B slot for optional connectivity, the DFX-9000 easily attaches to new or legacy systems in standalone or networked environments.
Epson C11C605001 Line Printer Overview
A robust, dependable workhorse, the 9-pin, wide-format DFX-9000 printer boasts a 400-million character print head life and 15-million character ribbon cartridge, which minimizes production costs and reduces the need for frequent user intervention. Its advanced paper handling capabilities make it the perfect solution for a wide variety of applications, including critical spreadsheets, checks, invoices, bar codes and more.
Technical Information
Memory
Standard Memory:
128 KB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
USB Standard:
USB 1.1
Display & Graphics
Display Screen Type:
LCD
Media Types & Handling
Media Type:
- Continuous Form
- Multiple Part Form
- Label
Media Size:
- Custom Size
- 3"
- 16.50"
- 17"
- 2.50" x 0.94"
Media Handling:
- Push Tractor - Front
- Push Tractor - Rear
Maximum Print Size:
17"
Fonts & Emulation
Language Emulation:
- Epson ESC/P
- PPDS
Reliability
MTBF:
20000 Hour
Duty Cycle:
100000
Power Description
Power Source:
AC Supply
Input Voltage:
- 120 V AC
- 230 V AC
Operating Power Consumption:
200 W
Frequency:
60 Hz
Physical Characteristics
Form Factor:
Desktop
Product Color:
White
Height:
14.3"
Width:
27.6"
Depth:
14.9"
Weight (Approximate):
75 lb
Miscellaneous
Additional Information:
- Print direction (Graphics Mode): Unidirectional (bidirectional via software)
Character Sets:
- 11 character tables
- 13 international character sets
Paper Feed Methods:
- Dual push tractors/paper paths: Automatic back-out and loading
- Automatic paper thickness adjustment
- Automatic paper width detection
- Micro adjustment for top-of-form and tear-off mode
- Adjustable tractor feed
OPTIONAL interfaces (Not included):
- Twinax
- Coaxial
- Fast Ethernet
Paper Handling:
- Labels: 2.5 inch x 0.94 inch (minimum)
- Page length: 3.5 inch minimum for forms with labels
- Continuous forms size:
- Width: 3 - 16.5 inch
- Length: 3 - 17 inch
- Multi-part Forms:
- Front: 1 original + 9 copies
- Rear: 1 original + 6 copies
Certifications & Standards:
Energy star compliant
Platform Supported:
PC
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0010343533615, 0010343853614
UPC:
010343533615, 010343853614
EAN:
0010343533615, 0010343853614
UNSPSC:
43212102
