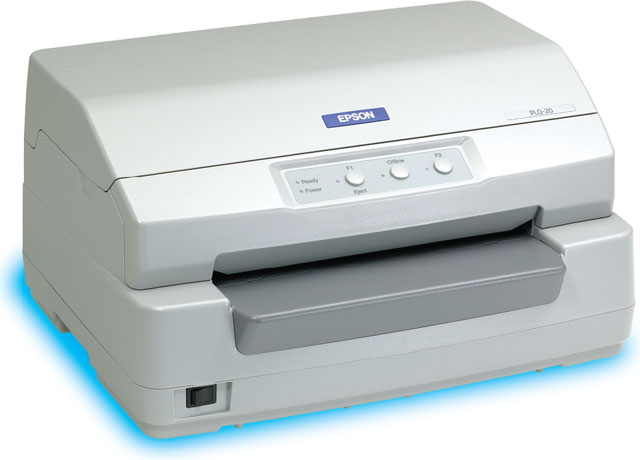

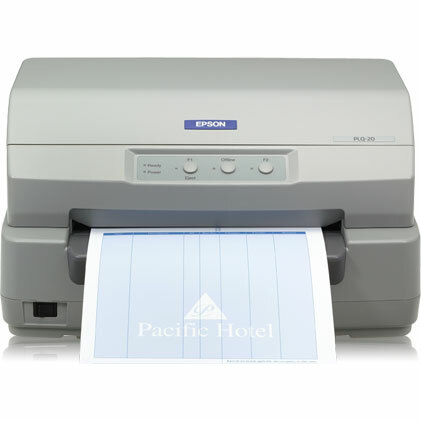

The Epson PLQ-20 Passbook Printer is an exceptional choice for banking and commercial applications, engineered for high-speed, quality printing of passbooks and other specialized documents. With impressive print speeds of up to 480 characters per second and the capability to process passbooks up to 2.6mm thick, this reliable 24-pin impact printer guarantees efficient performance and longevity. Designed for seamless system integration, it features multiple connectivity options including Parallel, Serial, and USB interfaces, making setup simple and straightforward for various IT environments. The PLQ-20’s advanced paper handling capabilities ensure accurate print placement, while its compact form allows it to fit into spaces with limited counter room. Key features:
High print speeds of up to 480 cps for quick document throughput
Handles passbooks up to 2.6mm thick with ease
Flexible connectivity with Parallel, and USB options
Automatic forms alignment for precise print placement
Space-saving design that fits snugly against walls for easy access
Durable construction with a mean time between failure of 10,000 hours
Specifications:
Print method: 24 pin, impact dot matrix
Print speed:
High Speed Draft: 480/432 cps at 10/12 cpi
NLQ: 180 cps at 10 cpi
LQ: 120 cps at 10 cpi
Interfaces: Bi-directional parallel, USB (2.0 compatible)
Paper handling: Automatic platen gap and sheet alignment
Dimensions: 384mm x 280mm x 203mm (W x D x H)
Weight: 7.7 Kg (17 lbs)
Power consumption: Approx. 60W (8W in sleep mode)
Warranty: Standard 1 year, optional extension to 3 years
Epson C11C560301 Line Printer Overview
The 24-pin Epson PLQ-20 impact printer is fast and versatile, with print speeds up to 480 cps, high paper throughput and the ability to handle passbooks up to 2.6mm thick. It also features convenient automatic forms alignment and automatic print gap adjustment to ensure fast, trouble-free printing of passbooks and other specialized banking documents.
The Epson C11C560301 Line Printer is also known as
EPS-C11C560301
or C11C560301.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
