Powering business productivity with superior performance and reliability.

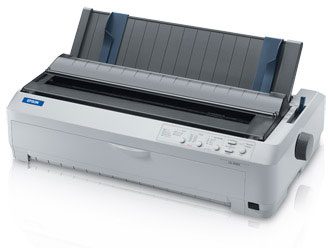

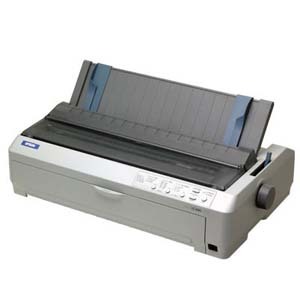

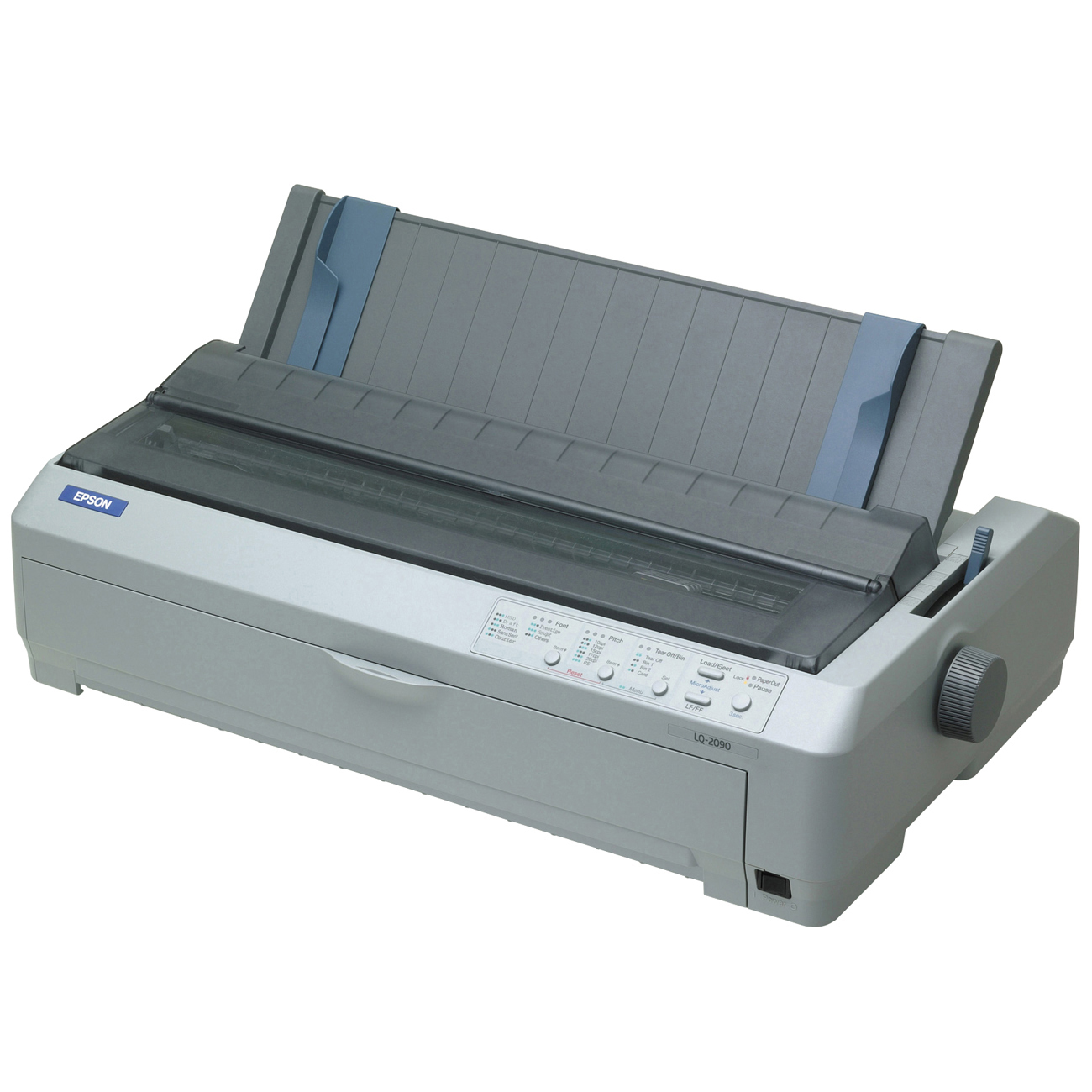

With powerful 24-pin technology, the wide-format Epson LQ-2090 deliver precision text and graphics, plus rugged reliability for critical print requirements. Offering print speeds of up to 529 cps and seamless integration into existing printing environments, this robust performer is sure to increase productivity. With versatile 5-part forms printing, multiple paper loading options, and a durable, long-lasting ribbon, the LQ-2090 races through tickets, purchase orders, invoices and more. Perfect for point-of-sale, manufacturing, and production environments, this printer boasts an amazing 20,000 POH MTBF rating and a 400 million character printhead life. The LQ-2090 features an easy-to-use control panel that makes changing settings a snap, while convenient configuration software facilitates simple setup via a PC.
- Product Type: Dot Matrix Printer
- Product Series: LQ
- Brand Name: Epson
- Manufacturer: Epson Corporation
- Product Model: LQ-2090
- Product Name: LQ-2090 Dot Matrix Printer
- Maximum Mono Print Speed (cps): 529 cps
- Number of Columns: 136
- Number of Pins: 24-pin
- Height: 6.3"
- Width: 23.2"
- Depth: 13.8"
- Weight (Approximate): 21 lb
- USB: Yes
- Parallel Port: Yes
- Platform Supported: PC
- Additional Information:
- Type-B slot for optional interface cards
- MTBF: 20,000 POH (25% duty cycle)
- Ribbon life: 8 million characters at 48 dots/character
- Paper Feed Mechanism:
- Feeding method:
- Friction feed (front, rear)
- Push tractor (front, rear)
- Pull tractor (front, bottom, rear)
- Push and pull tractor* (front, rear)
- Cut sheet feeder (optional)
- Roll paper holder (optional)
- Paper Feed Speed:
- 45 millisecond per 1/6"
- 5" per second continuous feed
- Paper Path:
- Manual insertion: Front or top in, top out
- Cut sheet feeder: Top in, top out
- Tractor: Front, rear or bottom in, top out
- Resident Bitmapped Fonts:
- Epson Draft 10, 12, 15 cpi
- Epson Roman 10, 12, 15 cpi proportional
- Epson San Serif 10, 12, 15 cpi proportional
- Epson Courier 10, 12, 15 cpi
- Epson Prestige 10, 12, 15 cpi
- Epson Script 10 cpi
- Epson OCRB 10 cpi
- Epson Script C proportional
- Epson Orator 10 cpi
- Epson Orator S 10 cpi
- Barcode Fonts:
- Interleaved 2 of 5
- Code 39
- Code 128
- Codabar (NW-7)
- Industrial 2 of 5
- Matrix 2 of 5
- Scalable Fonts:
- Epson Roman 10.5 pt; 8-32 pt every 2 pt
- Epson Sans Serif 10.5 pt; 8-32 pt every 2 pt
- Epson Roman T 10.5 pt; 8-32 pt every 2 pt
- Epson Sans Serif H 10.5 pt; 8-32 pt every 2 pt
- 32 horizontal tabs
- Line spacing in 1/6" or programmable (minimum 1/360" increments)
- Skip over perforations in lines
- Page length in lines or inches
- Paper Handling:
- Continuous multipart
- Original plus 4 carbonless copies
- Maximum thickness: 0.018"
- Single sheets: 3.9" to 16.5"
- Continuous: 4.0" to 16.0"
- Cut-sheet feeder: 7.2" to 16.5"
- Single sheets: 3.9" to 14.3"
- Continuous: 4.0" to 22.0"
- Cut-sheet feeder: 10.1" to 14.0"
- * Additional tractor unit required
- Characters per Line:
- 136 characters @ 10 cpi
Media Types & Handling
- Media Type:
- Continuous Form
- Roll Paper
- Single Sheet
- Cut Sheet
- Media Size:
- Envelope No. 10
- Envelope No. 6
- Input Voltage: 110 V AC
- Power Source: AC Supply
