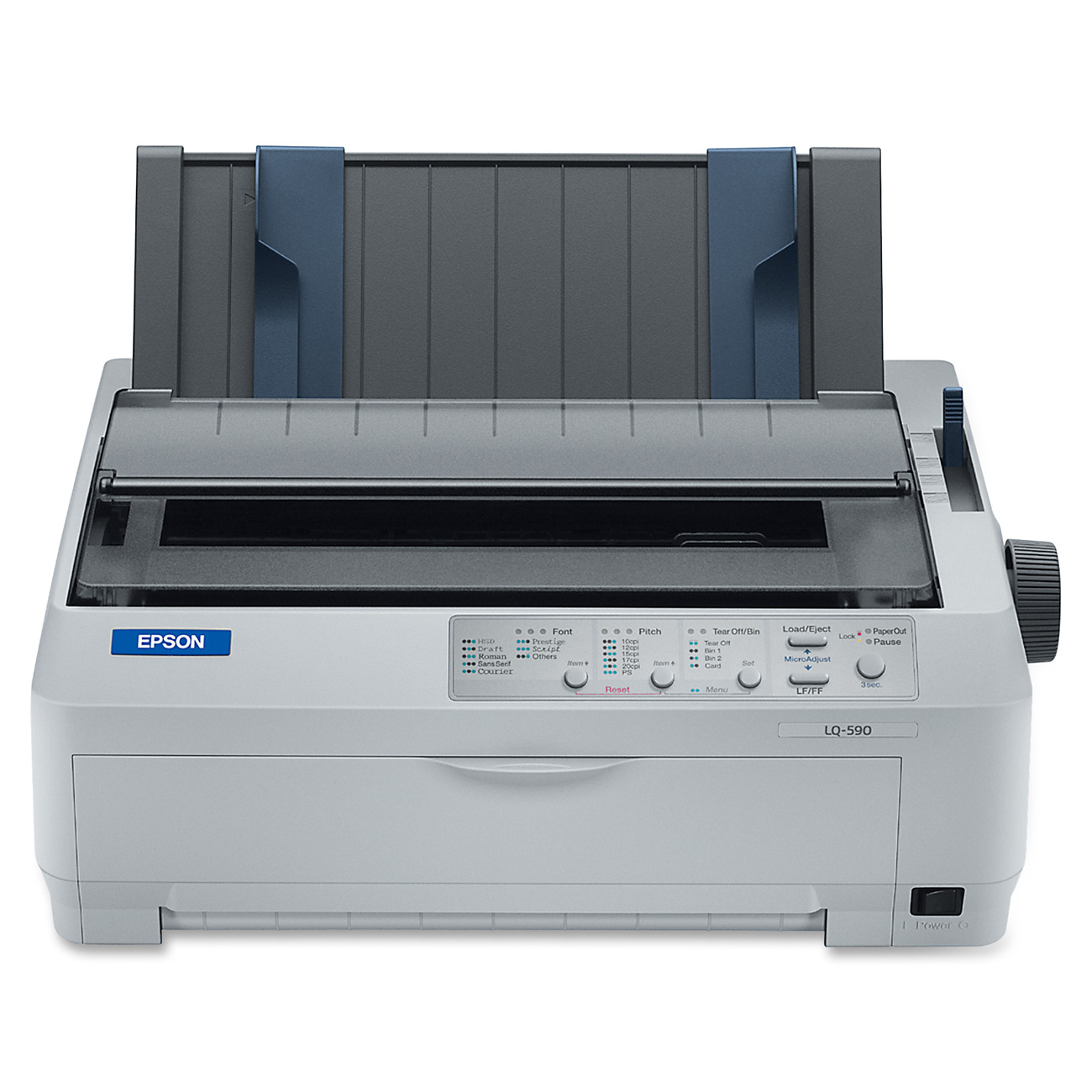

Epson C11C558001 Line Printer

The Epson C11C558001 Line Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Epson LQ-590 - Epson LQ-590 24-pin Dot Matrix Printer - 80 Column - 529 cps Mono - USB - Parallel
  • Quality color printing with 128KB standard memory and 24-pin printing
  • Print size ranges from 3.9" to 10.1"
  • Prints up to 529
  • Connect the printer to your computer with the USB 2.0 or Type B Parallel connector
  • Dimensions: 16.3"W x 13.8"D x 6.3"H
Read More

Need a different version? See all Epson LQ-590 Line Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Epson C11C558001 Line Printer
Epson C11C558001 Line Printer Epson C11C558001 Line Printer
Epson C11C558001 Line Printer
Epson C11C558001 Line Printer
Full specifications (PDF)

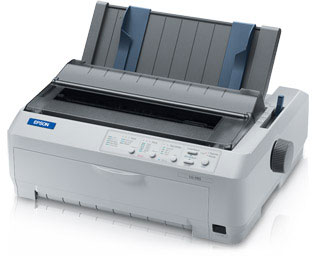

Epson LQ-590 Line Printer Model Overview
With powerful 24-pin technology, the Epson LQ-590 deliver precision text and graphics, plus rugged reliability for critical print requirements. Offering print speeds of up to 529 cps and seamless integration into existing printing environments, this robust performer is sure to increase productivity. With versatile 5-part forms printing, multiple paper loading options, and a durable, long-lasting ribbon, the LQ-590 races through tickets, purchase orders, invoices and more. Perfect for point-of-sale, manufacturing, and production environments, this printer boasts an amazing 20,000 POH MTBF rating and a 400 million character print head life. The LQ-590 features an easy-to-use control panel that makes changing settings a snap, while convenient configuration software facilitates simple setup via a PC.
Epson C11C558001 Line Printer Overview

LQ-590 Impact Printer uses 24-pin technology to deliver precision text and graphics, plus rugged reliability for critical print requirements. Offers print speeds of up to 529 characters per second, 20,000 POH MTBF rating, a 400 million-character printhead life, easy integration with existing printing formats, versatile five-part forms printing, multiple paper loading options, and a durable, long-lasting ribbon. Ideal for point-of-sale, manufacturing, and production environments. Printer provides Parallel and USB connections, and a slot for optional interface cards, including high-speed Ethernet, for greater compatibility with practically any system. Paper feed rate is 45 milliseconds per 1/6" and 5.0" per second continuous feed. Paper size ranges from 3.9" to 10.1".

Full specifications (PDF)
Technical Information
Maximum Mono Print Speed (cps):
529
Number of Pins:
24-pin
Number of Columns:
80
Memory
Standard Memory:
128 KB
Interfaces/Ports
Parallel Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Single Sheet
  • Envelope
  • Label
  • Cut Sheet
  • Roll Paper
Media Size:
  • Envelope No. 10
  • Envelope No. 6
Fonts & Emulation
Language Emulation:
  • Epson ESC/P2
  • IBM PPDS
Reliability
MTBF:
20000 Hour
Power Description
Power Source:
AC Supply
Input Voltage:
110 V AC
Physical Characteristics
Height:
6.3"
Width:
16.3"
Depth:
13.8"
Weight (Approximate):
15.60 lb
Miscellaneous
Additional Information:
  • Rated voltage: 120V
  • Rated frequency range: 50 to 60 Hz
  • Total print volume: 40 million lines (not including printhead)

Resident Bitmapped Fonts:

  • Epson Draft 10, 12, 15 cpi
  • Epson Roman 10, 12, 15 cpi proportional
  • Epson Sans Serif 10, 12, 15 cpi proportional
  • Epson Courier 10, 12, 15 cpi
  • Epson Prestige 10, 12, 15 cpi
  • Epson Script 10 cpi
  • Epson OCRB 10 cpi
  • Epson Script C Proportional
  • Epson Orator 10 cpi
  • Epson Orator-S 10 cpi

Bar Code Fonts:

  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • UPC-A
  • UPC-E
  • Code 39
  • Code 128
  • POSTNET
  • Codabar (NW-7)
  • Industrial 2 of 5
  • Matrix 2 of 5

Scalable Fonts:

  • Epson Roman 10.5 pt; 8-32 pt every 2 pt
  • Epson Sans Serif 10.5 pt; 8-32 pt every 2 pt
  • Epson Roman T 10.5 pt; 8-32 pt every 2 pt
  • Epson Sans Serif H 10.5 pt; 8-32 pt every 2 pt

Character Sets:

  • 96 ASCII characters
  • 14 international character sets and 1 legal character set
  • 128 user-defined characters
  • Extended IBM style graphic characters
  • 5 code pages

Formatting:

  • 32 horizontal tabs
  • Line spacing in 1/6" or programmable (minimum 1/360" increments)
  • Skip over perforations in lines
  • Page length in lines or inches

Paper Handling:

  • Forms:
  • Continuous Multipart, original plus 4 carbonless copies
  • Maximum Thickness: .018"
  • Width:
  • Single sheets: 3.9" to 10.1"
  • Continuous: 4.0" to 10.0"
  • Cut Sheet Feeder: 7.2" to 8.5"
  • Length:
  • Single sheets: 3.9" to 14.3"
  • Continuous: 4.0" to 22.0"
  • Cut-sheet Feeder: 10.1" to 14.0"
  • Paper Feed Speed:
  • 45 millisecond per 1/6"
  • 5" per second continuous feed
  • Paper Path:
  • Manual Insertion: Front or top in, top out
  • Cut sheet feeder: Top in, top out
  • Tractor: Front, rear or bottom in, top out

Software Drivers:

  • Windows 95
  • Windows 98
  • Windows 2000
  • Windows Me
  • Windows XP
  • Windows NT 4.0
Platform Supported:
PC
Recycled:
No
Assembly Required:
No
Country of Origin:
Indonesia
Item Numbers
GTIN: 0010343850040, 0190403129733, 0657379224997
UPC: 010343850040, 190403129733, 657379224997
EAN: 0010343850040, 0190403129733, 0657379224997
UNSPSC: 43212102
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Epson C11C558001 Line Printer is also known as EPS-C11C558001 or C11C558001.
