Epson C11C524001NT Line Printer

The Epson C11C524001NT Line Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Epson FX-890 - Epson FX-890N Dot Matrix Printer - 680 cps Mono - Parallel, USB

Speeds through multipart forms, reports, labels, and more at up to 680 cps
Offers an MTBF rating of 20,000 POH and a 400 million character print head life
Facilitates easy printer configuration using a newly designed control panel or Windows based Epson Remote Configuration Manager
Provides resident Epson, IBM® and Microline printer languages for increased compatibility
Includes standard Parallel and USB connections, plus an internal 10 / 100 Base-TX Ethernet Print Server
Ensures a lower cost per page, and reduces the need for frequent user intervention
Provides four convenient paper paths to accommodate cut sheet paper and continuous forms up to 7parts thick
Includes access to Epson's superior technical support

Need a different version? See all Epson FX-890 Line Printers

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

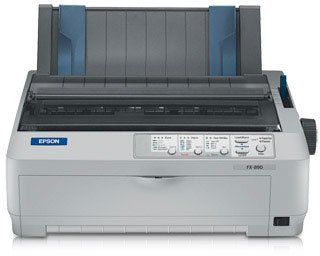

Epson FX-890 Line Printer Model Overview

A full-featured, high-value performer, the Epson FX-890 offers the durability and ease of use required for critical daily print requirements. This 9-pin, narrow-carriage workhorse boasts an MTBF rating of 20,000 power-on hours (POH) and speeds of up to 680 cps. Engineered for seamless integration into virtually any system, it provides standard Parallel, USB, and additional connectivity options. And, it includes Epson Remote Configuration Manager software for easy printer setup and simple setting selections via most Windows operating systems. Ideal for rugged environments, this robust printer is the perfect drop-in replacement for the Epson FX-880/880+/980 or Okidata Microline 320/320 Turbo.

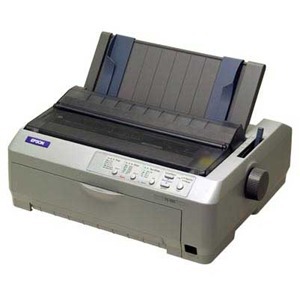

Epson C11C524001NT Line Printer Overview

A full-featured, high-value performer, the Epson FX-890N offers the durability and ease of use required for critical daily print requirements. Engineered for seamless integration into virtually any system, it is complete with a new control panel and other intuitive functions.

Detailed Specs

Full specifications (PDF)

Technical Information

Print Color Capability:

Monochrome

Maximum Mono Print Speed (cps):

680

Number of Pins:

9-pin

Number of Columns:

160

Memory

Standard Memory:

128 KB

Interfaces/Ports

Parallel Port:

Yes

USB:

Yes

USB Standard:

USB 1.1

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Continuous Form
Envelope
Label
Plain Paper
Roll Paper

Media Size:

Envelope No. 6
Envelope No. 10
Envelope No. 6 - 6.50" x 3.60"
9.50" x 4.10"
Custom Size
2.50" x 0.94"

Media Handling:

Friction Feed - Front
Pull Tractor - Front
Pull Tractor - Rear
Push Tractor - Front
Push Tractor - Rear
Pull Tractor - Bottom
Friction Feed - Rear

Maximum Print Size:

Envelope No. 10 - 9.50" x 4.10"

Fonts & Emulation

Language Emulation:

Epson ESC/P
IBM PPDS
Oki Microline

Software

Software Included:

Epson Remote Configuration Manager

Reliability

MTBF:

20000 Hour

Power Description

Power Source:

AC Supply

Input Voltage:

120 V AC

Operating Power Consumption:

53 W

Sleep-Mode Power Consumption:

4.50 W

Frequency:

60.50 Hz

Physical Characteristics

Form Factor:

Desktop

Product Color:

Light Gray

Height:

6.6"

Width:

16.3"

Depth:

13.8"

Weight (Approximate):

16.80 lb

Miscellaneous

Package Contents:

FX-890N Dot Matrix Printer
Software CD

Additional Information:

Paper Feed Mechanism:

Friction feed (front, rear)
Push tractor (front, rear)
Pull tractor (front, bottom, rear)
Push and pull tractor*(front, rear)
Cut-sheet feeder (optional)
Roll paper holder (optional)
*Additional tractor unit required

Paper Path:

Manual insertion: Front or rear in, top out
Cut sheet feeder: Top in, top out
Tractor: Front rear or bottom in, top out
Pull push tractor: Front or rear in, top out

Formatting:

1/6-inch or programmable in 1/432-inch increments
Line Spacing: 6 lines per inch default
(8 lpi option available)

Character Sets:

13 character tables
13 international character sets

Resident Bitmapped Fonts:

Ultra Speed Draft 10, 12 cpi
High Speed Draft 10, 12, 15, 17, 20 cpi
Draft 10, 20 cpi
NLQ (Roman/Sans Serif) 10, 20 cpi, proportional

Paper Feed Speed:

62 millisecond per 1/6"

Print Speed:

680 cps Ultra Speed Draft (12 cpi)
566 cps Ultra Speed Draft (10 cpi)

Total print volume:

52 million lines (except print head)

Paper Handling:

Forms: Continuous multipart, original plus 5 carbonless copies, 1 + 6 copies with pull tractor, maximum thickness .018"
Single sheets: (3.9" to 10.1") Width, (3.9" to 14.3") Length
Continuous: (4.0" to 10.0") Width, (4.0" to 22.0") Length
Cut-sheet feeder: (7.2" to 8.5") Width, (10.1" to 14.0") Length

System Requirements:

PC:

Windows 95
Windows 98
Windows 2000
Windows ME
Windows NT 4.0
Windows XP

Certifications & Standards:

ISO 10561

Platform Supported:

Energy Star:

Yes

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0010343850019

UPC: 010343850019

EAN: 0010343850019

UNSPSC: 43212102

Reviews

Q&A

Ribbons

Questions? Get help from a
Printer Expert!

The Epson C11C524001NT Line Printer is also known as EPS-C11C524001NT or C11C524001NT.
