Epson C11C524001 Line Printer

Epson C11CF37201 Line Printer A newer version of this item is available.
It is replaced by the Epson C11CF37201 Line Printer.
Epson FX-890 - Epson FX-890 9-pin Dot Matrix Printer - 160 Column - 680 cps Mono - 240 x 144 dpi - USB - Parallel
  • Dot Matrix color printer with maximum 240 x 144 dpi resolution and 9-pin printing
  • Print size ranges from 3.9" to 14.1"
  • Prints up to 680
  • Connect the printer to your computer with the USB 2.0 or Type B Parallel connector
  • Dimensions: 16.3"W x 13.8"D x 6.6"H
Read More

Need a different version? See all Epson FX-890 Line Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Epson C11C524001 Line Printer
Epson C11C524001 Line Printer Epson C11C524001 Line Printer
Epson C11C524001 Line Printer
Epson C11C524001 Line Printer
Full specifications (PDF)

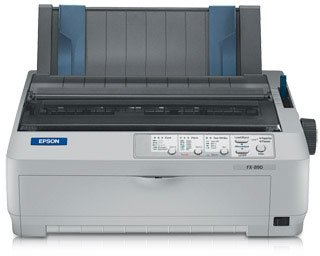

Epson FX-890 Line Printer Model Overview
A full-featured, high-value performer, the Epson FX-890 offers the durability and ease of use required for critical daily print requirements. This 9-pin, narrow-carriage workhorse boasts an MTBF rating of 20,000 power-on hours (POH) and speeds of up to 680 cps. Engineered for seamless integration into virtually any system, it provides standard Parallel, USB, and additional connectivity options. And, it includes Epson Remote Configuration Manager software for easy printer setup and simple setting selections via most Windows operating systems. Ideal for rugged environments, this robust printer is the perfect drop-in replacement for the Epson FX-880/880+/980 or Okidata Microline 320/320 Turbo.
Epson C11C524001 Line Printer Overview

FX-890 dot matrix printer offers ultra-fast 9-pin printing with an MTBF rating of 20,000 power-on hours (POH) and speeds of up to 680 characters per second. Draft speed is 419 characters per second. Near letter-quality speed is 104 characters per second. Engineered for seamless integration into virtually any system, it provides standard Parallel, USB, and additional connectivity options. Includes Epson Remote Configuration Manager software for easy printer setup and simple setting selections via most Windows operating systems. Control panel features a lockout mode and other intuitive functions. Dot matrix printer offers 7 maximum form parts, 128K input buffer, printhead life of 400 million characters at 14 dots per character. Paper feed rate is 62 milliseconds per 1/6" and 5.0" per second continuous feed. Paper size ranges from 3.9" to 10.1".

Full specifications (PDF)
Technical Information
Maximum Mono Print Speed (cps):
680
Maximum Print Resolution (dpi):
240 x 144
Number of Pins:
9-pin
Number of Columns:
160
Interfaces/Ports
Parallel Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Envelope
  • Label
  • Plain Paper
  • Roll Paper
Media Size:
  • Envelope No. 6
  • Envelope No. 10
Fonts & Emulation
Language Emulation:
  • Epson ESC/P
  • IBM PPDS
  • Oki Microline
Reliability
MTBF:
20000 Hour
Power Description
Power Source:
AC Supply
Input Voltage:
110 V AC
Frequency:
60.50 Hz
Physical Characteristics
Height:
6.6"
Width:
16.3"
Depth:
13.8"
Weight (Approximate):
16.80 lb
Miscellaneous
Additional Information:
Paper Feed Mechanism:
  • Friction feed (front, rear)
  • Push tractor (front, rear)
  • Pull tractor (front, bottom, rear)
  • Push and pull tractor*(front, rear)
  • Cut-sheet feeder (optional)
  • Roll paper holder (optional)
  • *Additional tractor unit required

    Paper Path:
  • Manual insertion: Front or rear in, top out
  • Cut sheet feeder: Top in, top out
  • Tractor: Front rear or bottom in, top out
  • Pull push tractor: Front or rear in, top out
  • Formatting:
  • 1/6-inch or programmable in 1/432-inch increments
  • Line Spacing: 6 lines per inch default
  • (8 lpi option available) Character Sets:
  • 13 character tables
  • 13 international character sets
  • Resident Bitmapped Fonts:
  • Ultra Speed Draft 10, 12 cpi
  • High Speed Draft 10, 12, 15, 17, 20 cpi
  • Draft 10, 20 cpi
  • NLQ (Roman/Sans Serif) 10, 20 cpi, proportional
  • Paper Feed Speed:
  • 62 millisecond per 1/6"
  • Print Speed:
  • 680 cps Ultra Speed Draft (12 cpi)
  • 566 cps Ultra Speed Draft (10 cpi)
  • Total print volume:
  • 52 million lines (except print head)
  • Paper Handling:
  • Forms: Continuous multipart, original plus 5 carbonless copies, 1 + 6 copies with pull tractor, maximum thickness .018"
  • Single sheets: (3.9" to 10.1") Width, (3.9" to 14.3") Length
  • Continuous: (4.0" to 10.0") Width, (4.0" to 22.0") Length
  • Cut-sheet feeder: (7.2" to 8.5") Width, (10.1" to 14.0") Length
System Requirements:
PC:
  • Windows 95
  • Windows 98
  • Windows 2000
  • Windows ME
  • Windows NT 4.0
  • Windows XP
Certifications & Standards:

10561

Platform Supported:
PC
Recycled:
No
Post-consumer-waste%:
0%
Assembly Required:
No
Country of Origin:
Indonesia
Item Numbers
GTIN: 0010343846739, 0163120852635, 0801096860789
UPC: 010343846739, 163120852635, 801096860789
EAN: 0010343846739, 0163120852635, 0801096860789
UNSPSC: 43212102
