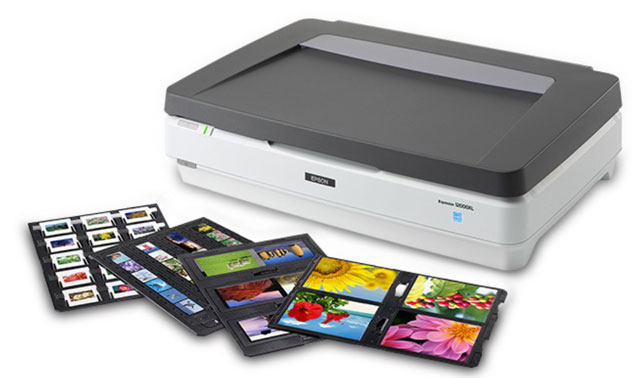

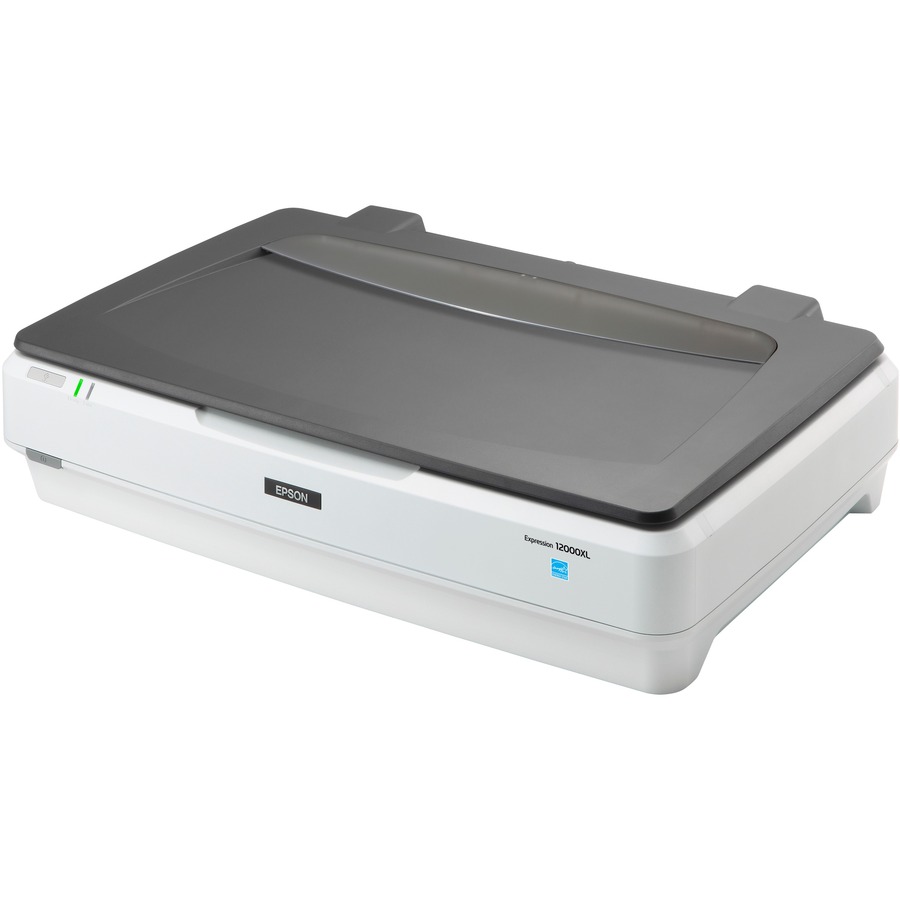

The versatile large-format scanner for professional photographers.
Featuring a high-performance Transparency Unit for slide and negative batch scanning, the Epson Expression 12000XL-PH is designed for professional photographers. Offering 2400 x 4800 dpi resolution, Micro Step Drive™ technology and a 3.8 Dmax for extraordinary image quality, this versatile scanner also supports large-format scanning up to 12.2" x 17.2". Its exclusive ColorTrue™ II imaging system combines superior processing, a fast warm-up LED lamp, and Epson MatrixCCD® technology for enhanced colors and pinpoint registration. Easy Photo Fix® technology offers one-touch restoration for faded color photos and negatives - plus automatic dust removal and grain reduction. And, LaserSoft Imaging® SilverFast®® Ai software is also included.
Large-format scanning up to 12.2" x 17.2"
2400 x 4800 dpi resolution
Superior image processing and fast warm-up LED lamp
One-touch color restoration, dust and grain removal
Transparency Unit for slide/negative batch scanning
What is the scanning speed of the Epson 12000XL-PH?
The Epson 12000XL-PH offers scanning speeds of 25 ppm in simplex mode and 50 ipm in duplex mode at 300 dpi for full color, grayscale, and monochrome documents. This sheet-fed, one-pass duplex scanner uses ReadyScan LED technology to deliver consistent performance across all color modes.
What document sizes can the Epson 12000XL-PH handle?
The automatic document feeder supports a minimum document size of 2.1" x 2.9" and a maximum size of 8.5" x 36", with paper weight ranging from 45 to 200 g/m². The 75-sheet capacity allows for efficient batch scanning of standard business documents.
What optical resolution does the Epson 12000XL-PH provide?
The Epson 12000XL-PH delivers a native optical resolution of 600 dpi with output resolution options ranging from 75 to 600 dpi. It features a Color Epson Matrix CCD line sensor with effective pixels of 5,100 x 21,600 for high-quality document capture.
Is the Epson 12000XL-PH suitable for high-volume scanning environments?
Yes, the Epson 12000XL-PH is designed for demanding workflows with a daily duty cycle of 1,200 sheets and a roller assembly kit rated for 100,000 cycles. These specifications make it well-suited for warehouse and logistics operations requiring reliable, continuous scanning performance.

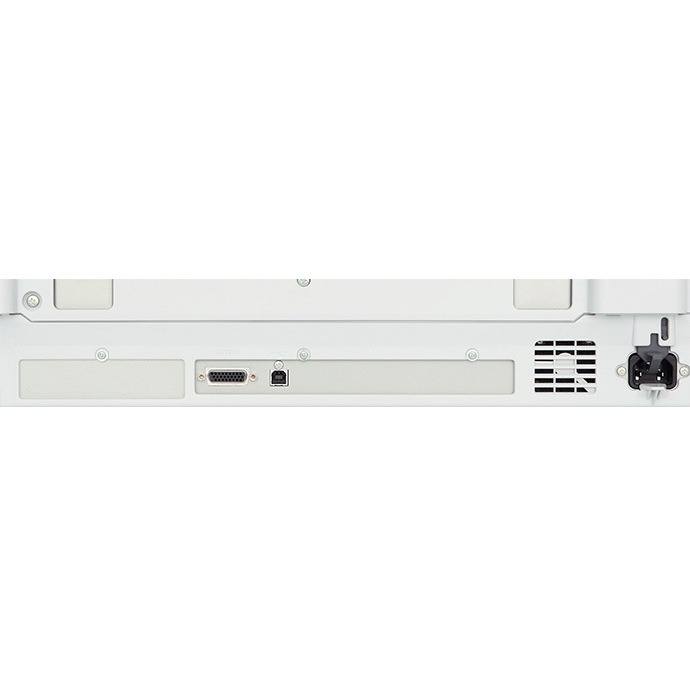

What connectivity options are available on the Epson 12000XL-PH?
The Epson 12000XL-PH connects via Hi-Speed USB 2.0 cable, providing direct integration with warehouse management and logistics systems. This wired connection ensures stable, high-speed data transfer for document imaging workflows.
What color depth and bit depth does the Epson 12000XL-PH support?
The Epson 12000XL-PH supports 48-bit internal/24-bit external color and grayscale scan modes, with 16-bit internal/8-bit external grayscale capability and 1-bit monochrome output. This range of color depths allows flexibility for different document types and archival requirements.
